2007 Chevrolet Uplander V6-3.9LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Module: Service and Repair

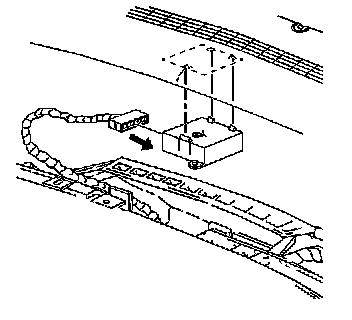

Remote Control Door Lock Receiver Replacement
Removal Procedure
1. Remove the instrument panel (I/P) upper trim.
2. Disengage the retaining tabs in order to remove the door lock receiver from the I/P upper trim.
3. Disconnect the electrical connector from the door lock receiver.
Installation Procedure
1. Connect the electrical connector to the door lock receiver.
2. Engage the retaining tabs in order to install the door lock receiver to the I/P upper trim.
3. Install the I/P upper trim.
4. Program transmitter to the new receiver.
