2007 Chevrolet Uplander Base, 3.9 WFACTORY OEM SERVICE PROCEDURE

Inflatable Restraint I/P Module Connector End View C2

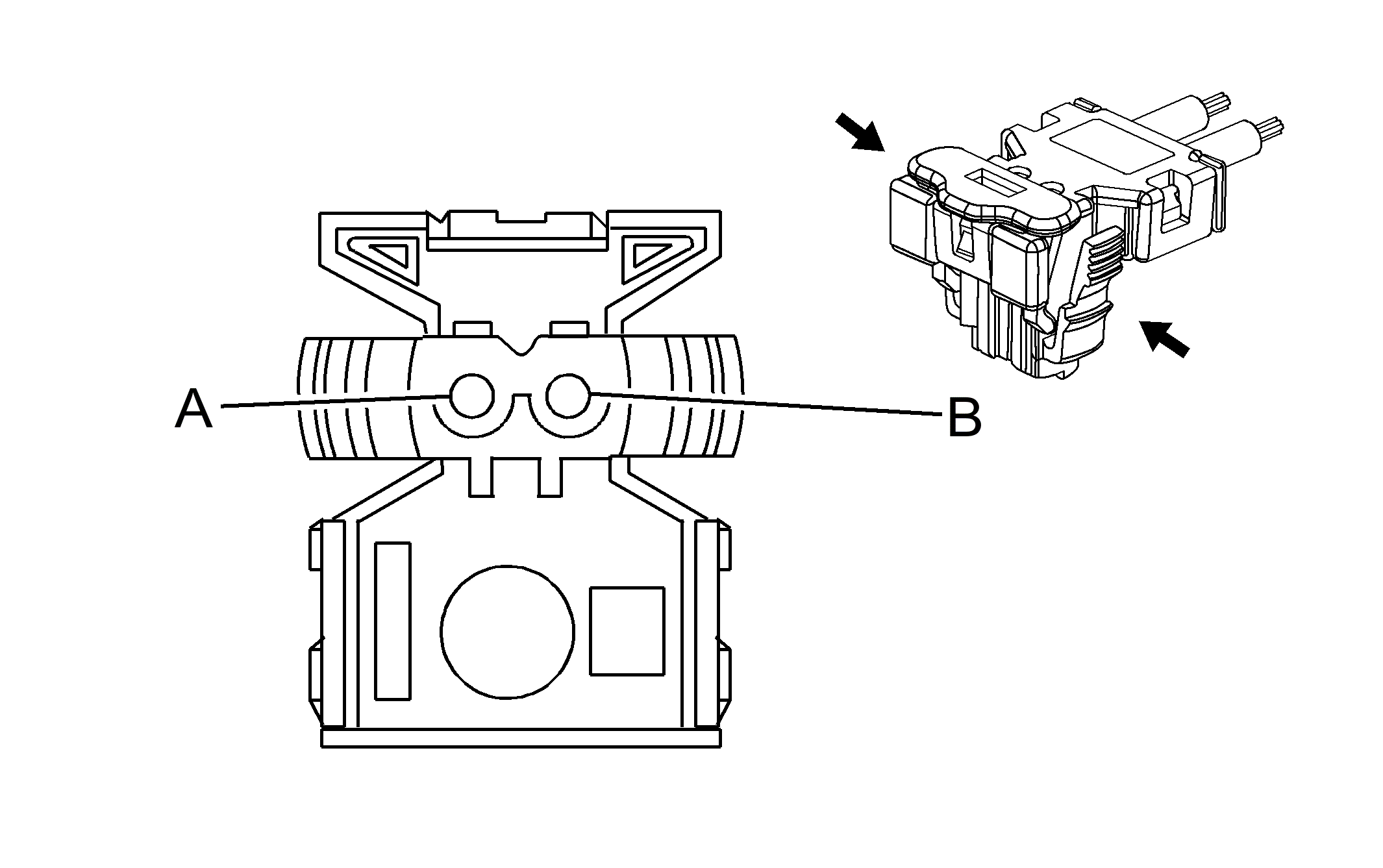

Fig 1: I/P Module C2 Connector End View
GM966368Courtesy of GENERAL MOTORS CORP.
Connector Part Information

Connector Part Information
  • OEM: 54550271
  • Service: See Catalog
  • Description: 2-Way F ABX-3 Code G (WH)
Terminal Part Information
  • Terminal: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
Connector Terminal Identification

Pin Wire Color Circuit No. Function
A GY 3027 I/P Module Stage 2 - High Control
B PU 3026 I/P Module Stage 2 - Low Control
