2007 Chevrolet Uplander Base, 3.9 WFACTORY OEM SERVICE PROCEDURE

Heated Seat Relay Connector End View - Driver

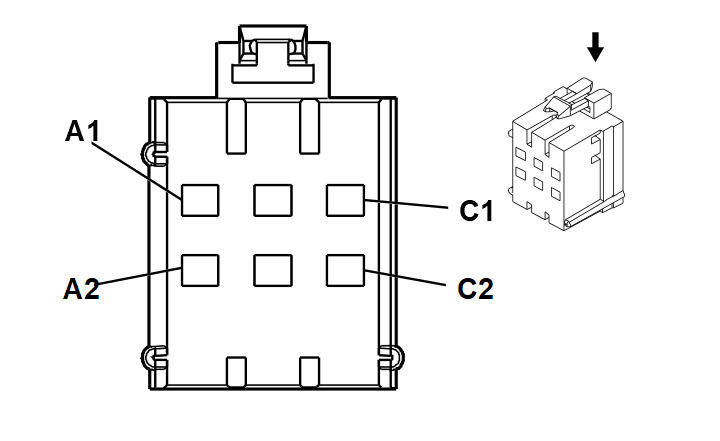

Fig 1: Heated Seat Relay Connector End View (Driver)

Courtesy of GENERAL MOTORS CORP.

Connector Part Information

OEM: 12110541
Service: 12110541
Description: 6-Way F Metri-Pack 280 Series Flexlock (BK)

Terminal Part Information

Terminal: 12110844/Tray 4
Core/Insulation Crimp: Pins A1: E/A, Pins A2, C1: C/A, Pins C2: E/C
Release Tool/Test Probe: 15315247/J-35616-4A

Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A1	BK	650	Ground
A2	RD/WH	1440	Battery Positive Voltage
B1-B2	-	-	Not Used
C1	PK	2077	Driver Heated Seat Element Supply Voltage
C2	PU	2477	Driver Heated Seat Relay Control
