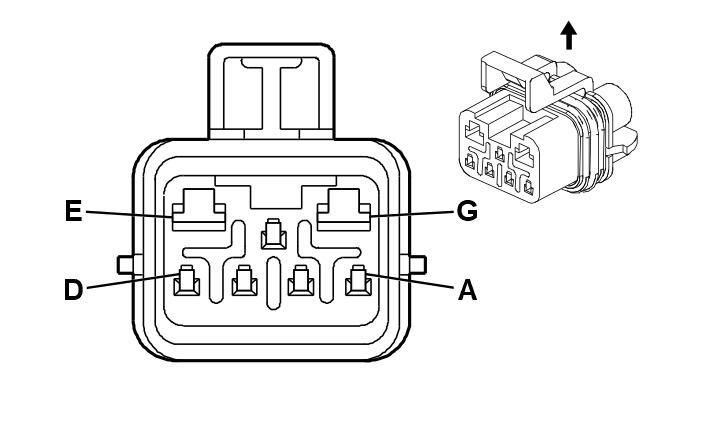

Automatic Level Control (ALC) Compressor Connector End View (G67)
Connector Part Information
Connector Part Information
|
Terminal Part Information
|
Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | RD/WH | 140 | Battery Positive Voltage |
| B | WH | 320 | Automatic Level Control Exhaust Solenoid Control |
| C | RD/WH | 140 | Battery Positive Voltage |
| D | YE | 321 | Automatic Level Control Relay Control |
| E | RD/WH | 140 | Battery Positive Voltage |
| F | - | - | Not Used |
| G | BK | 350 | Ground |
