2007 Chevrolet TrailBlazer 4WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor Replacement
Fuel Level Sensor Replacement
Removal Procedure
1. Remove the fuel sender assembly.
2. Disconnect the fuel pump electrical connector.
3. Remove the retaining clip from the fuel level sensor connector.
4. Disconnect the electrical connector from under the fuel sender cover.
5. Remove the sensor retaining clip.

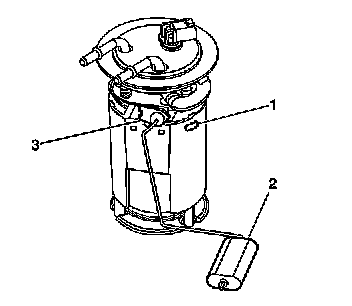

6. Squeeze the locking tangs and remove the fuel level sensor (3).
Installation Procedure
1. Install the fuel level sensor (3).
2. Install the sensor retaining clip.
3. Connect the electrical connector to the fuel level sensor.
4. Install the retaining clip to the fuel level sensor electrical connector.
5. Connect the fuel pump electrical connector.
6. Install the fuel sender assembly.
