2007 Chevrolet TrailBlazer 4WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC: Locations
HVAC Component Views

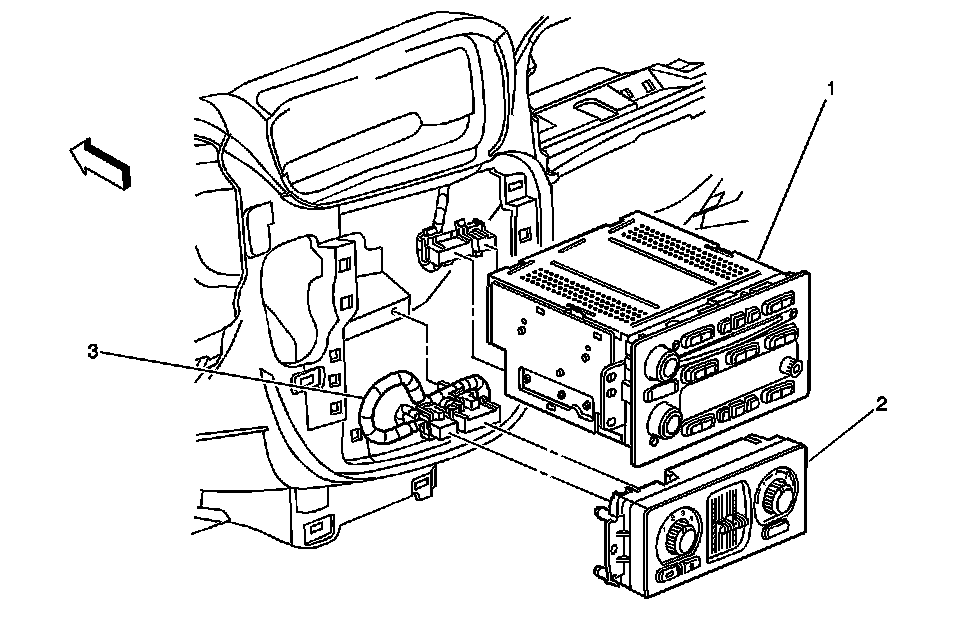

Instrument Panel, Center
1 - Radio
2 - HVAC Control Module
3 - I/P Harness

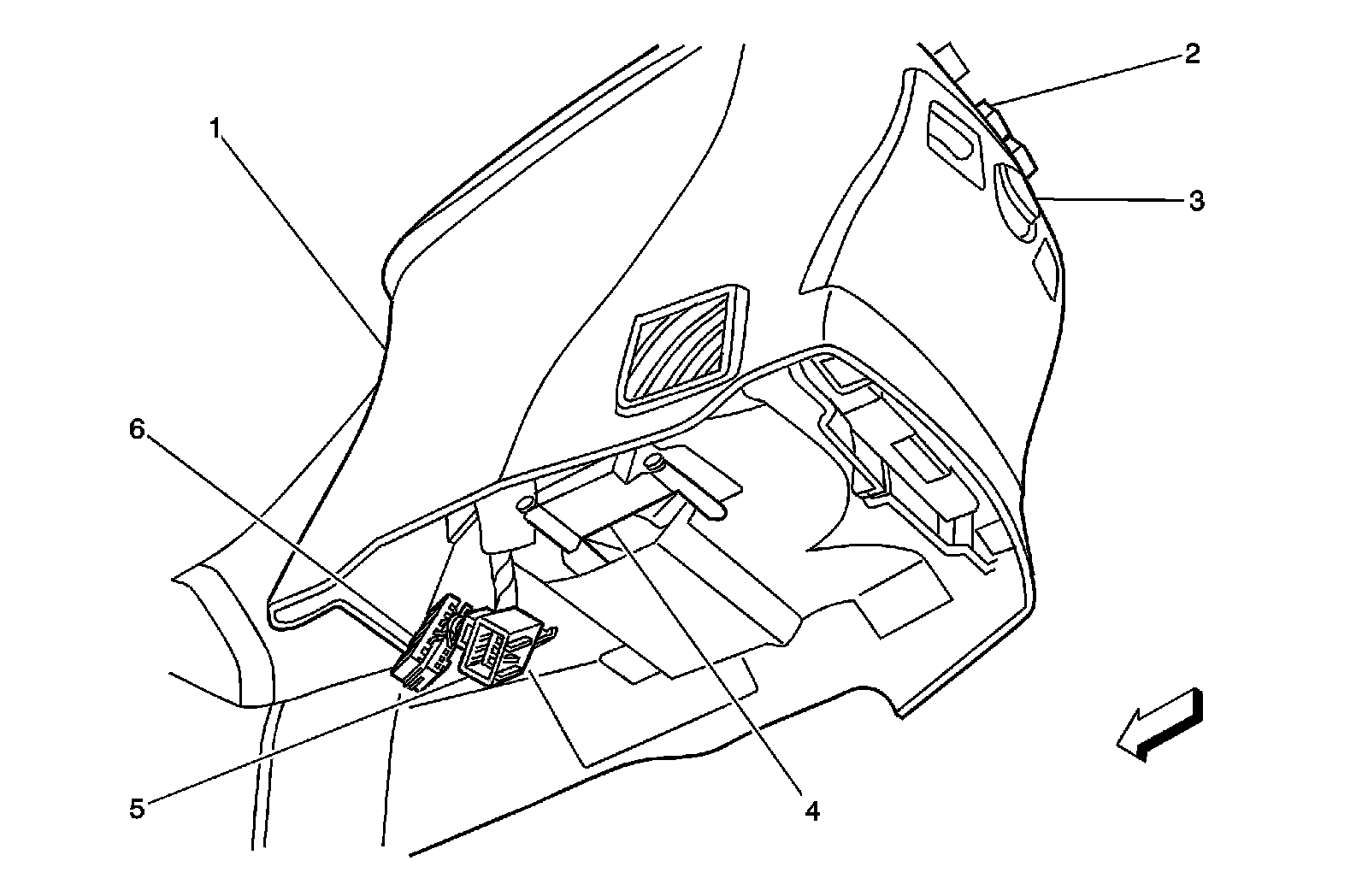

Lower Console
1 - Lower Console
2 - HVAC Control Module - Auxiliary
3 - Auxiliary Power Outlet - Console
4 - Console Mode Actuator - Auxiliary
5 - C309
6 - C307
