2007 Chevrolet Tahoe 4.8 CFACTORY OEM SERVICE PROCEDURE

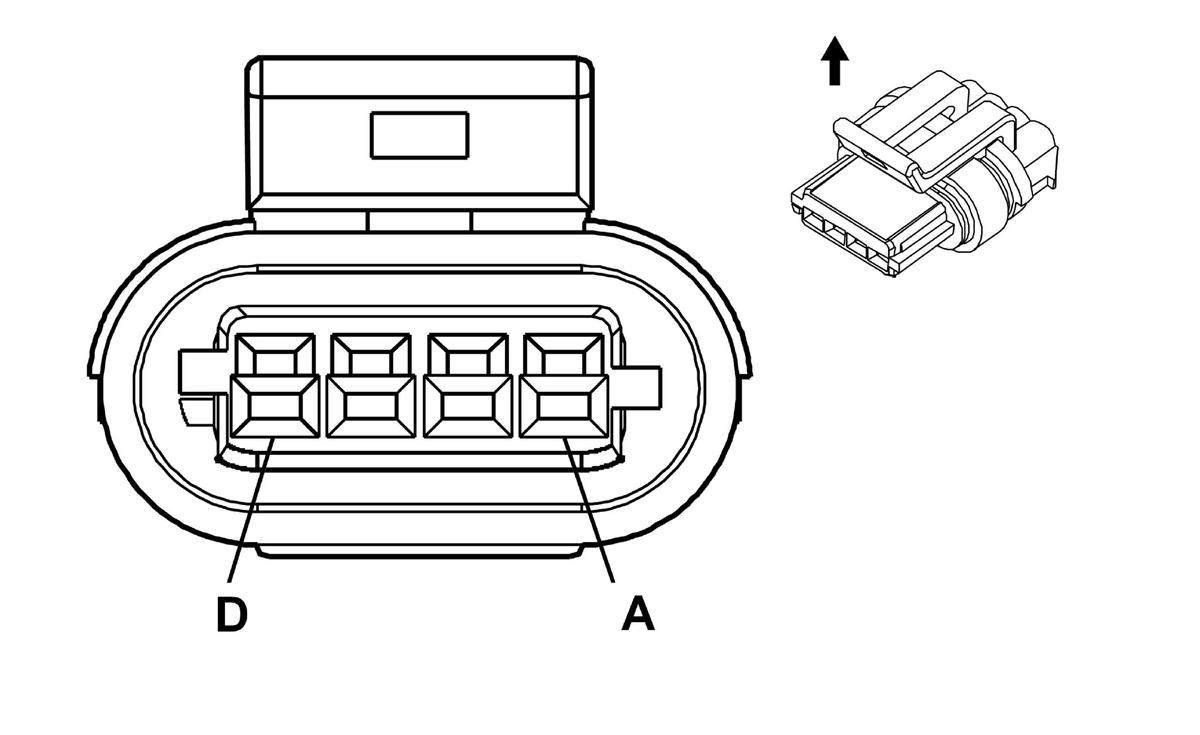

Ignition Coil 8 Connector End View
Ignition Coil 8 Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Ignition Coil 8 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | BK | 151 | Ground |
| B | BN | 2129 | Low Reference |
| C | PU | 2121 | IC 1 Control |
| D | PK | 39 | Ignition 1 Voltage |
