2007 Chevrolet Tahoe 4.8 CFACTORY OEM SERVICE PROCEDURE
Radio Replacement (Except Cadillac)
Radio Replacement (Except Cadillac)

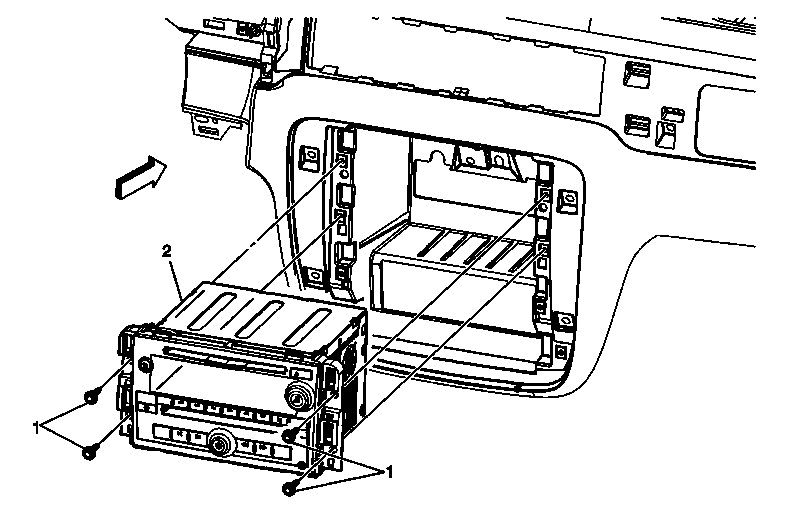

| Callout | Component Name |
|---|---|
|
IMPORTANT:
Use a scan tool to retrieve the radio part number before removing the radio from the vehicle. Preliminary Procedure: Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Cadillac)
or Instrument Panel Accessory Trim Plate Replacement (Except Cadillac)
. |
|
| 1 | Radio Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Radio Assembly Tip:
|
