2007 Chevrolet Tahoe 4.8 CFACTORY OEM SERVICE PROCEDURE

Rear View Camera Image Display Module (UVC)

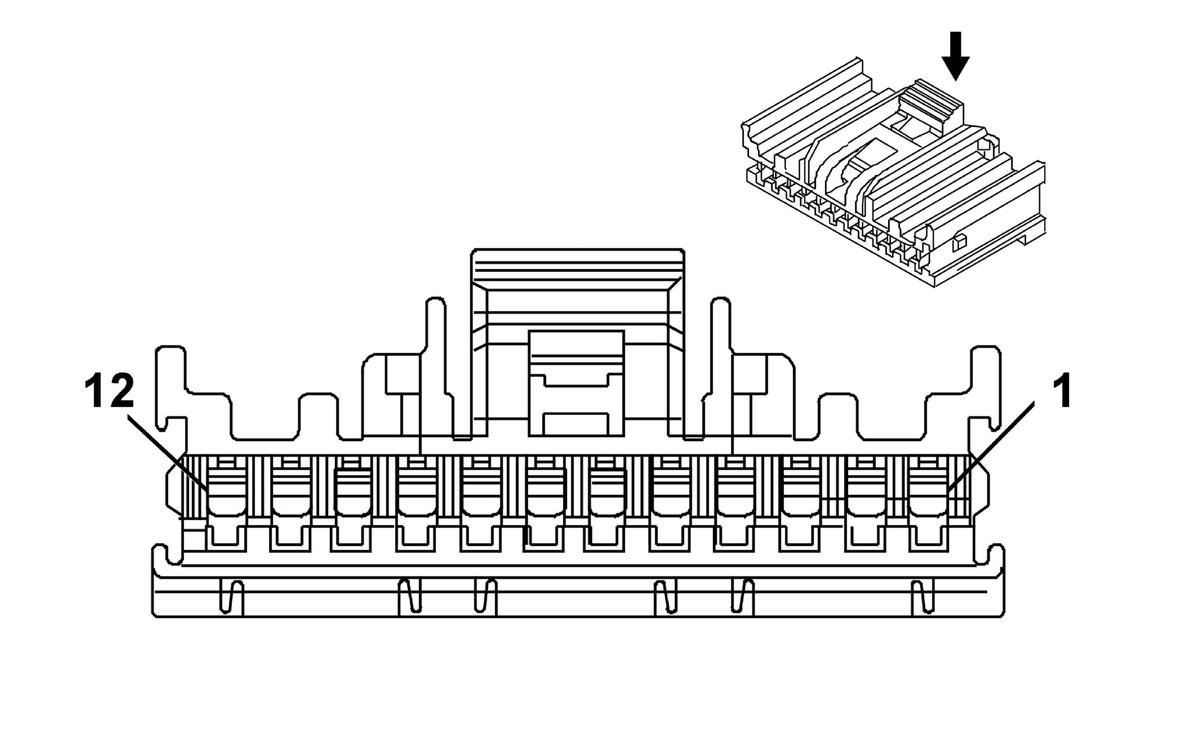

Fig 1: Rear View Camera Image Display Module (UVC) Connector End View
GM1710983Courtesy of GENERAL MOTORS CORP.
Rear View Camera Image Display Module (UVC) Connector Parts Information

Connector Part Information
  • OEM: 15499371
  • Service: 19115105
  • Description: 12-Way F KAIZEN 0.64 (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4618-02/14
  • Core/Insulation Crimp: P/P
  • Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
Rear View Camera Image Display Module (UVC) Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 D-BU 38 Backup Lamp Supply Voltage
2 PK 239 Ignition 1 Voltage
3 BK/WH 2751 Ground
4 OG 6201 5-Volt Reference
5 TN/BK 6202 Camera Ground
6 - - Not Used
7 Bare 6974 Camera Drain Wire
8 - - Not Used
9 WH 6798 Camera Video Signal
10 Bare 6799 Camera Shield
11 L-BU 6973 Camera Signal -
12 PK 6972 Camera Signal +
