2007 Chevrolet Suburban 4WD V8-6.0LFACTORY OEM SERVICE PROCEDURE
Control Module: Service and Repair
Transfer Case Shift Control Module Replacement
Removal Procedure

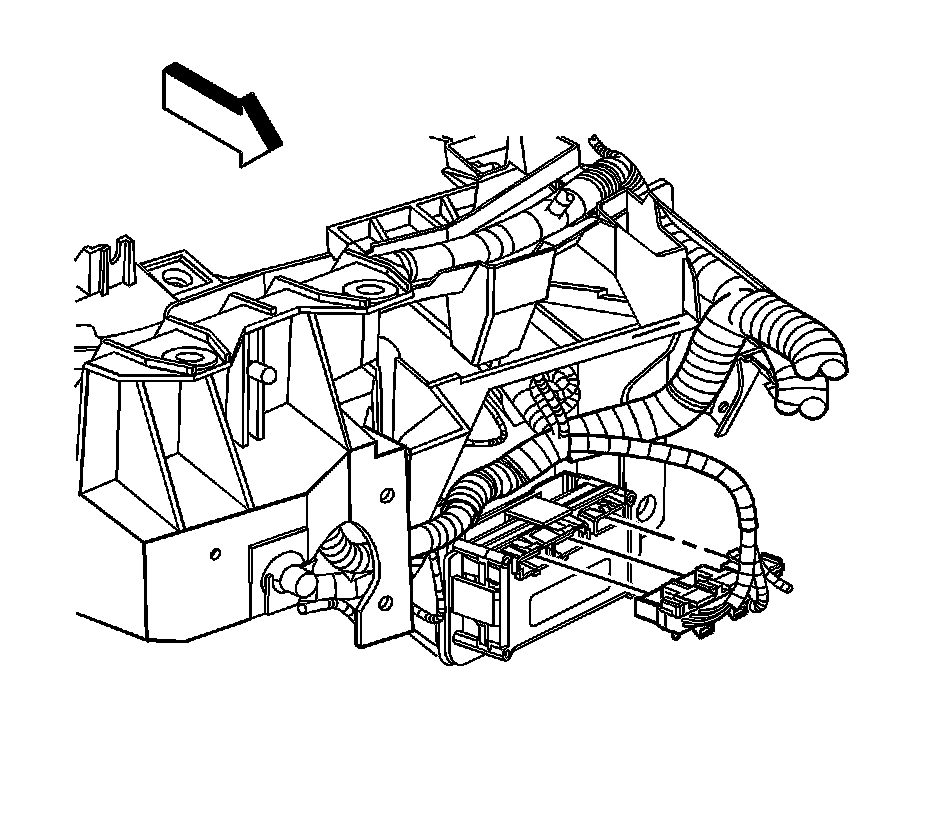

1. Disconnect the shift control module electrical connectors.

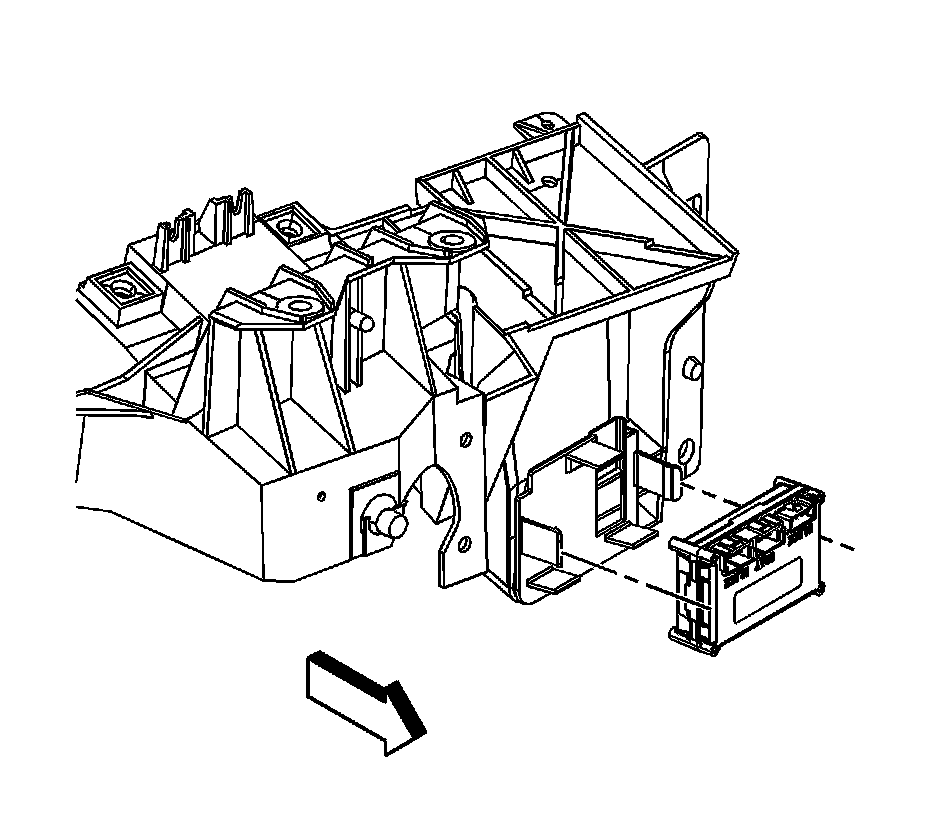

2. Unsnap and remove the shift control module from the bracket.
Installation Procedure
1. If a NEW control module is being installed, program the new module. Refer to Control Module References.
2. Install the shift control module to the bracket.
3. Connect the shift control module electrical connectors.
4. Start the engine and test the automatic transfer case system for proper shift operation.
