2007 Chevrolet Suburban 4WD V8-6.0LFACTORY OEM SERVICE PROCEDURE

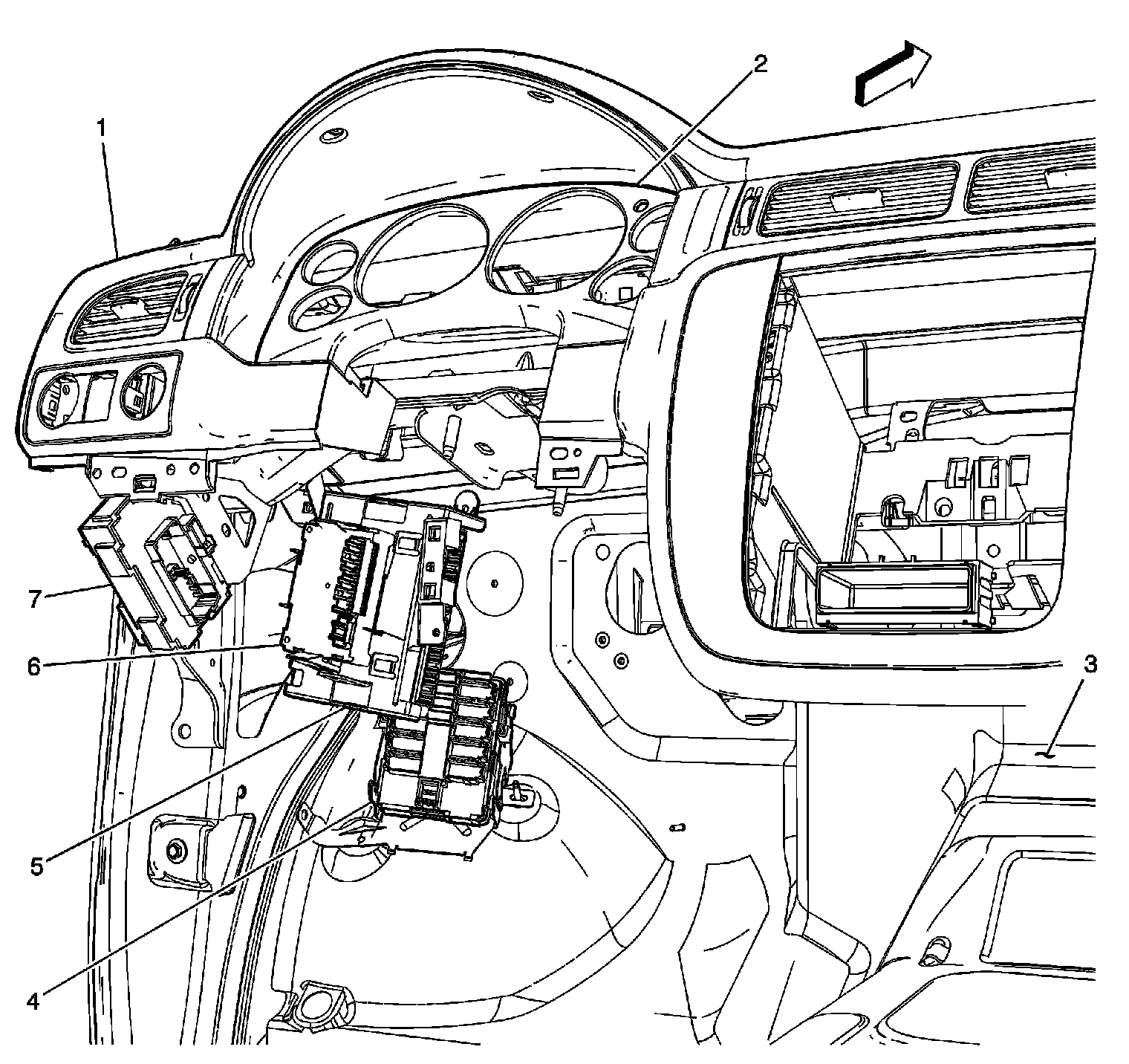

Control Module: Locations
(1) I/P Trim
(2) I/P Cluster Trim
(3) Floor Panel
(4) Junction Block - Left I/P
(5) Body Control Module (BCM)
(6) Transfer Case Shift Control Module (NP8)
(7) Fuse Block - I/P
