2007 Chevrolet Suburban 2WD V8-5.3LFACTORY OEM SERVICE PROCEDURE
Scan Tool Data List

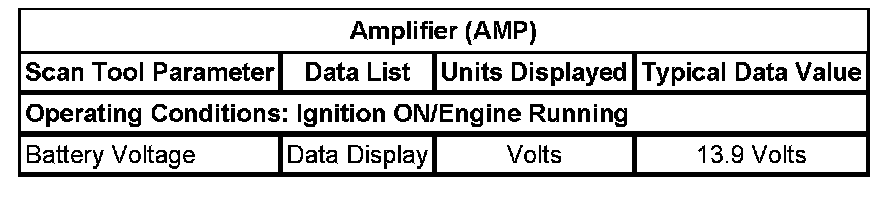

Amplifier (AMP):

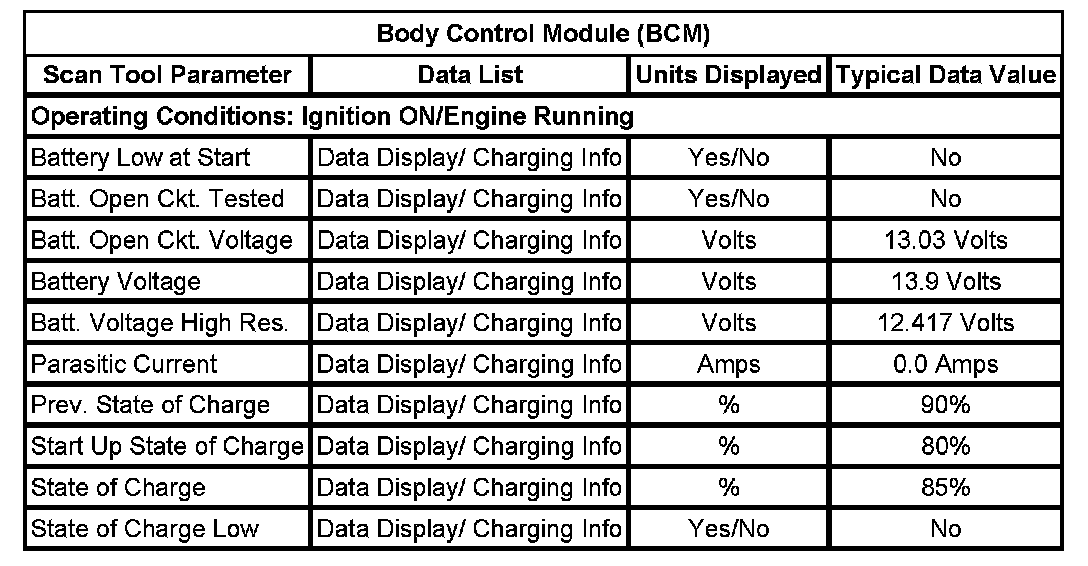

Body Control Module (BCM):
Digital Radio Receiver (DRR):

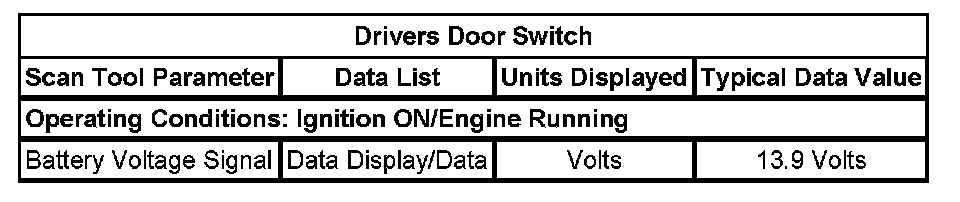

Drivers Door Switch:

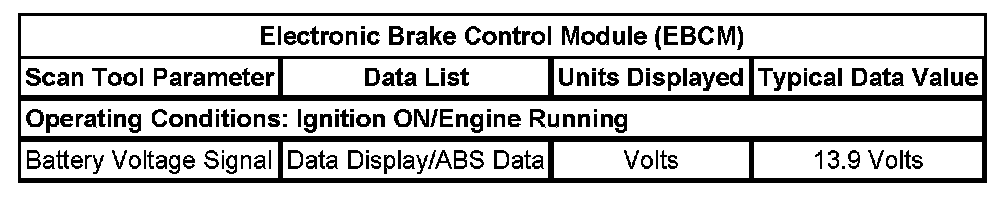

Electronic Brake Control Module (EBCM):

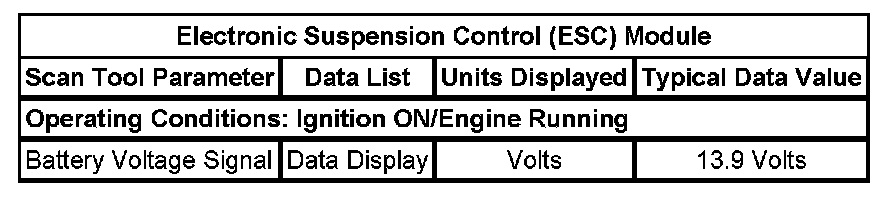

Electronic Suspension Control (ESC) Module:

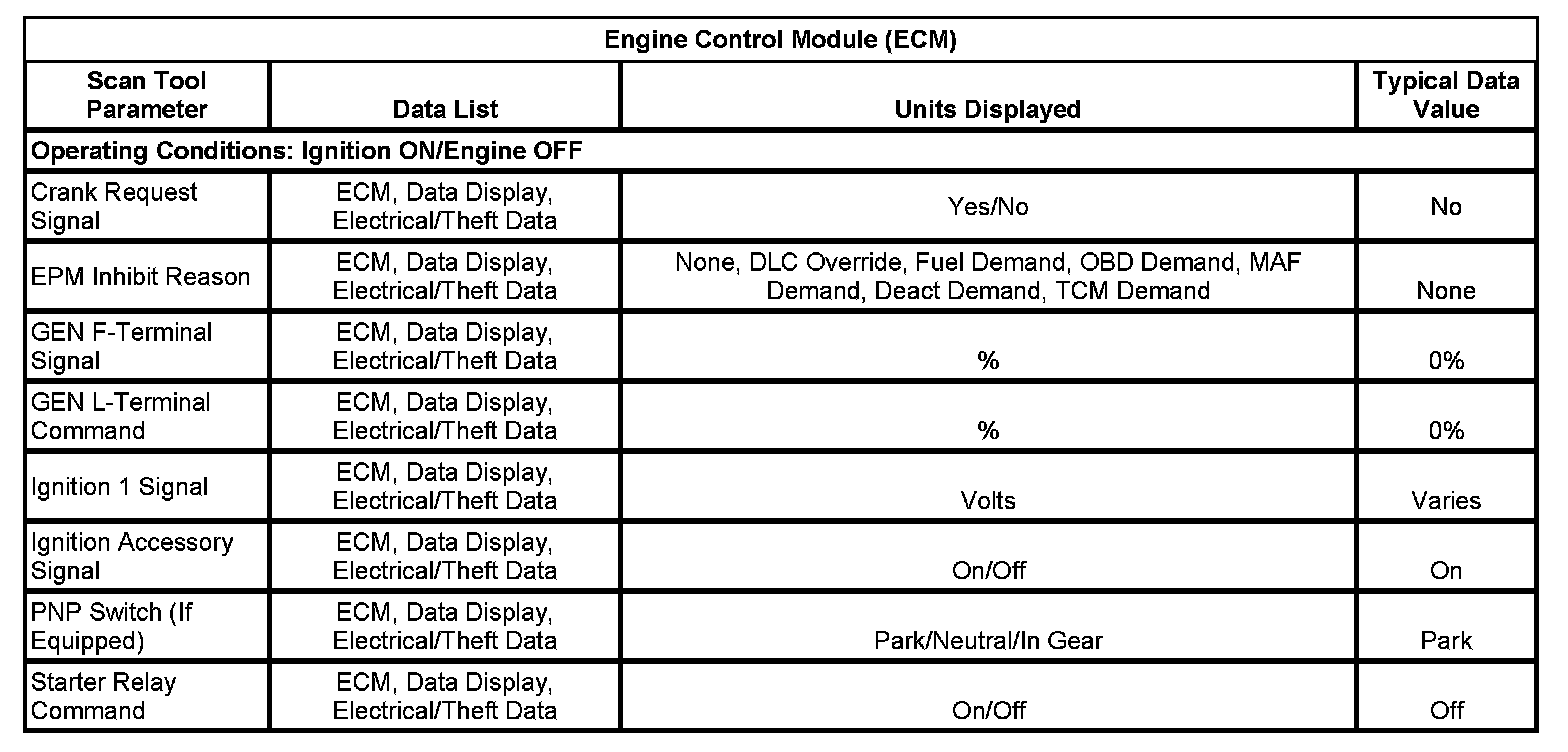

Engine Control Module (ECM):

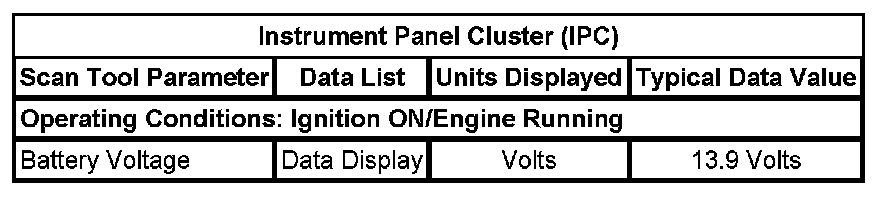

Instrument Panel Cluster (IPC):

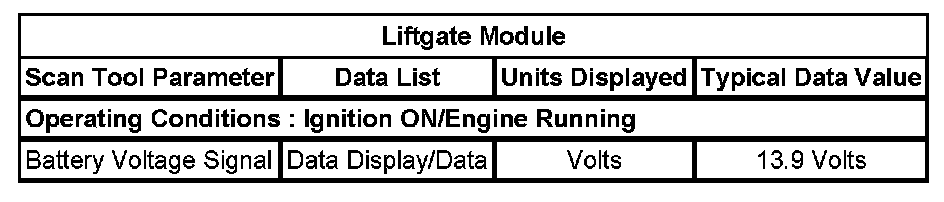

Liftgate Module:

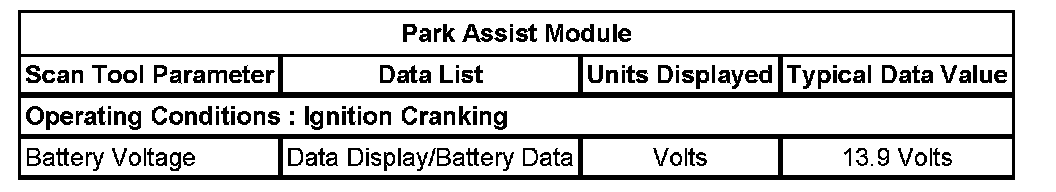

Park Assist Module:

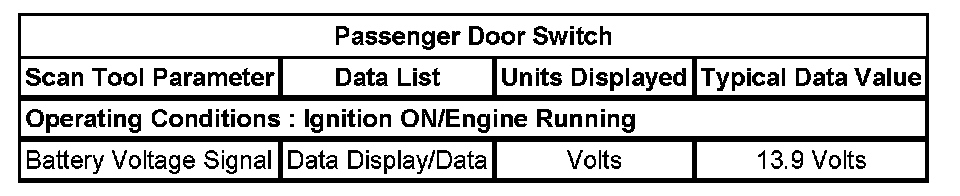

Passenger Door Switch:

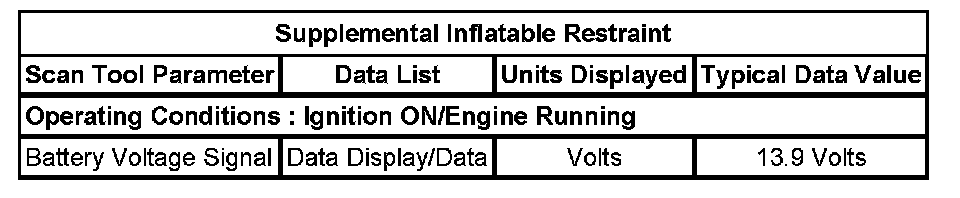

Supplemental Inflatable Restraint:

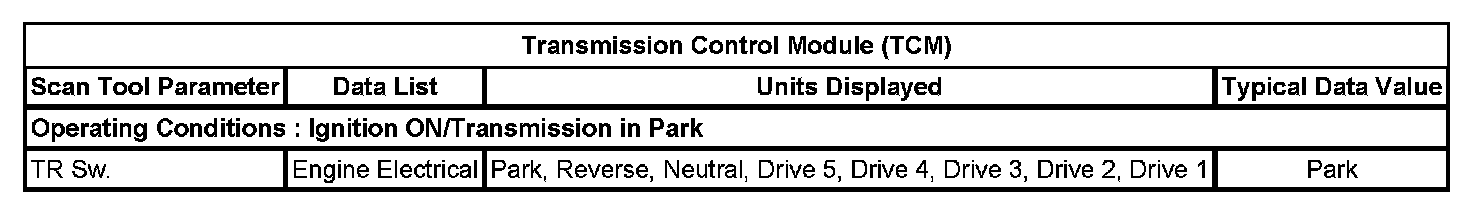

Transmission Control Module (TCM):

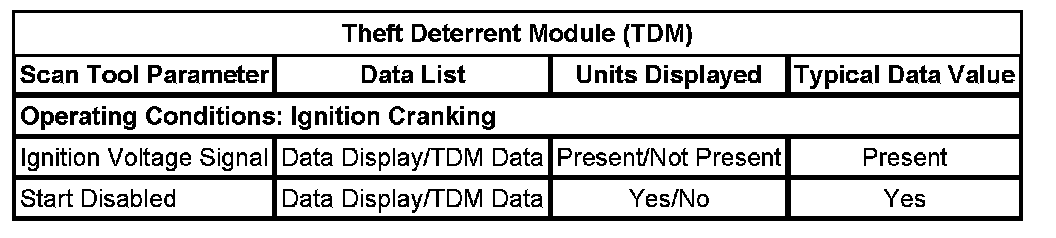

Theft Deterrent Module (TDM):
