2007 Chevrolet Silverado 2500 HD, 2D Pickup, 6.6 6, RWDFACTORY OEM SERVICE PROCEDURE

Engine Speed Power Take-Off Control Module Replacement

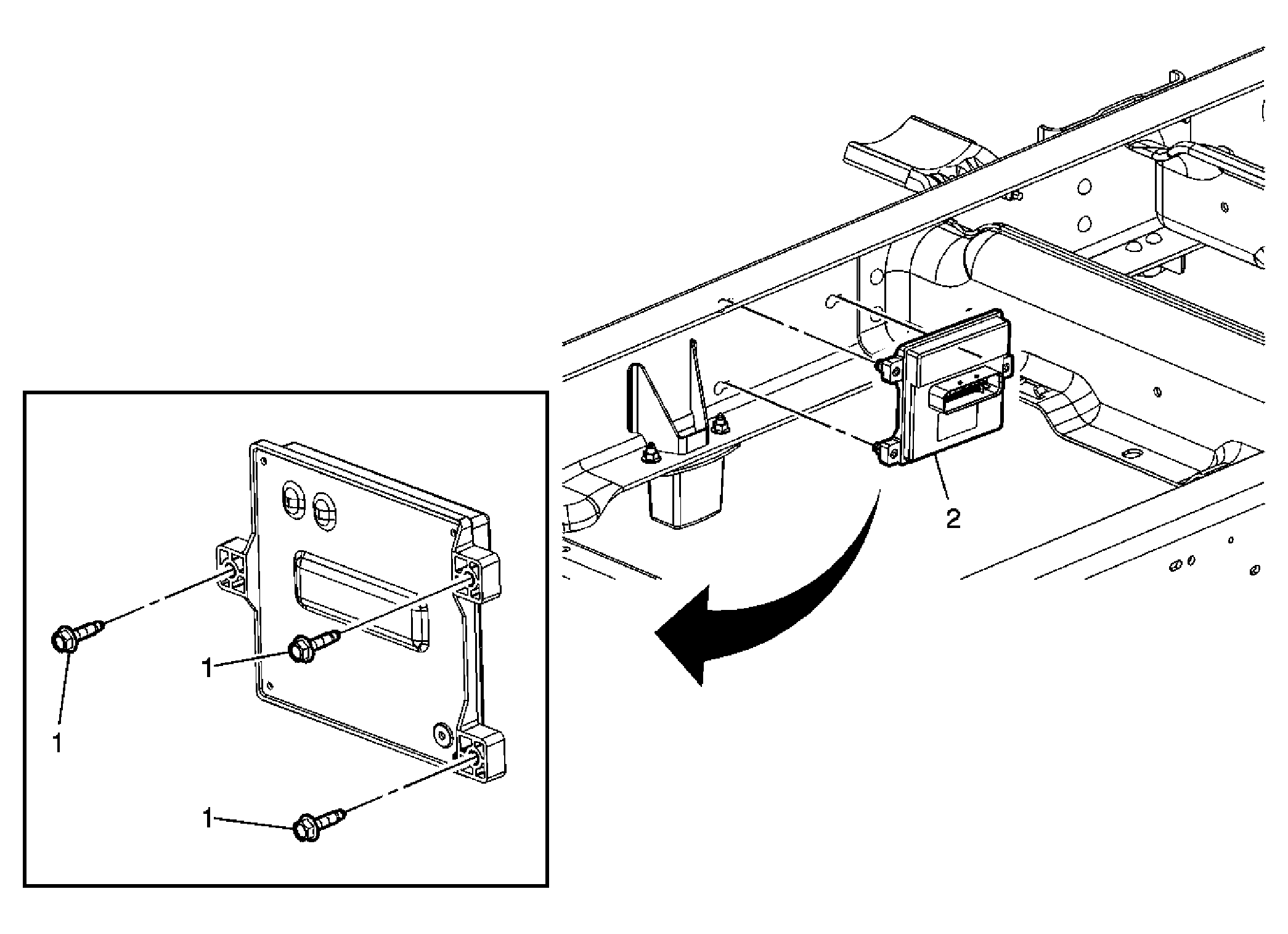

Fig 1: View Of PTO Module & Bolts
GM1936364Courtesy of GENERAL MOTORS CORP.
Engine Speed Power Take-Off Control Module Replacement

Callout Component Name
Preliminary Procedure:
Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
1 Power Take Off (PTO) Module Bolts (Qty: 3)
NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten:  9 N.m (80 lb in)

Procedure

  1. Install/remove the PTO module to/from the frame with the bolts loosely threaded into the module.
  2. Bolt heads should pass through the holes in the frame.
  3. Position the PTO module so that the bolts engage the narrow slots in the frame before tightening the bolts

Tip:  It is not necessary to fully remove the PTO module bolts from the module except when transferring the bolts to a new module.
2 PTO Module

Procedure

  • Disconnect the electrical connector from the PTO module.
  • New PTO module must be programed. Refer to Control Module References .
