2007 Chevrolet Silverado 1500 2WD V6-4.3L
I/P Views
2007 Chevrolet Silverado 1500 2WD V6-4.3LSECTION I/P Views
Power and Grounding Component Views

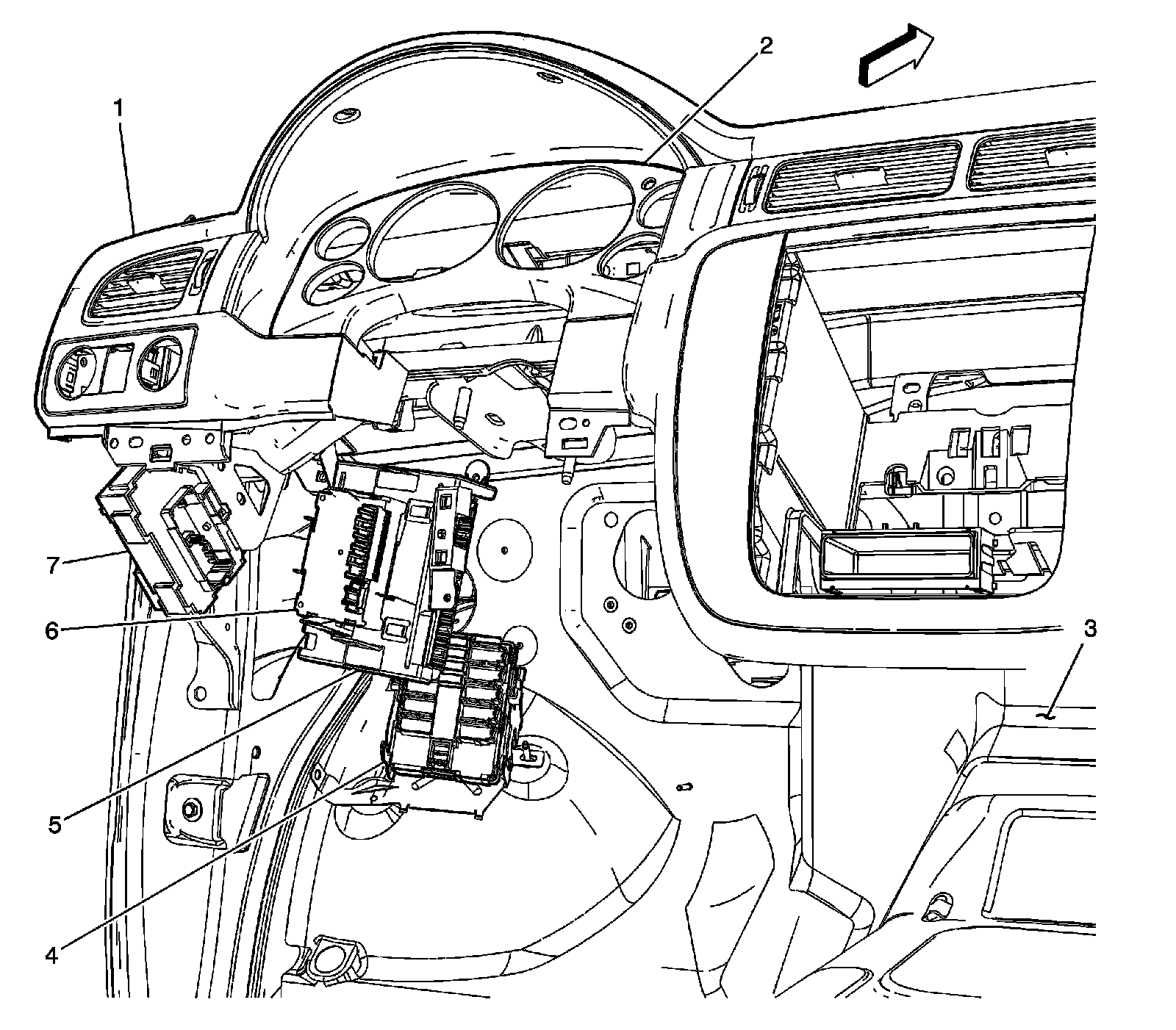

Below the I/P
Below the I/P:
1 - I/P Trim
2 - I/P Cluster Trim
3 - Floor Panel
4 - Junction Block - Left I/P
5 - Body Control Module (BCM)
6 - Transfer Case Shift Control Module
7 - Fuse Block - I/P

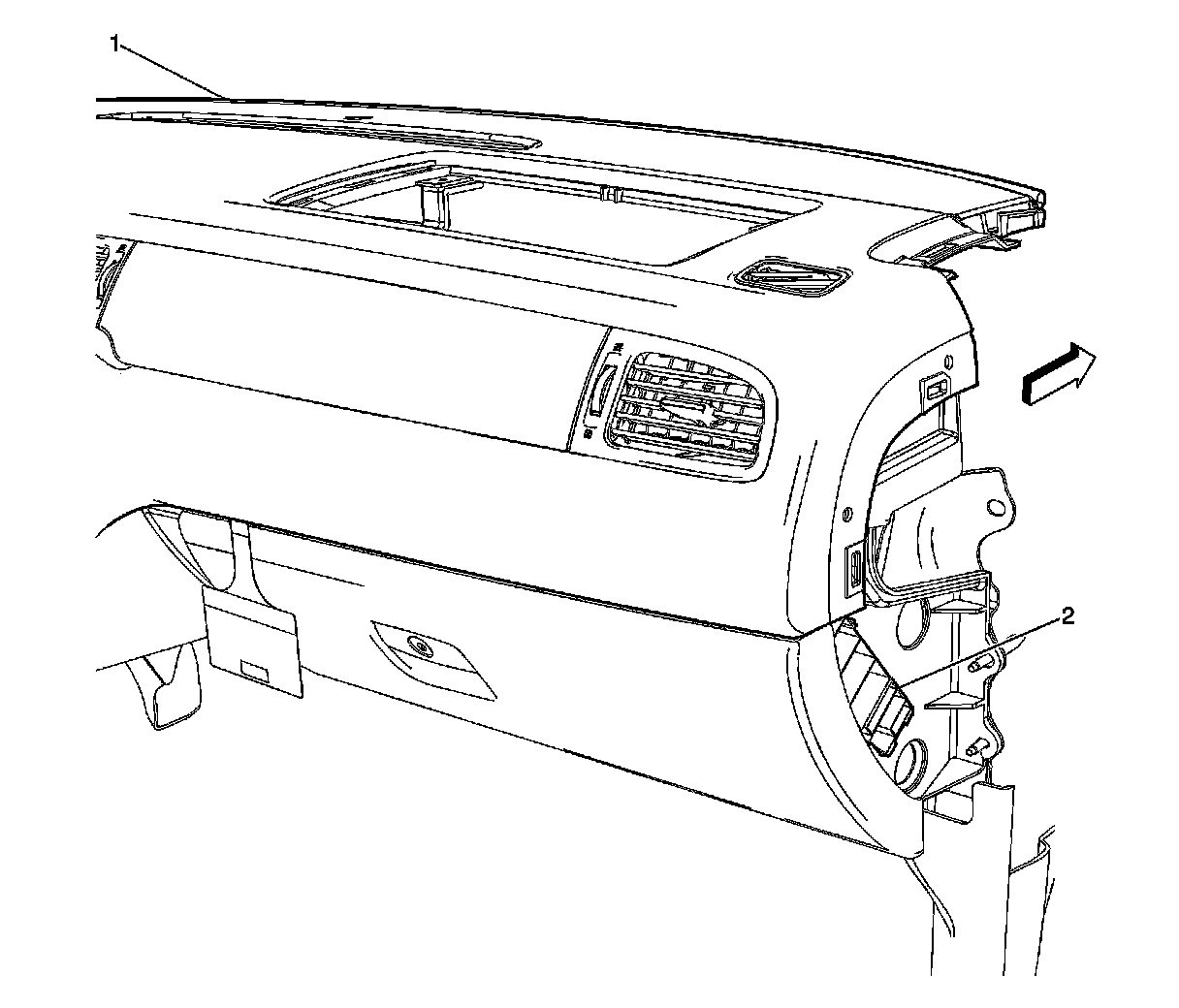

Right Side of the I/P
1 - I/P Trim
2 - Junction Block - Right I/P
