2007 Chevrolet Silverado 1500 2WD V6-4.3LFACTORY OEM SERVICE PROCEDURE
Chassis Views
Power and Grounding Component Views

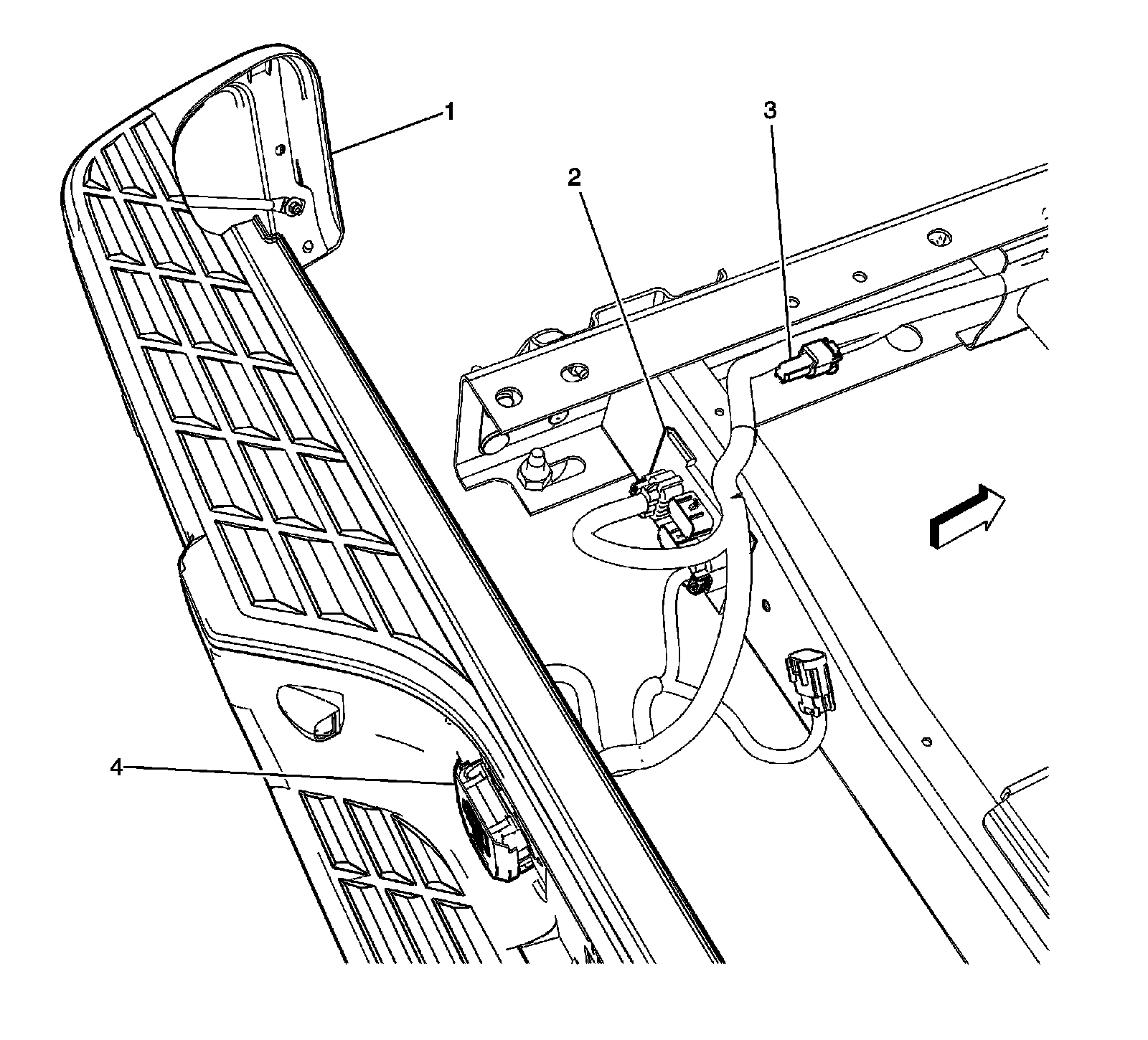

Left Rear of the Chassis Frame
1 - Rear Bumper
2 - Junction Block - Rear Lamps
3 - Terminator Resistor
4 - Trailer Connector (UY7)

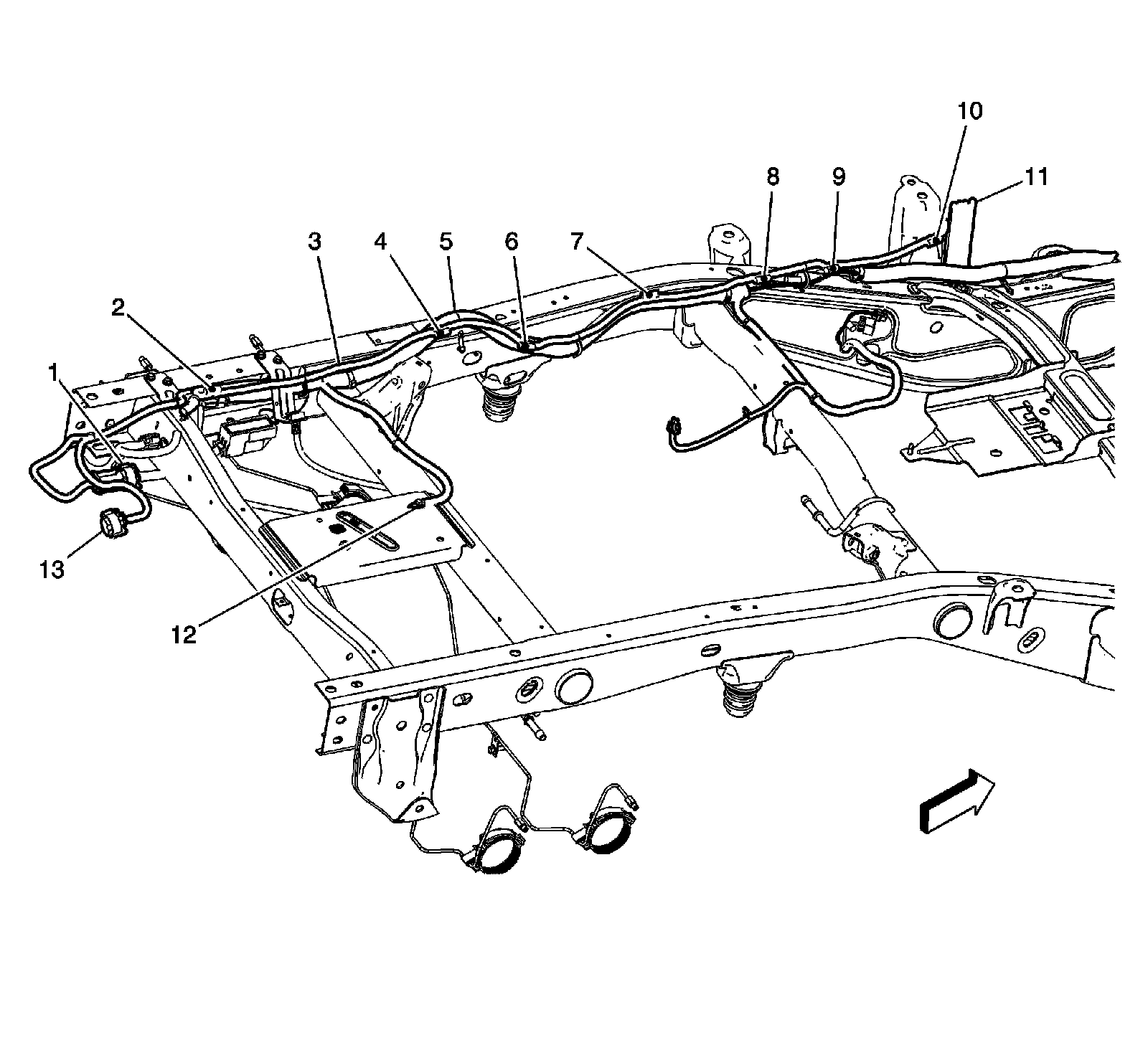

Camper/Trailer Harness and Chassis Rear Harness
1 - X414 (UY2/8S3)
2 - J420 (UY2)
3 - Camper/Trailer Harness
4 - J415 (UY2)
5 - Chassis Harness
6 - J416 (UY2)
7 - J417 (UY2)
8 - J414 (UY2)
9 - J421 (UY2)
10 - J410 (UY2)
11 - Camper / Trailer Harness Blunt Cuts (UY2)
12 - G401
13 - Trailer Connector (UY7)
