2007 Chevrolet Silverado 1500 2WD V6-4.3LFACTORY OEM SERVICE PROCEDURE

Mirrors: Locations



Mirror Component Views

Ambient Air Temperature Sensors

Factory service manual diagram



1 - Radiator Core Support
2 - Ambient Air Temperature Sensor (DF5)
3 - Ambient Air Temperature Sensor - HVAC (CJ2)

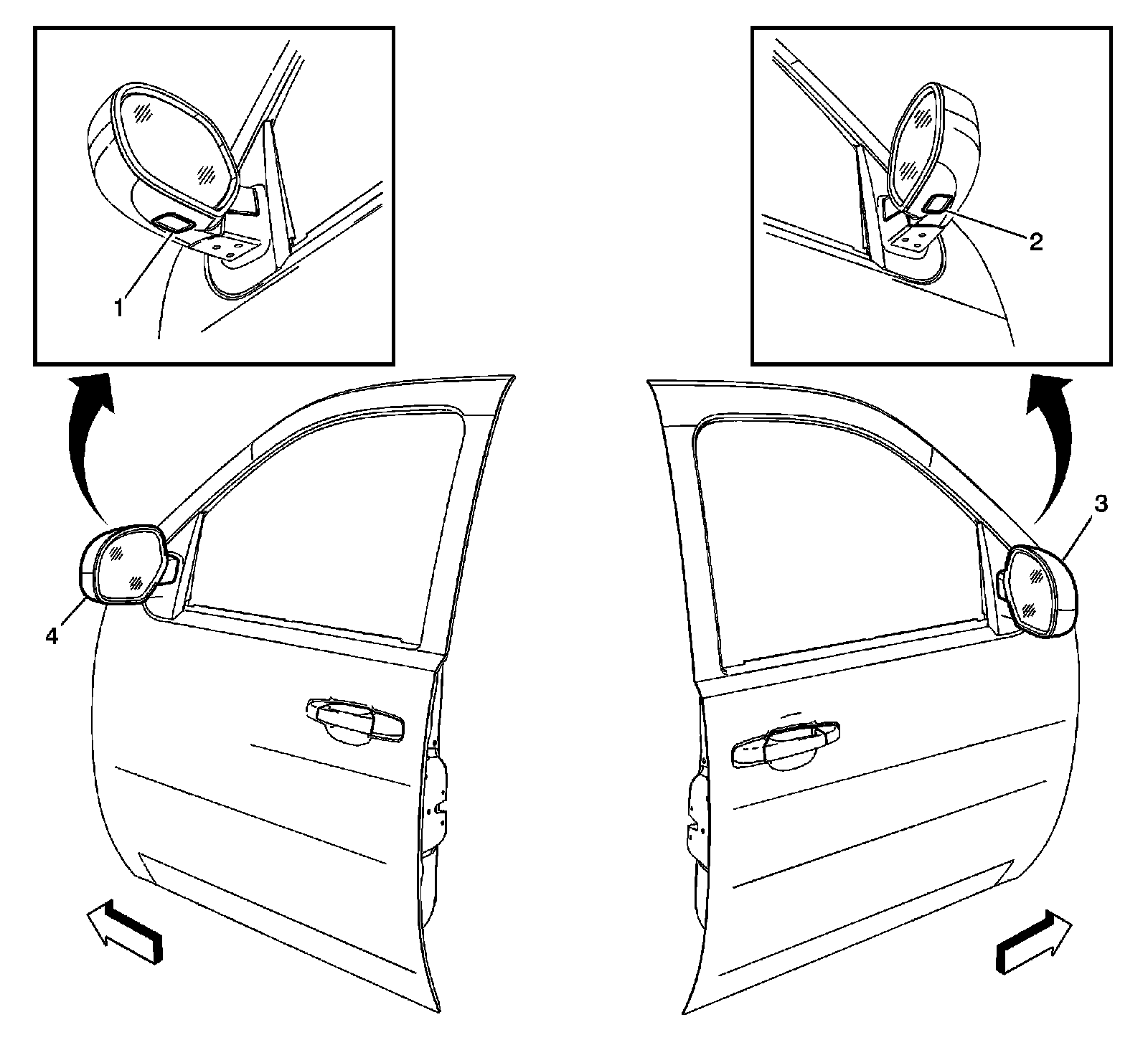

Door Mirrors

Factory service manual diagram



1 - Exterior Illumination Lamp - Left (DL3/DR4)
2 - Exterior Illumination Lamp - Right (DL3/DR4)
3 - Outside Rear View Mirror (OSRVM) - Driver
4 - Outside Rear View Mirror (OSRVM) - Passenger

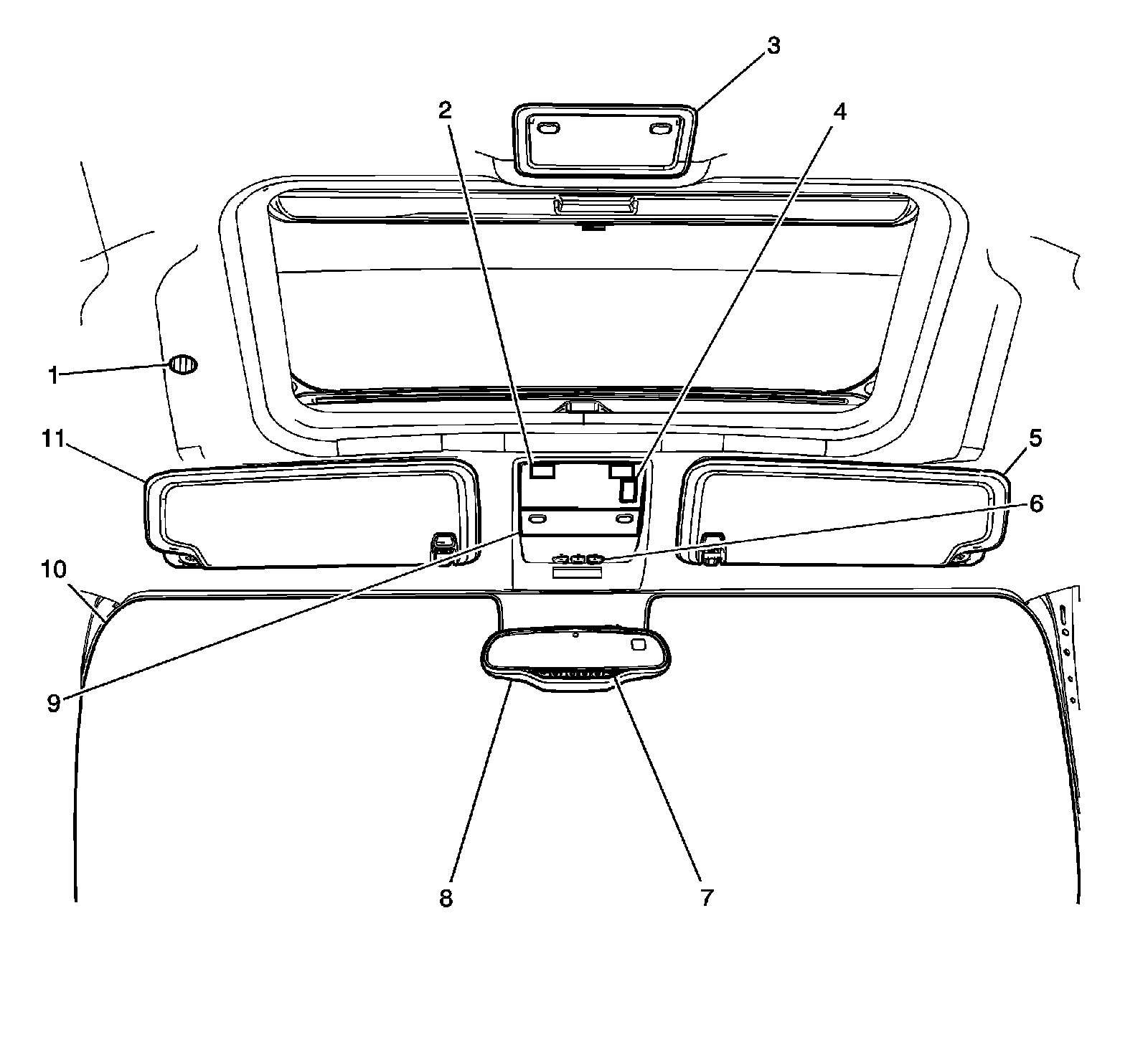

Front Headliner Components

Factory service manual diagram



1 - Inside Air Temperature Sensor - Front (CJ2)
2 - Cellular Microphone (UE1/U3U/UVB)
3 - Courtesy/Reading Lamps - Rear (Extended Cab/Crew Cab)
4 - Sunroof Switch (CF5)
5 - Sunshade - Right (DH6)
6 - Garage Door Opener (UG1)
7 - OnStar Button Assembly
8 - Inside Rearview Mirror (ISRVM)
9 - Courtesy/Reading Lamps - Front
10 - Windshield
11 - Sunshade - Left (DH6)
