2007 Chevrolet Optra5 LS, AutomaticFACTORY OEM SERVICE PROCEDURE

Wiper/Washer Connector End Views

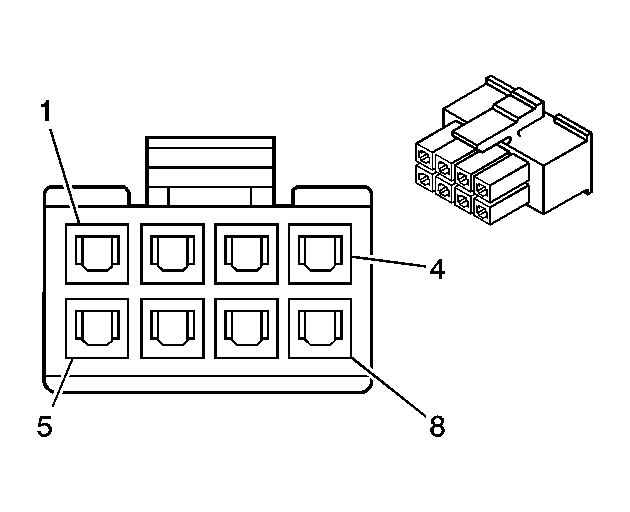

Rain Sensor

GM1480215Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MLX 43645-0800
  • 8-Way F Micro-Fit (3.0) 8 Circuit Single Row Receptacle
Pin Wire Color Circuit No. Function
1 D-BU 1112 Outside Moisture Sensor Signal 1
2 D-GN 2228 Outside Moisture Sensor Signal 2
3 BK 850 Ground
4 PK 639 Ignition 1 Voltage
5 YE 112 Windshield Wiper Switch Signal 1
6 RD 228 Windshield Wiper Pump Control
7 L-GN 227 Outside Moisture Sensor Signal 2
8 - - Not Used

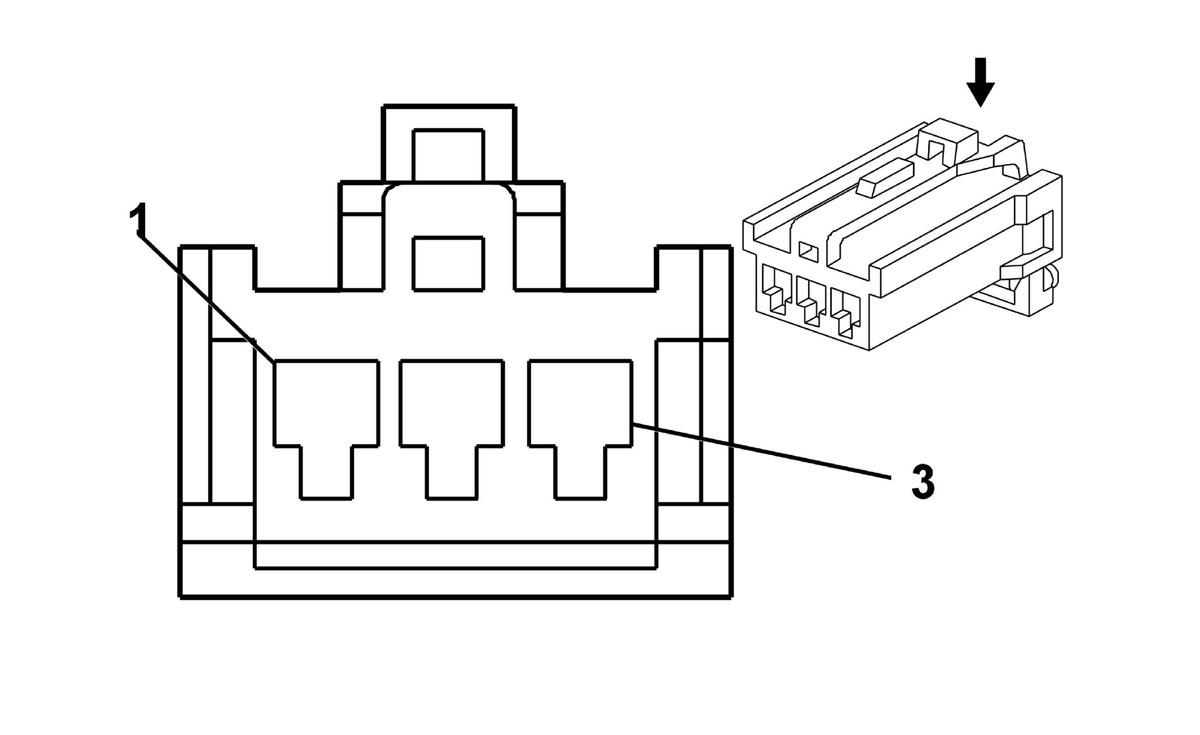

Wiper Motor Rear

GM1467038Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610394
  • 3-Way F Series Sealed (WH)
Pin Wire Color Circuit No. Function
1 WH 393 Rear Window Wiper Motor Control
2 BK 750 Ground
3 PK 441 Ignition 3 Voltage

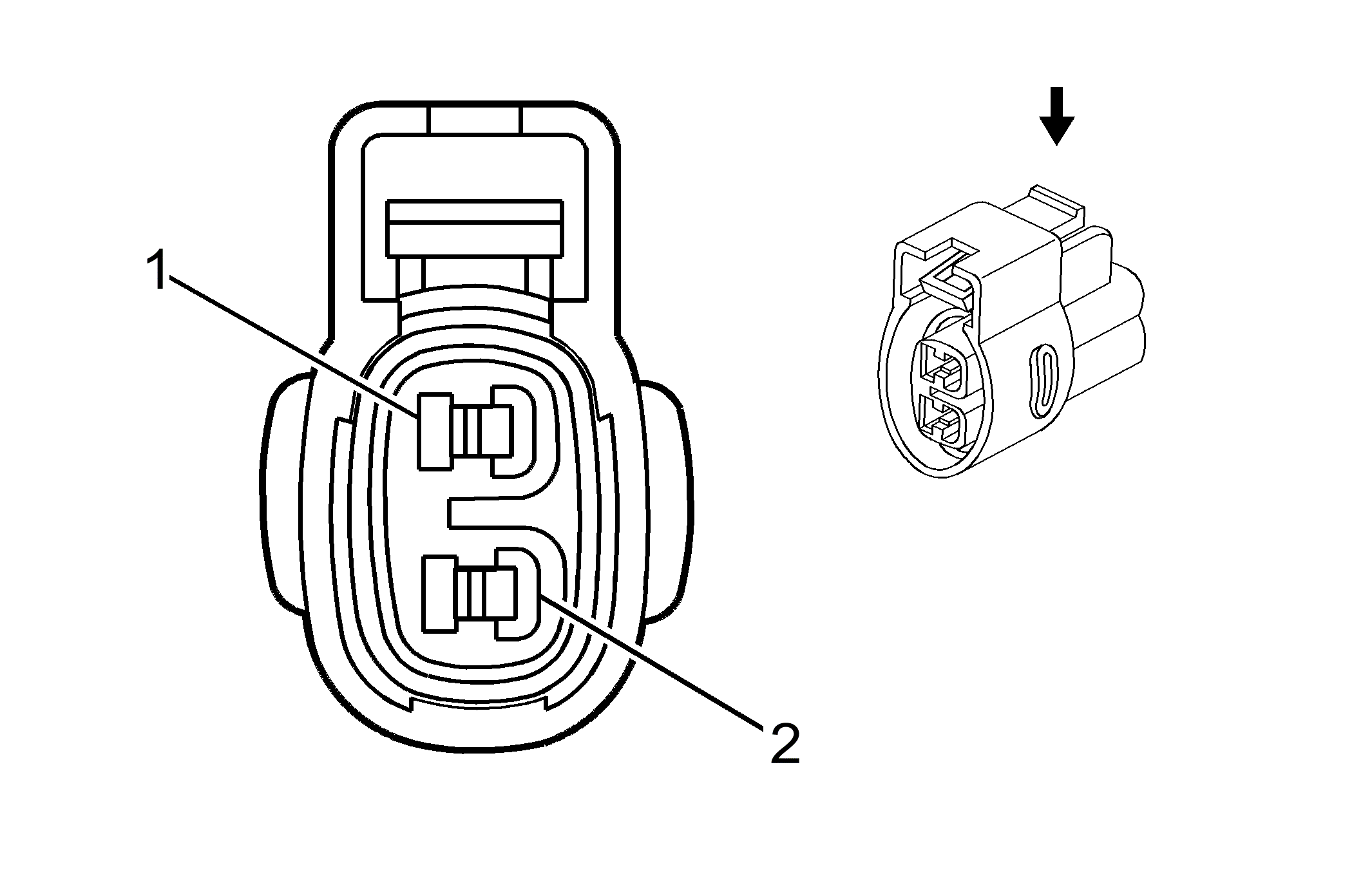

Windshield Washer Fluid Pump (Notchback)

GM1467079Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 640605
  • 2-Way F 090 WP Series (WH)
Pin Wire Color Circuit No. Function
1 BK 50 Ground
2 RD 228 Washer Switch Signal

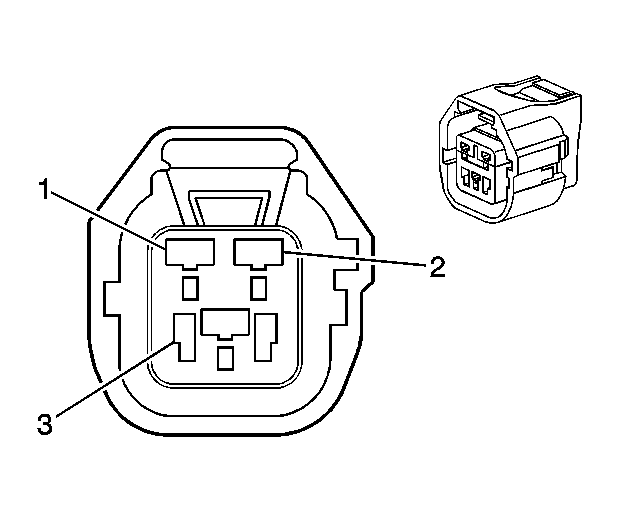

Windshield Washer Fluid Pump (Hatchback)

GM1501850Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 641362
  • 3-Way F Connector (GY)
Pin Wire Color Circuit No. Function
1 RD 228 Windshield Washer Pump Control
2 BK 1150 Ground
3 D-GN 392 Rear Window Wiper Motor Control

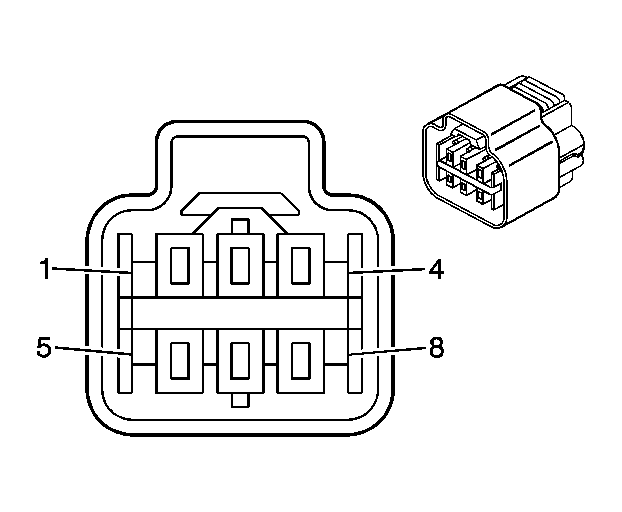

Windshield Wiper Motor (w/Rain Sensor)

GM1468384Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-08027
  • 8-Way F NMWP 08F-B Assembly (BK)
Pin Wire Color Circuit No. Function
1 D-GN 95 Windshield Wiper Motor Low Speed
2 BN 96 Windshield Wiper Switch Off/Delay Signal
3 BK 1150 Ground
4 L-GN 227 Outside Moisture Sensor Signal
5 PU 92 Windshield Wiper Motor High Speed
6 D-BU 1112 Outside Moisture Sensor Signal 1
7 D-GN 2228 Outside Moisture Sensor Signal 2
D-GN/WH
8 RD/D-BU 441 Ignition 3 Voltage
Windshield Wiper Motor (w/o Rain Sensor)

GM1468384Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KUM PB 625-08027
  • 8-Way F NMWP 08F-B Assembly (BK)
Pin Wire Color Circuit No. Function
1 D-GN 95 Windshield Wiper Motor Low Speed
2 YE 112 Windshield Wiper Switch Signal
3 BK 1150 Ground
4 - - Not Used
5 PU 92 Windshield Wiper Motor High Speed
6 BN 96 Windshield Wiper Off/Delay Signal
7 RD 228 Windshield Washer Pump Control
8 RD/ D-BU 441 Ignition 3 Voltage
Windshield Wiper/Washer Switch A

GM1468431Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610154
  • 9-Way F 118 (PA) Series (WH)
Pin Wire Color Circuit No. Function
1 WH 393 Rear Window Wiper Motor Control (w/Rear Wipers)
2 D-GN 392 Rear Window Washer Pump Control (w/Rear Wipers)
3 BN 441 Ignition 3 Voltage
4 RD 228 Windshield Washer Pump Control
5 D-GN 95 Windshield Wiper Motor Low Speed
6 L-BU 97 Windshield Wiper Switch Off/Delay Signal
7 GY 91 Windshield Wiper Switch Pulse Delay Signal
8 BN 441 Ignition 3 Voltage
9 PU 92 Windshield Wiper Motor High Speed

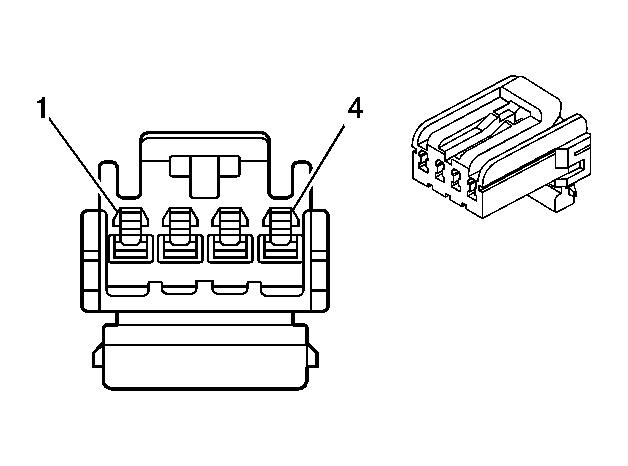

Windshield Wiper/Washer Switch B (w/Rear Fog Lamps)

GM1467000Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 368501-1
  • 4-Way F 070 Series MLC Plug Hsg 4P (WH)
Pin Wire Color Circuit No. Function
1 GY 91 Windshield Wiper Switch Pulse Delay Signal
2 YE 112 Windshield Wiper Switch Signal 1
3 PU 1977 Outside Moisture Sensor Signal 1
4 BK 250 Ground

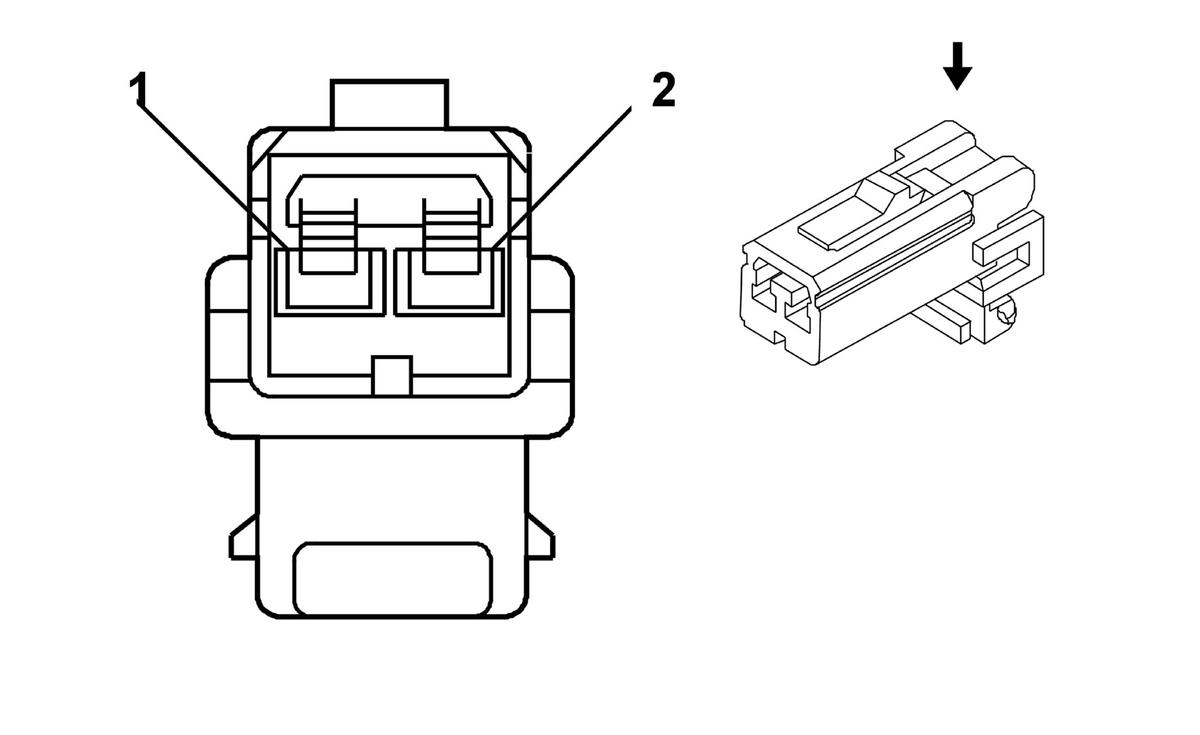

Windshield Wiper/Washer Switch B (w/o Rear Fog Lamps)

GM1466986Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 174463-1
  • 2-Way M 070 Series Multilock 2P (WH)
Pin Wire Color Circuit No. Function
1 YE 112 Windshield Wiper Switch Signal 1
2 GY 91 Windshield Wiper Switch Pulse Delay Signal
