2007 Chevrolet Optra LS, AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

NOTE: Always re-attach the fuel lines and fuel filter with all original type fasteners and hardware.
Do not repair sections of fuel pipes.

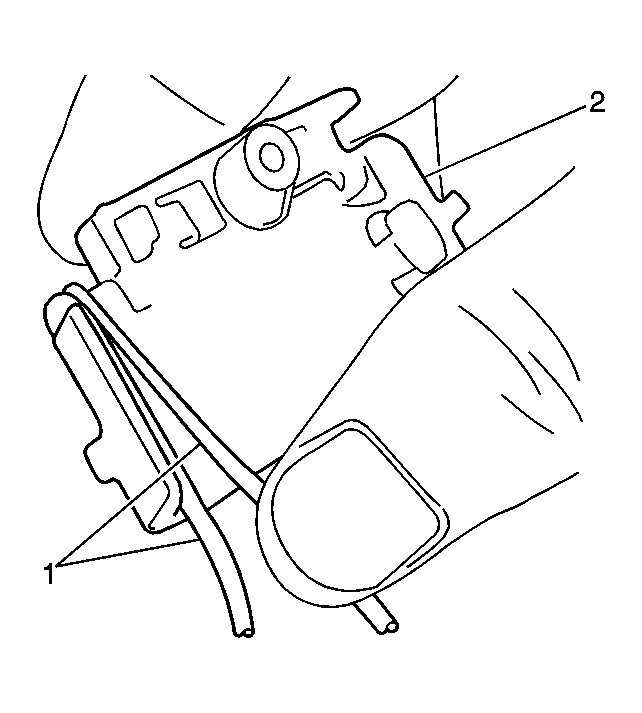

Fig 1: View Of Fuel Sender Assembly And Electrical Wires

Courtesy of GENERAL MOTORS CORP.

Wind the wires (1) around the sender assembly (2).

Fig 2: Inserting Fuel Sender Into Fuel Pump Assembly

Courtesy of GENERAL MOTORS CORP.
