2007 Chevrolet Optra LS, AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

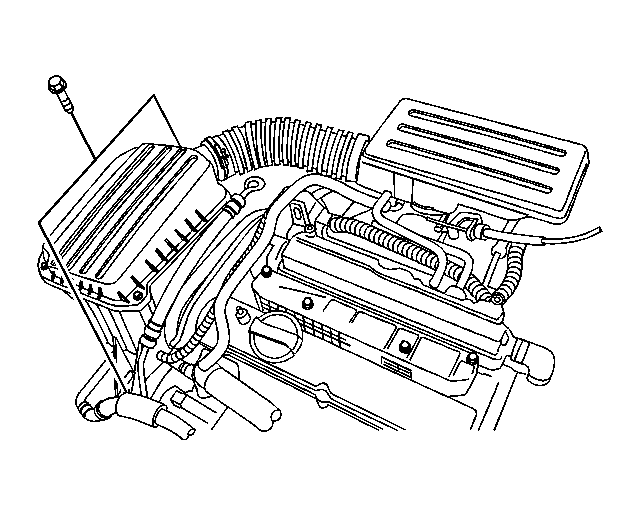

Fig 1: View Of Air Cleaner Housing Bolts

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner housing.
Tighten the clamps.

NOTE: Refer to Fastener Notice .

Install the air cleaner housing bolts.
Tighten: Tighten the air cleaner housing bolts to 10 N.m (89 lb in) .
Install the engine cover.
Connect the negative battery cable.
