2007 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
System Specifications
Sealing and Caulking Specifications

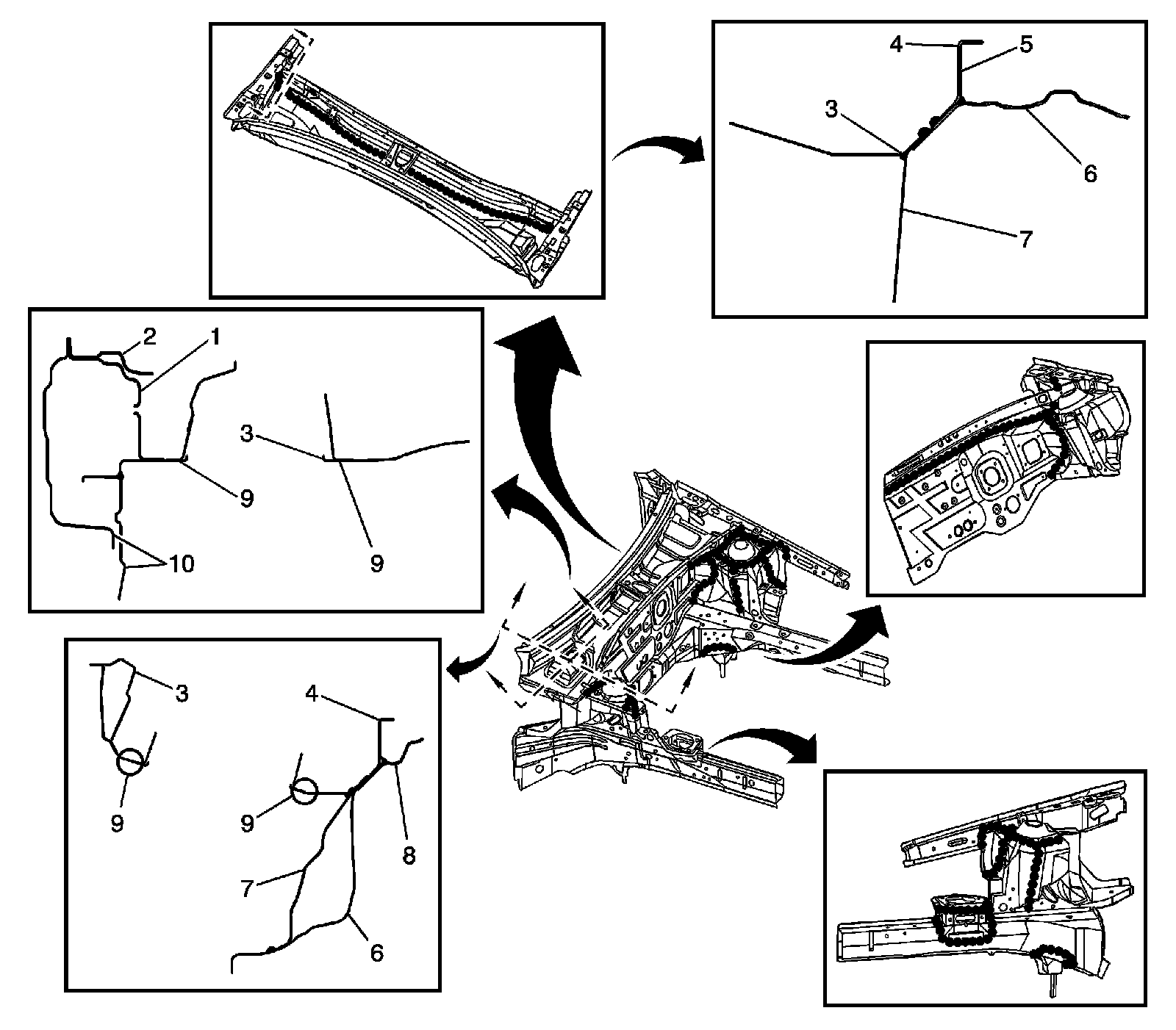

Engine Compartment (1 of 2)
Seal the following areas to prevent air leaks, water leaks, and rust.
1 - Hood Hinge Bracket Lower
2 - Hood Hinge Bracket Upper
3 - Dash Upper Panel
4 - Dash Upper Patch
5 - Dash Upper Plate
6 - Shock Absorber Front Locator
7 - Dash Lower Panel
8 - Shock Absorber Upper Locator
9 - Spot Weld Sealer
10 - Wheel Brace Shroud Panel

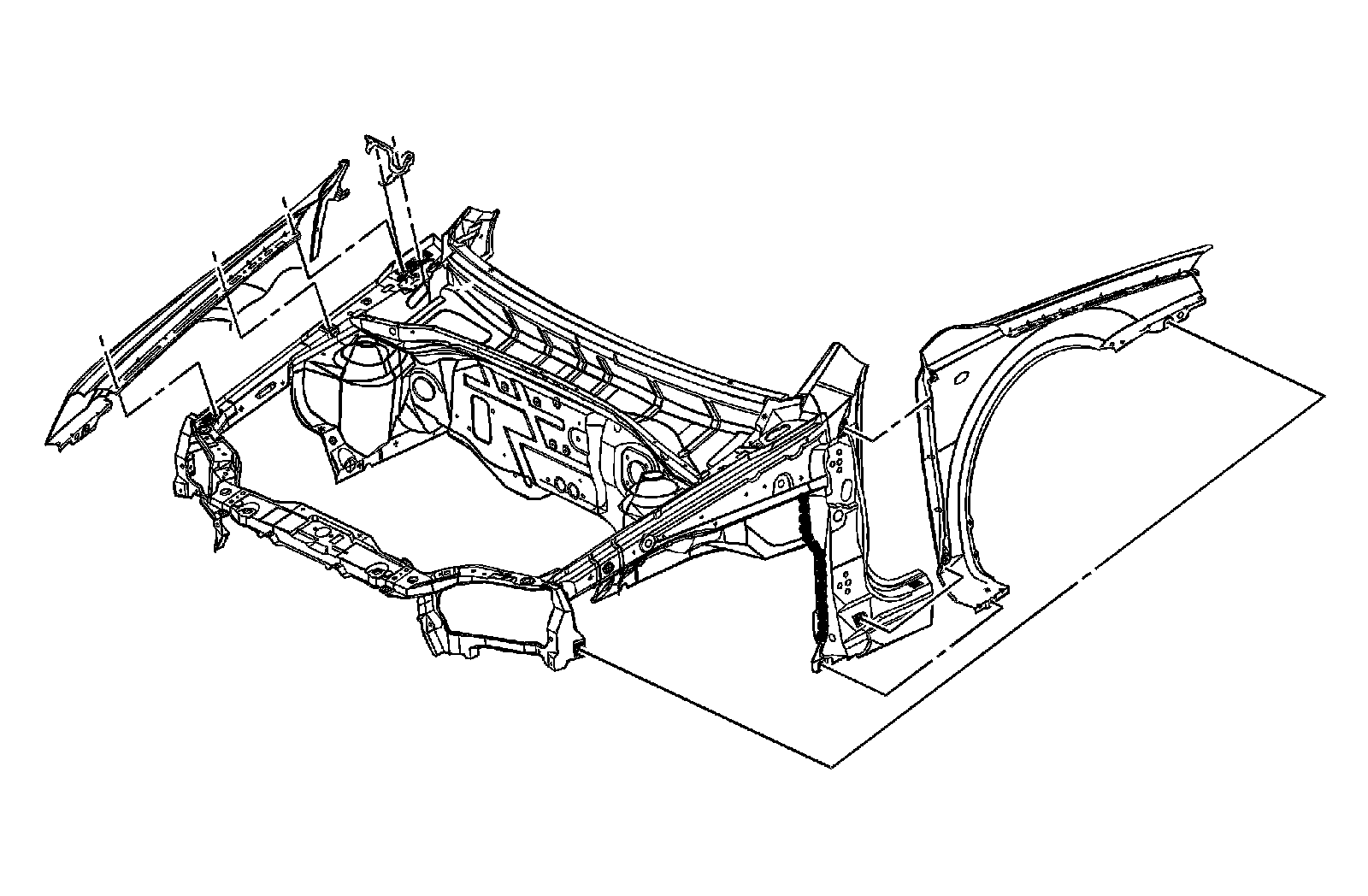

Engine Compartment (2 of 2)
Seal the following areas to prevent air leaks, water leaks, and rust.

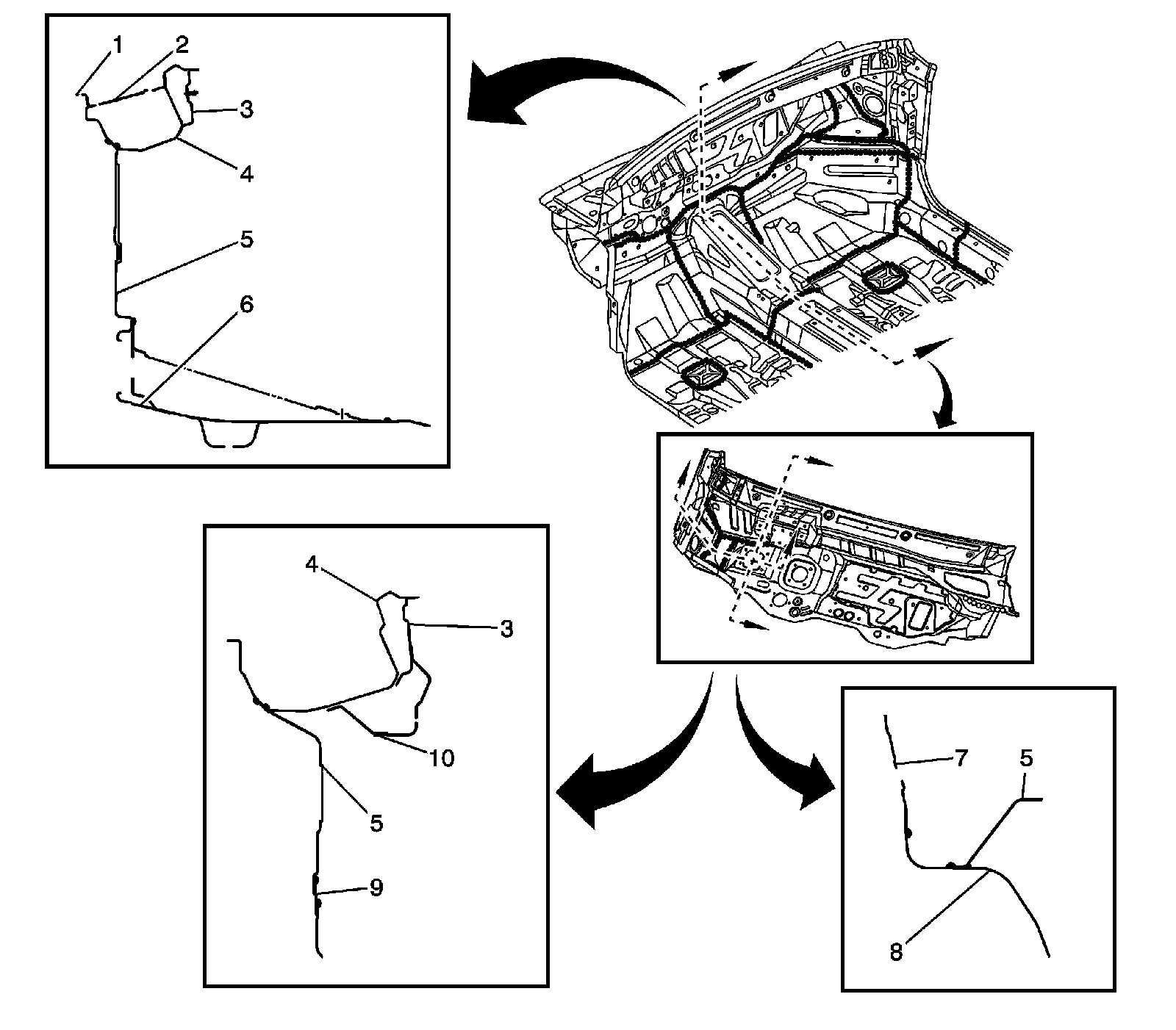

Dash Panel
Seal the following areas to prevent air leaks, water leaks, and rust.
1 - Dash Upper Plate
2 - Wiper Bracket
3 - Dash Upper Crossmember
4 - Dash Upper Panel
5 - Dash Lower Panel
6 - Dash Lower Center Crossmember
7 - Shroud Panel
8 - Shock Absorber Front Locator
9 - Patch
10 - Steering Column Bracket
Floor and Trunk Compartment
Seal the following areas to prevent air leaks, water leaks, and rust.
1 - Back Upper Support
2 - Wheel House Inner
3 - Rear Shock Absorber Locator
4 - Back Upper Lower Support
5 - Side Inner Panel Back Upper Support

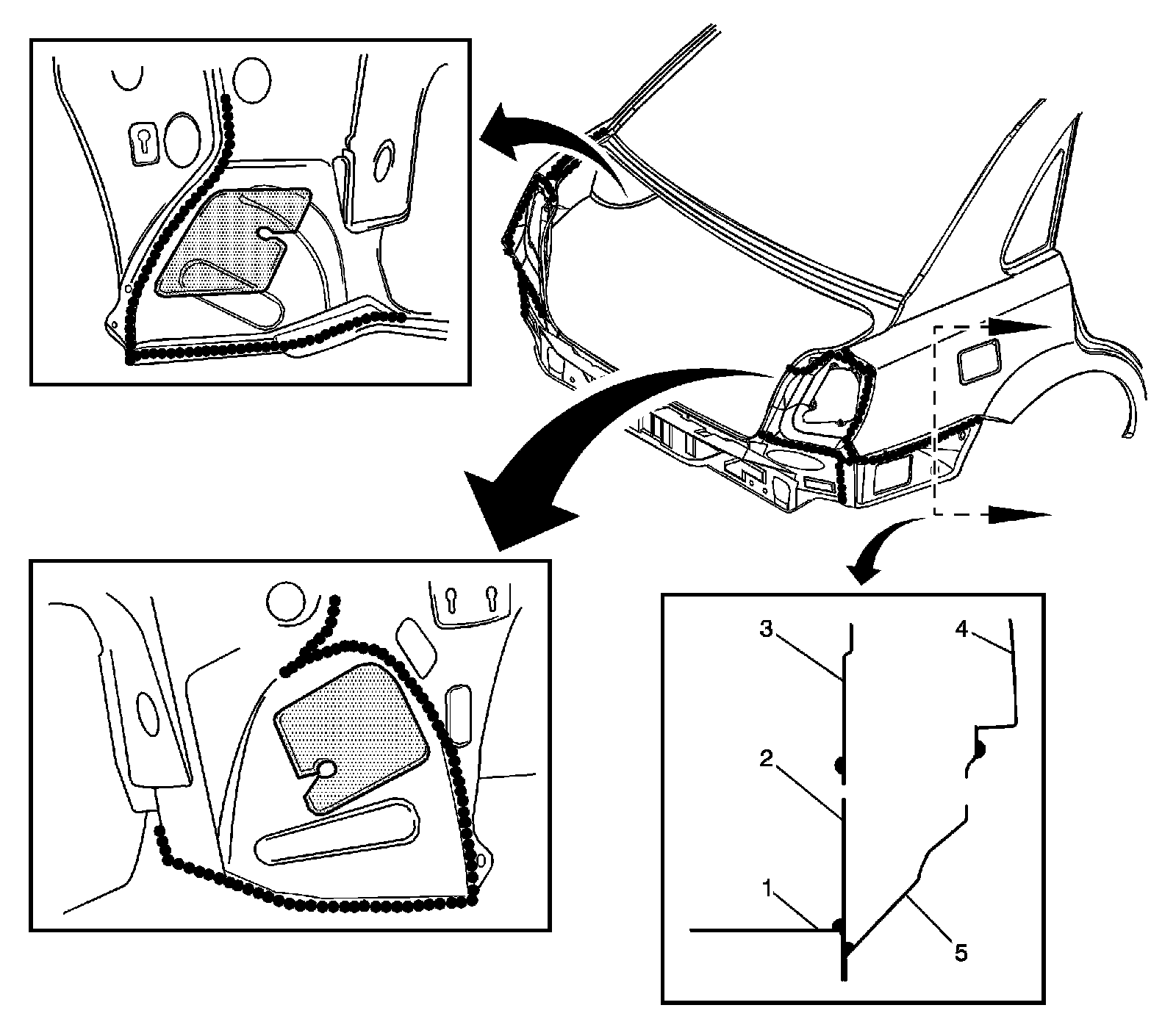

Rear Lamp and Trunk Compartment
Seal the following areas to prevent air leaks, water leaks, and rust.
1 - Floor Panel
2 - Wheelhouse Inner Panel
3 - Side Inner Panel
4 - Side Outer Panel
5 - Side Outer Extension

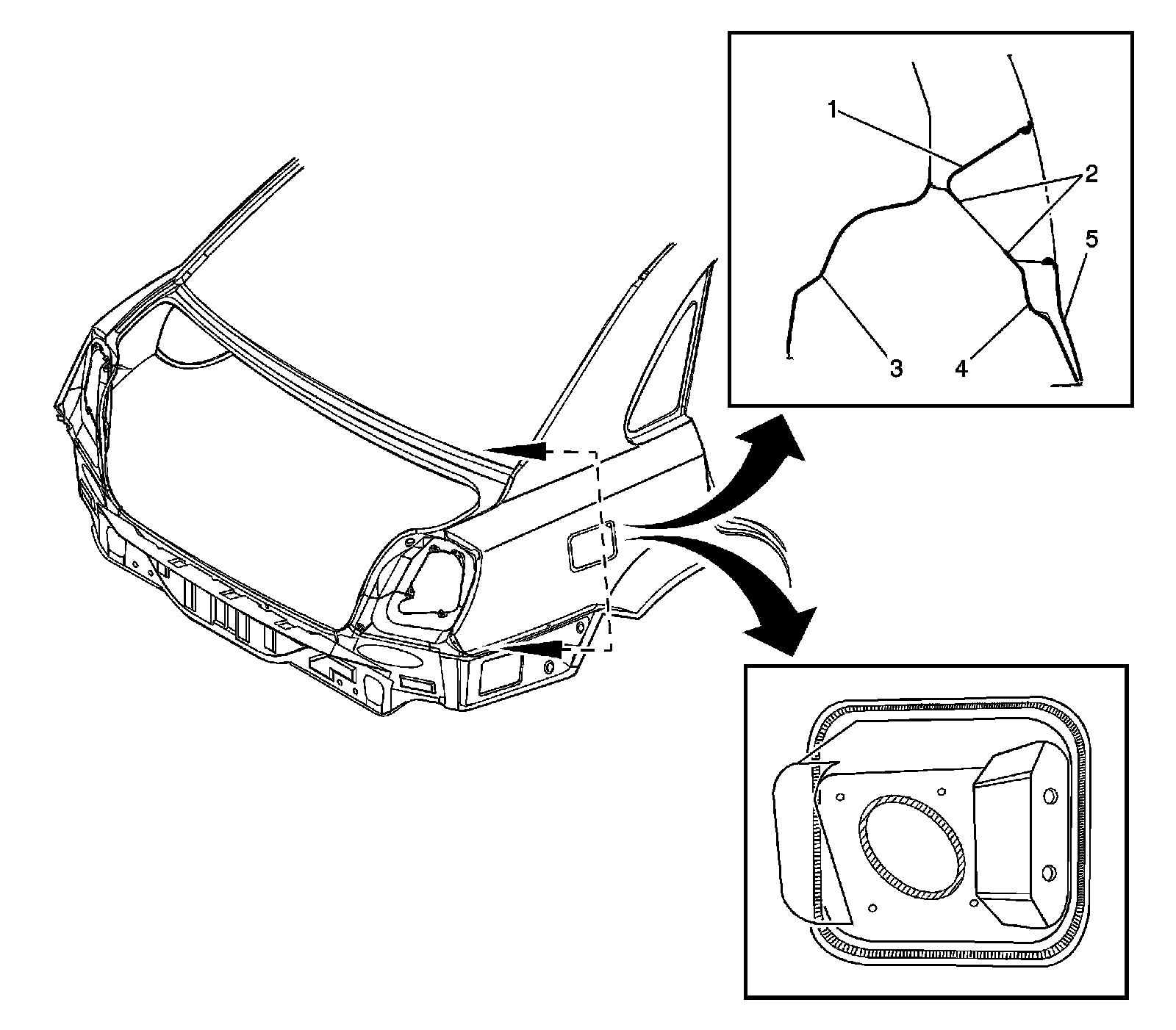

Rear Panel
Seal the following areas to prevent air leaks, water leaks, and rust.
1 - Fuel Filler Cap
2 - Spot Welding Sealer
3 - Wheel House Inner
4 - Side Inner Panel
5 - Side Outer Panel

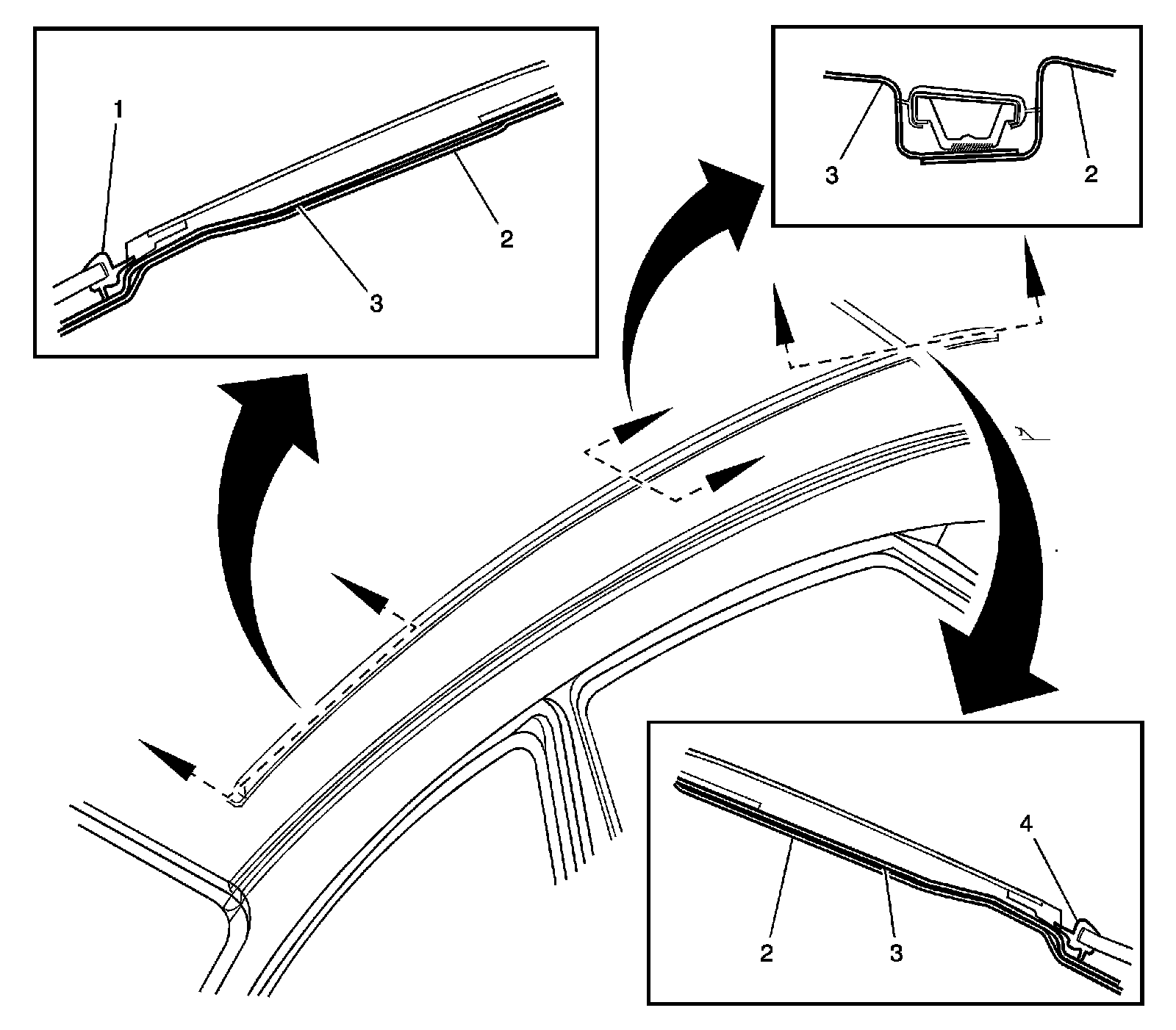

Roof (1 of 2)
Seal the following areas to prevent air leaks, water leaks, and rust.
1 - Windshield Molding
2 - Side Outer Panel
3 - Roof
4 - Back Glass Molding

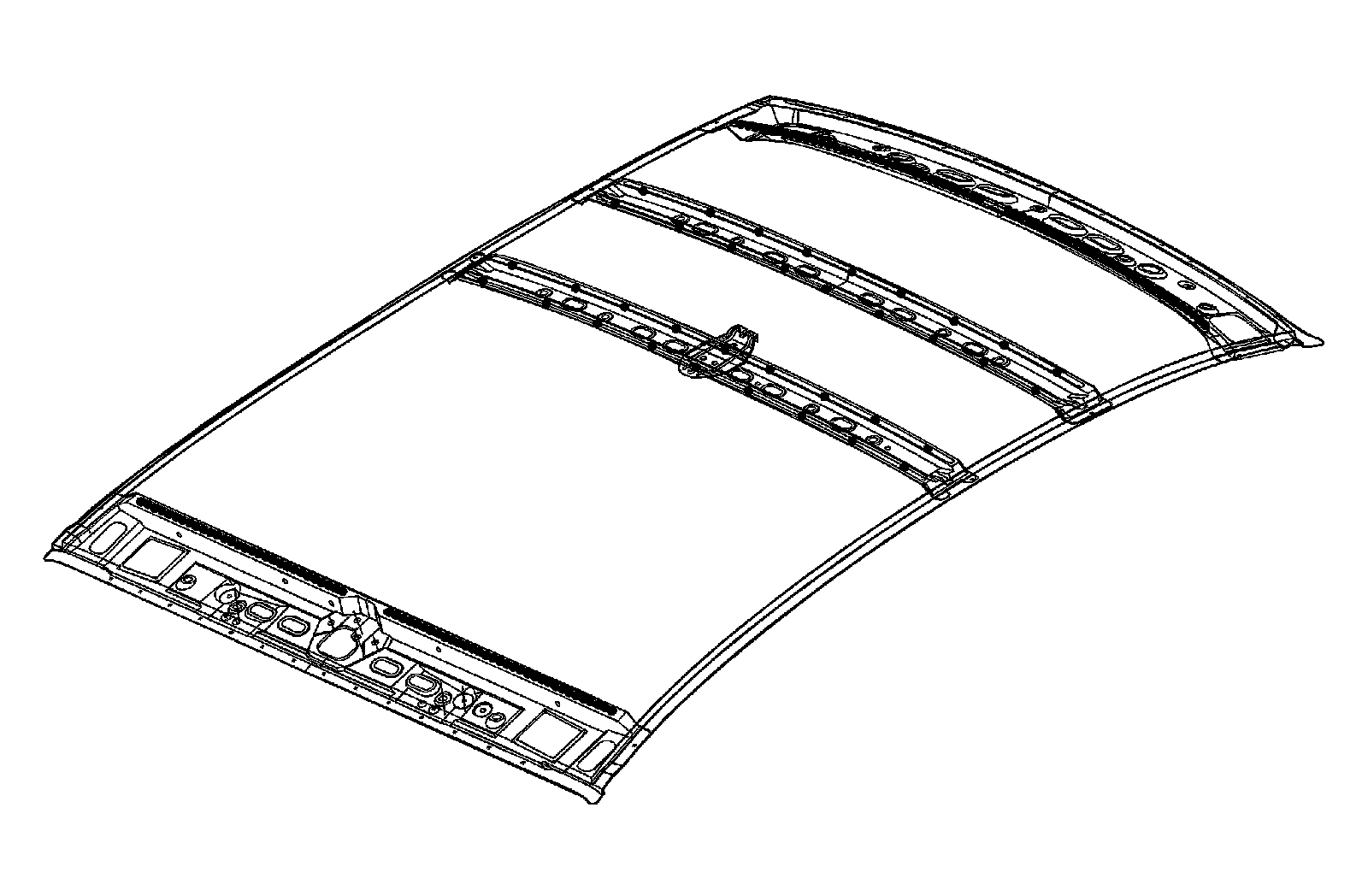

Roof (2 of 2)
Seal the following areas to prevent air leaks, water leaks, and rust.

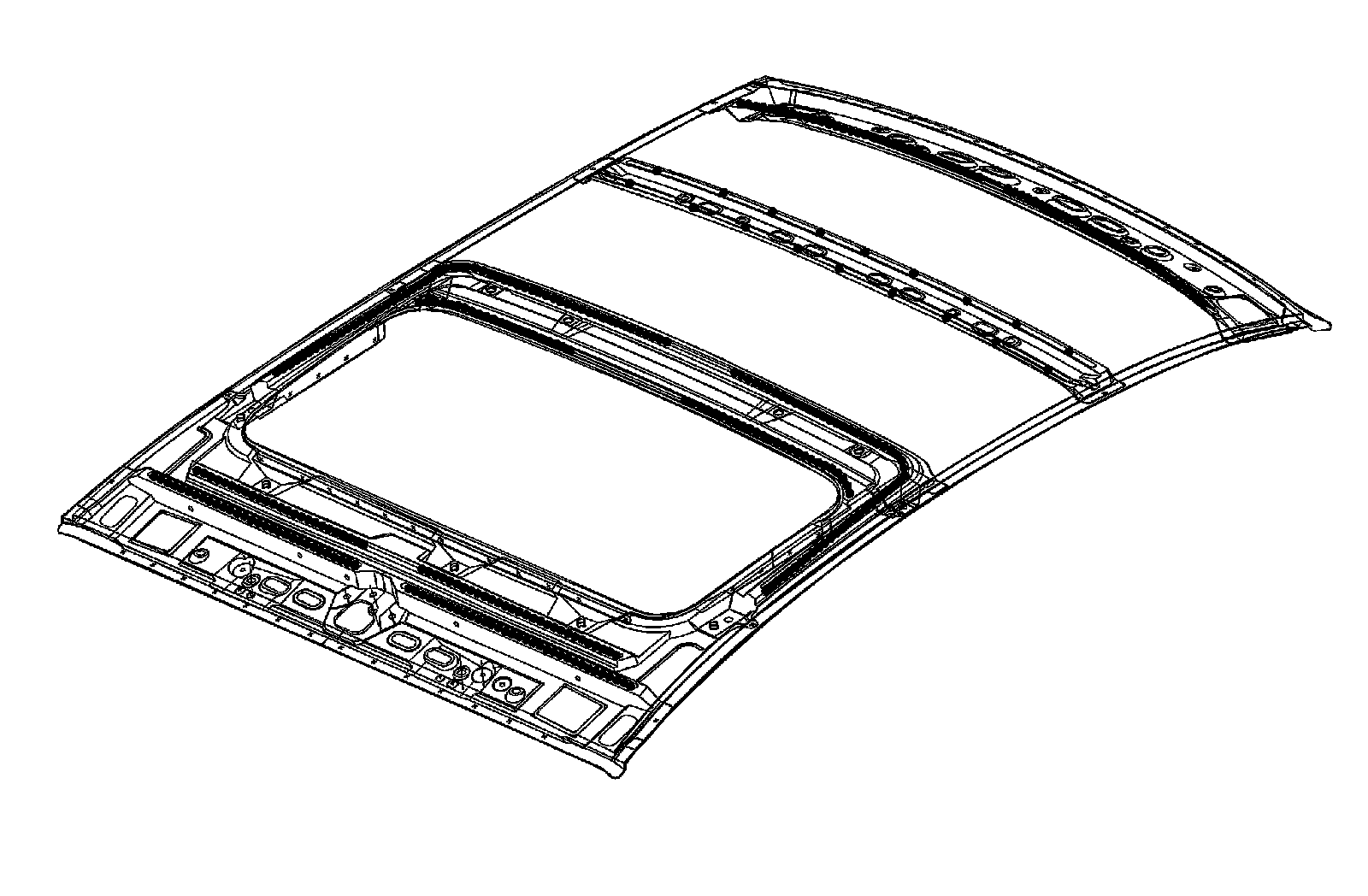

Sunroof
Seal the following areas to prevent air leaks, water leaks, and rust.
Hood and Tailgate
Important: Paint drain holes to be free of sealer (1).
Front and Rear Door
Important: Wiper sealer around the door corners (1). Avoid wiping sealer on the water drain holes (2).
