2007 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor: Service and Repair
Throttle Position Sensor Replacement (wo/Throttle Actuator Control)
Removal Procedure
Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.
1. Disconnect the negative battery cable.
2. Remove the air intake tube and resonator.

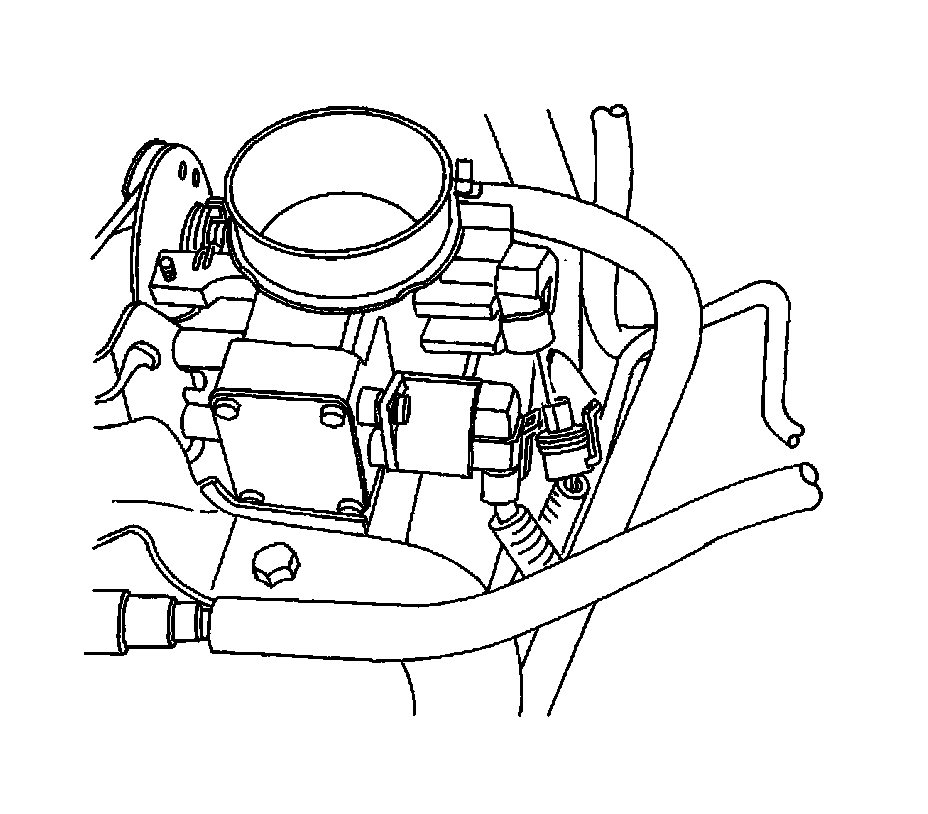

3. Disconnect the throttle position (TP) sensor connector.
4. Remove the TP sensor retaining bolts and the TP sensor.
Installation Procedure
1. With the throttle valve closed, position the TP sensor on the throttle shaft. Align the TP sensor with the bolt holes.
Notice: Refer to Fastener Notice Fastener Notice in Cautions and Notices.
2. Install the TP sensor retaining bolts.
Tighten the throttle position sensor retaining bolts to 2 Nm (18 lb in).
3. Connect the TP sensor connector.
4. Install the air intake tube and resonator.
5. Connect the negative battery cable.
