2007 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Service and Repair
Accelerator Pedal Position Sensor Replacement
Removal Procedure
1. Turn the ignition switch to the OFF position.
2. Disconnect the electronic throttle control (ETC) connector from the accelerator pedal.

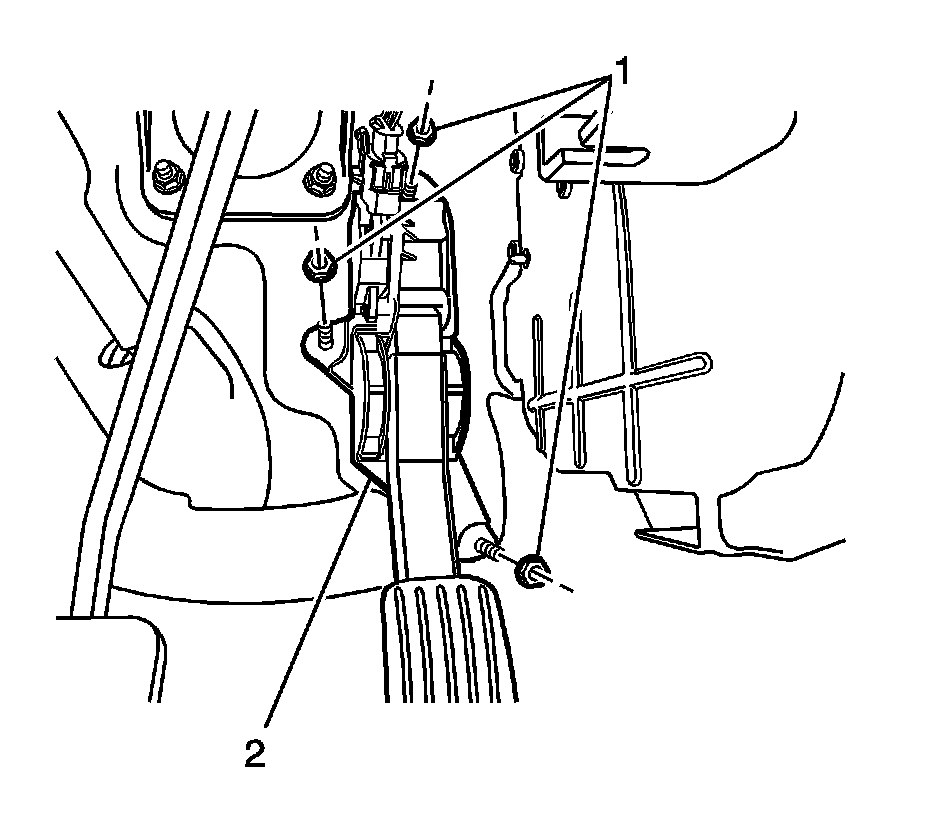

3. Remove the 3 accelerator pedal retaining nuts.
4. Remove the accelerator pedal.
Installation Procedure
1. Position the accelerator pedal.
Notice: Refer to Fastener Notice Fastener Notice.
2. Install the 3 accelerator pedal retaining nuts.
Tighten the accelerator pedal retaining nuts to 19 Nm (14 lb ft).
3. Connect the ETC connector to the accelerator pedal.
