2007 Chevrolet Optra (CANADA) L4-2.0LFACTORY OEM SERVICE PROCEDURE
Keyless Entry: Locations

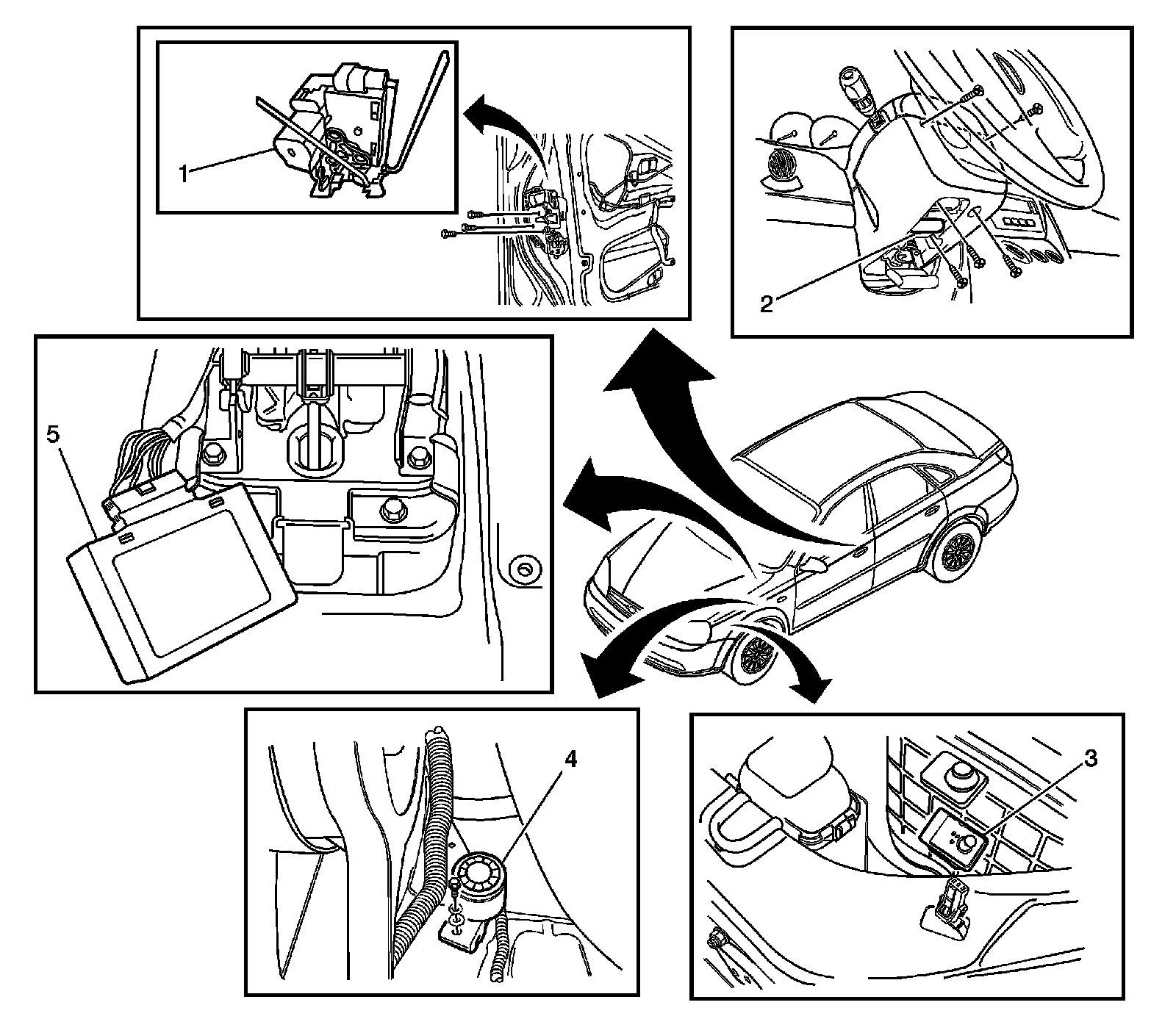

Remote Function Component Views
Anti-theft Tamper Switch, Theft Deterrent Control Module, Hood Ajar Switch, Alarm
1 - Door Latch - Front (Tamper Switch) (Left Shown, Right Similar)
2 - Theft Deterrent Control Module
3 - Hood Ajar Switch
4 - Theft Deterrent Alarm
5 - Remote Door Lock Reciever
