HOMESERVICE MANUALSCHEVROLET2007MONTE CARLO V8-5.3LREPAIR AND DIAGNOSISPOWERTRAIN MANAGEMENTCOMPUTERS AND CONTROL SYSTEMSBODY CONTROL MODULEDIAGRAMS
2007 Chevrolet Monte Carlo V8-5.3L
Body Control Module: Diagrams
2007 Chevrolet Monte Carlo V8-5.3LSECTION Diagrams

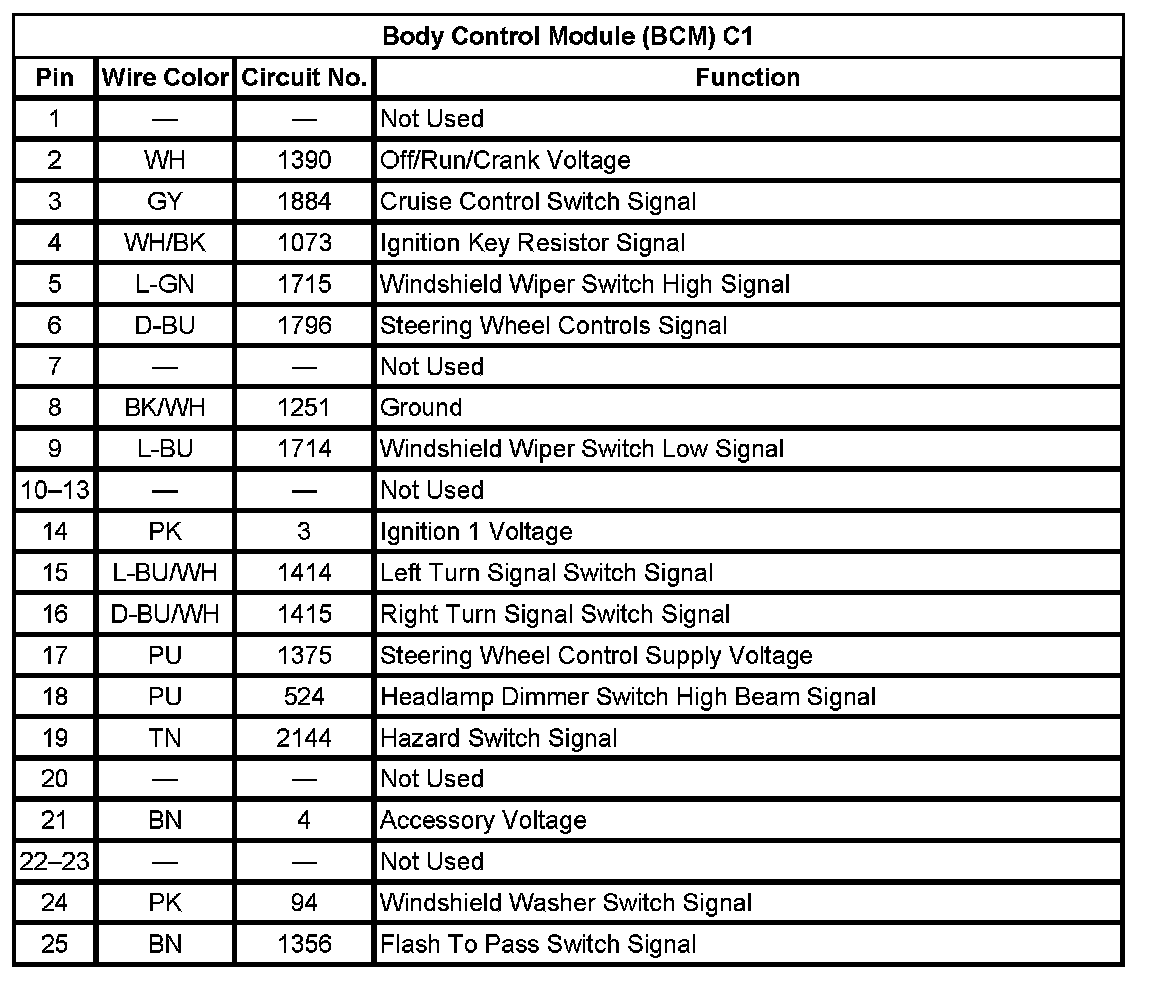

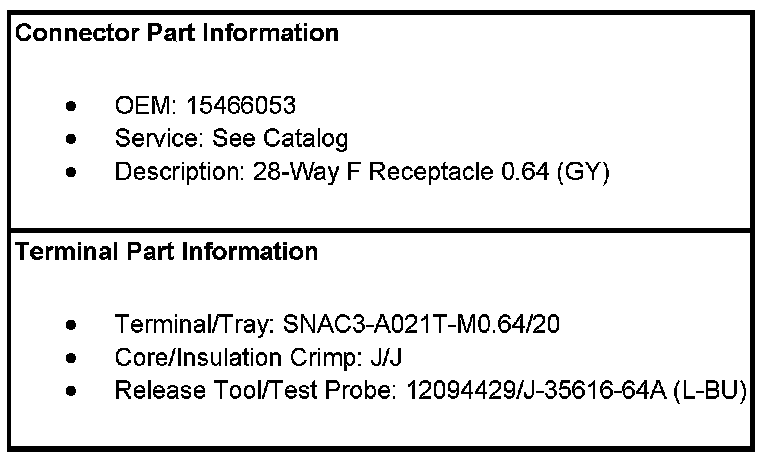

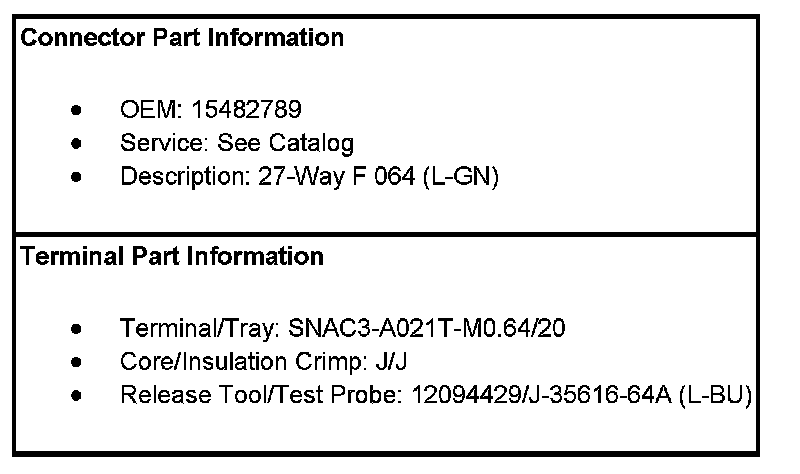

Body Control Module (BCM) C1

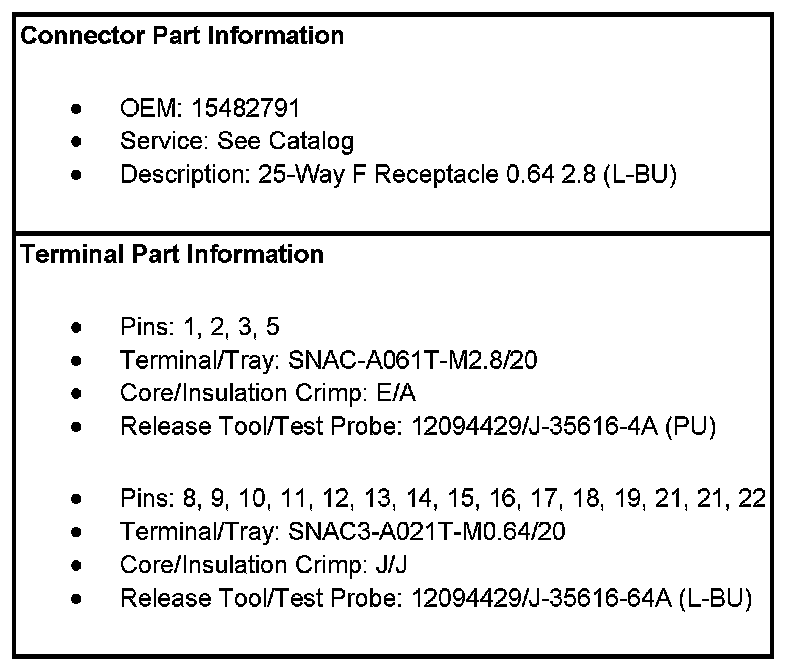

Pin 1 To Pin 25:

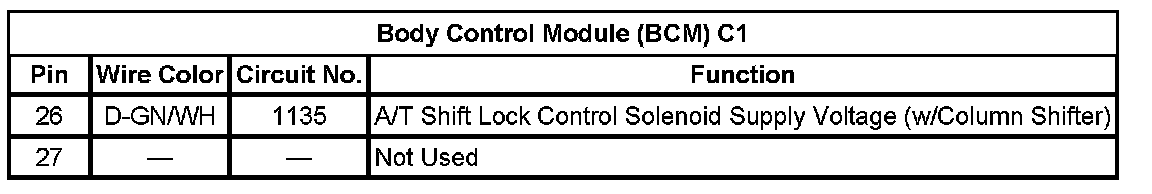

Pin 26 To Pin 27:

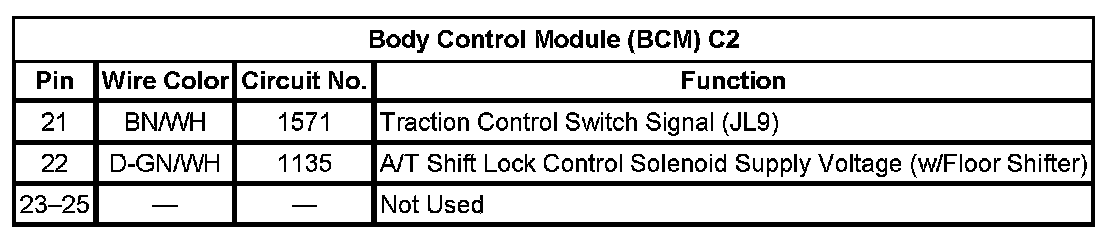

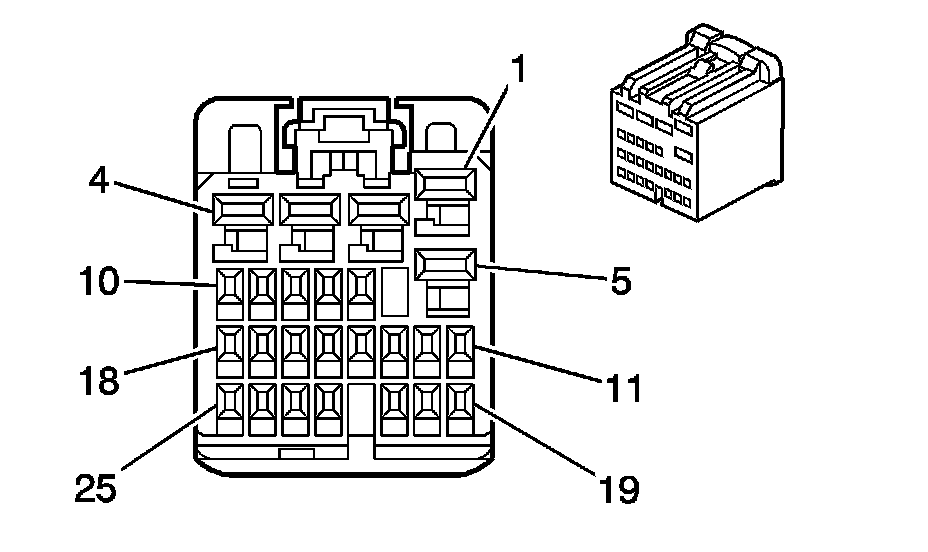

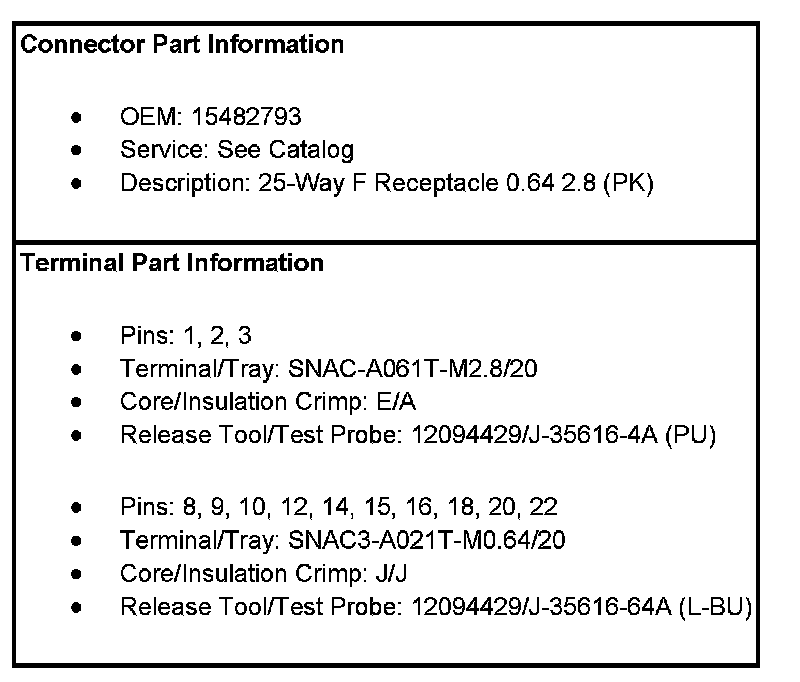

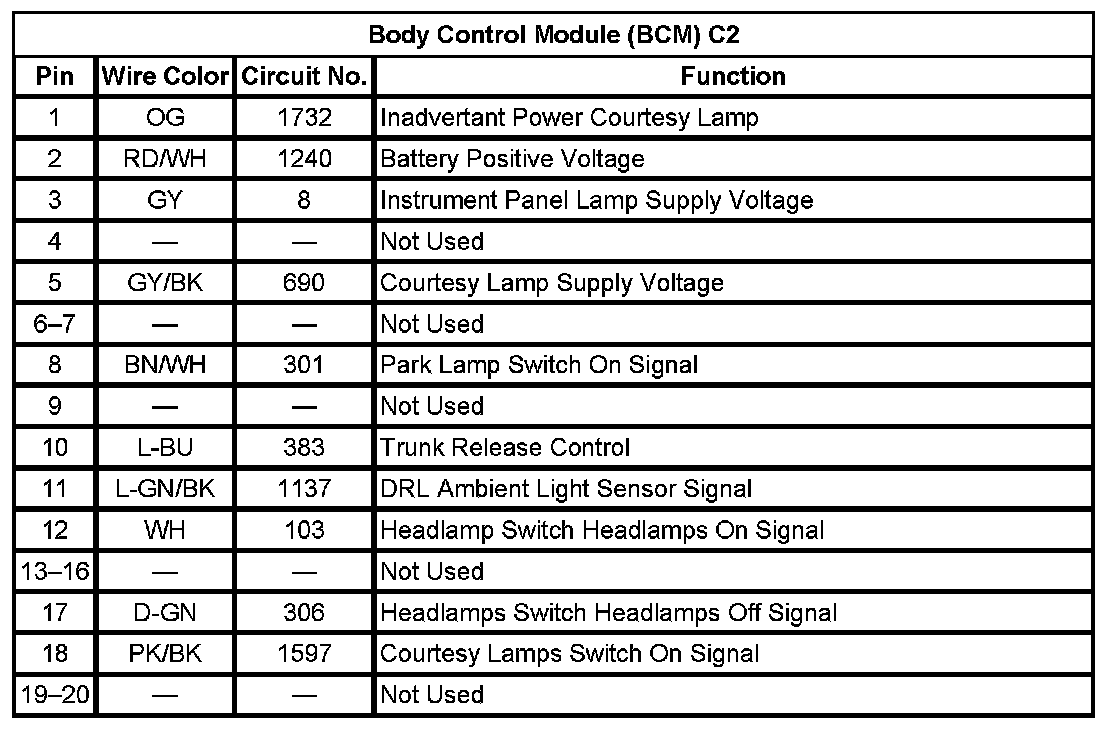

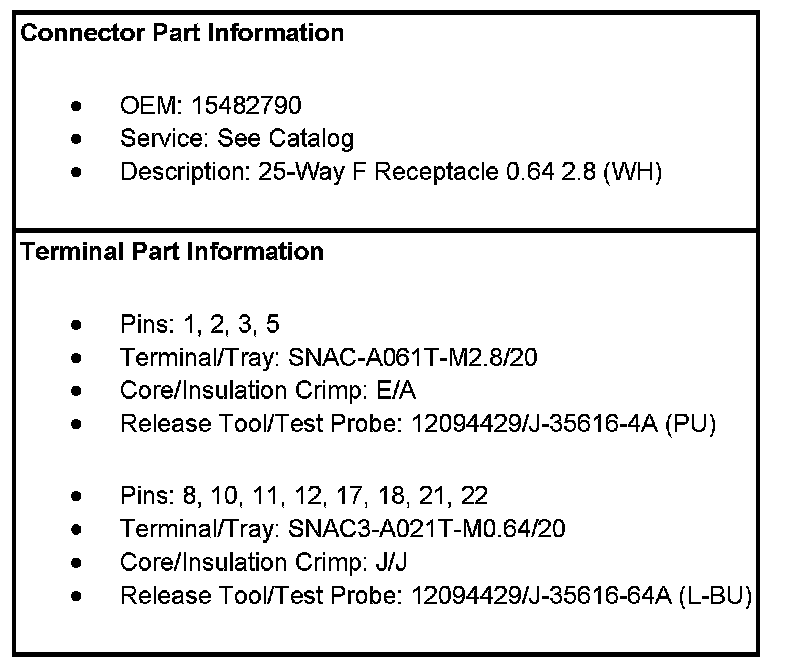

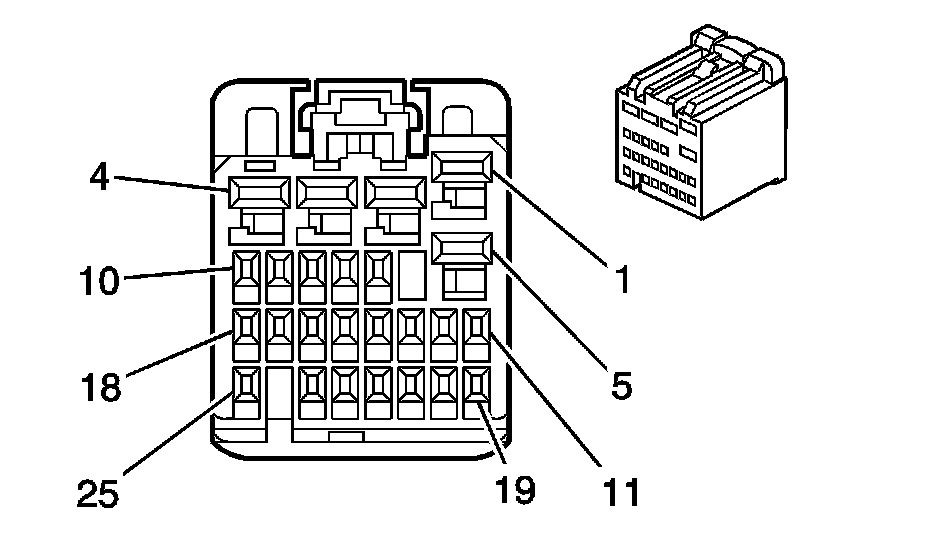

Body Control Module (BCM) C2
Pin 1 To Pin 20:
Pin 21 To Pin 25:

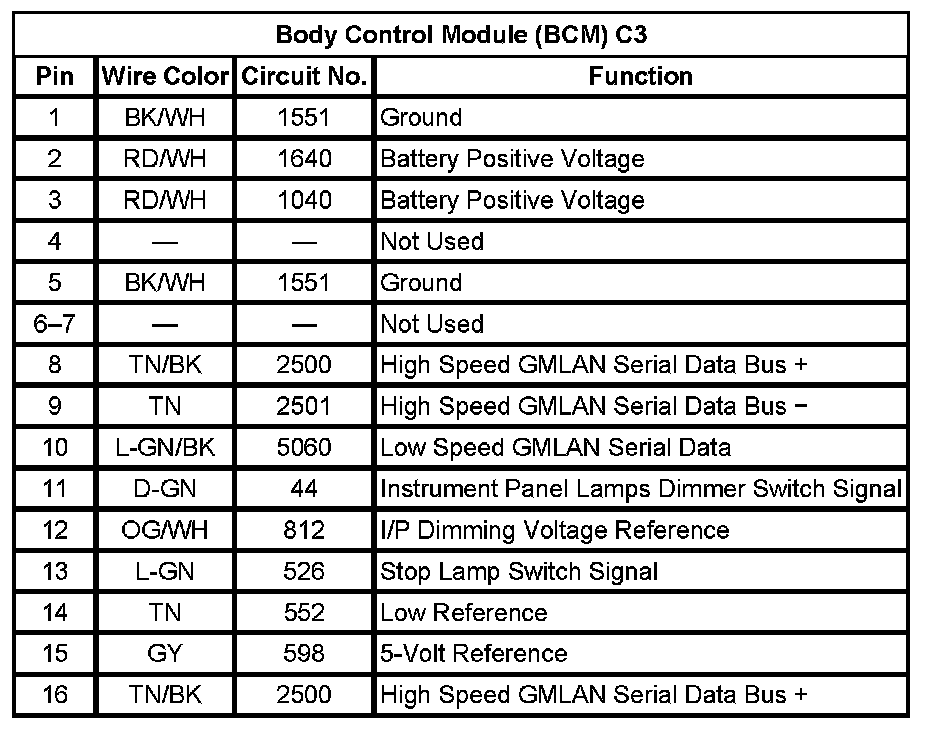

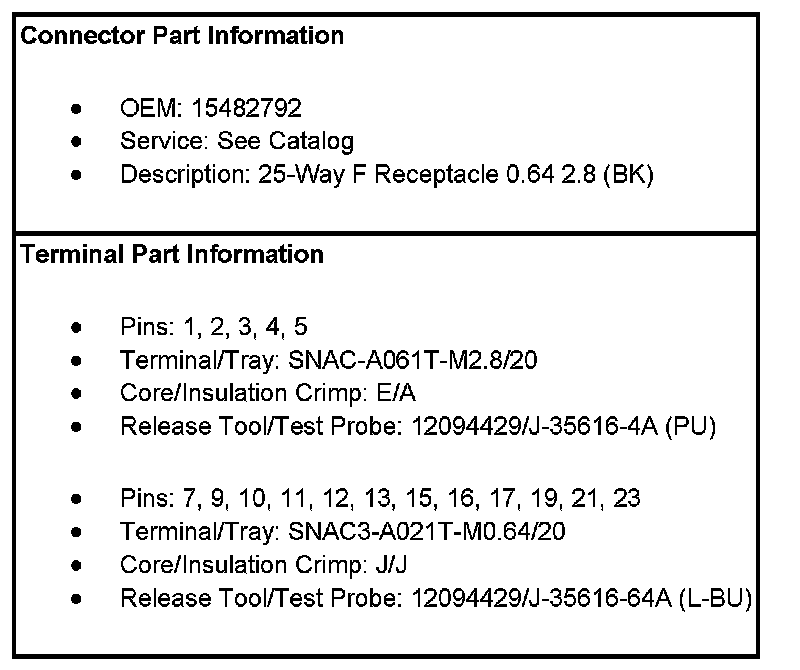

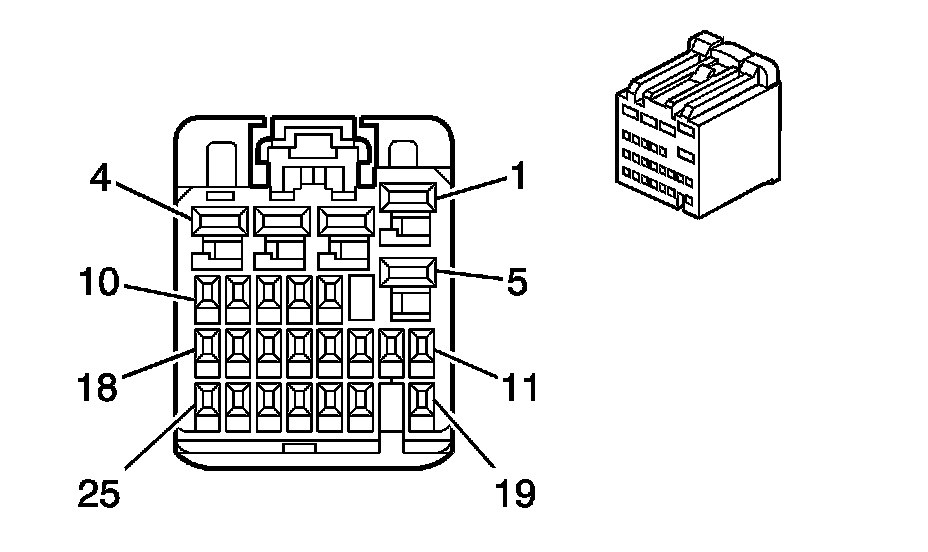

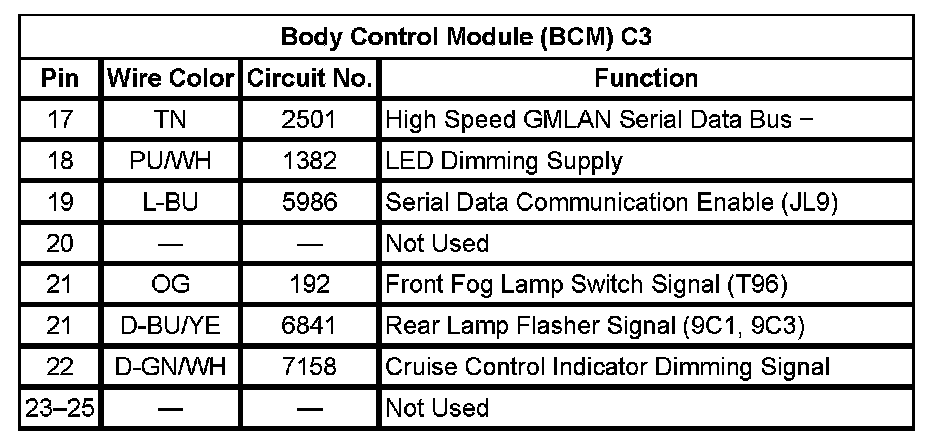

Body Control Module (BCM) C3
Pin 1 To Pin 16:
Pin 17 To Pin 25:

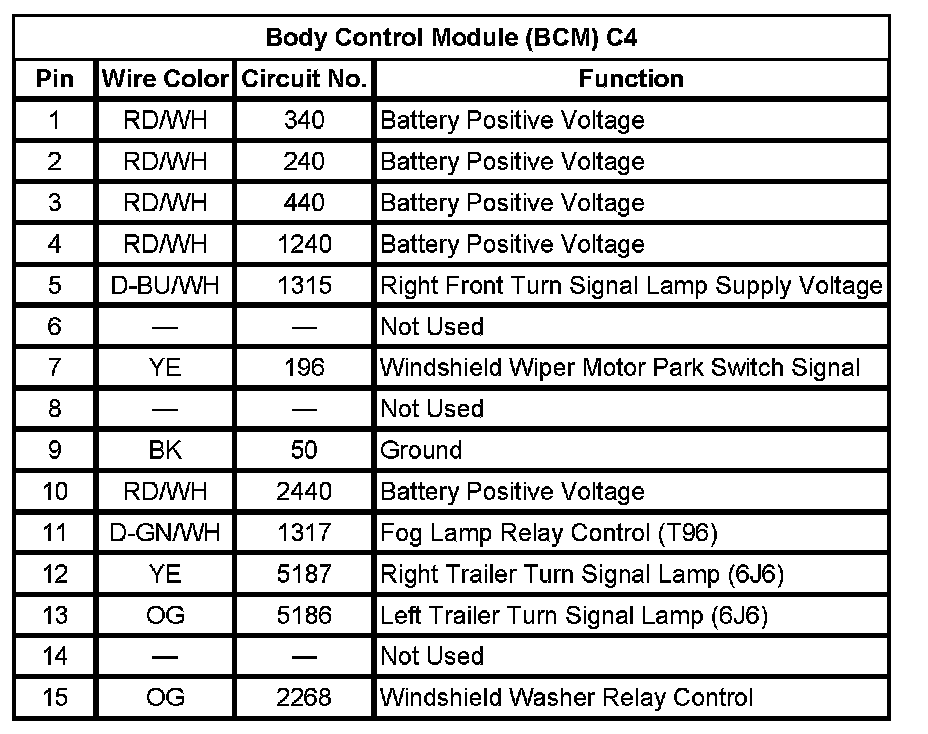

Body Control Module (BCM) C4
Pin 1 To Pin 15:

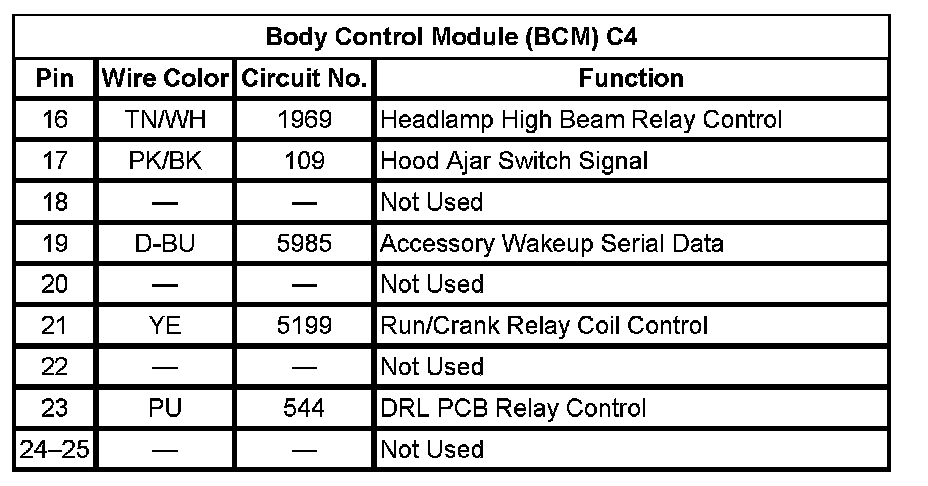

Pin 16 To Pin 25:

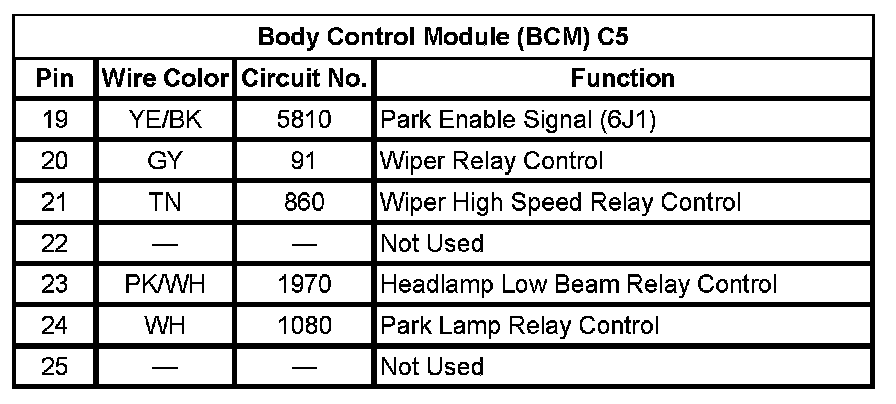

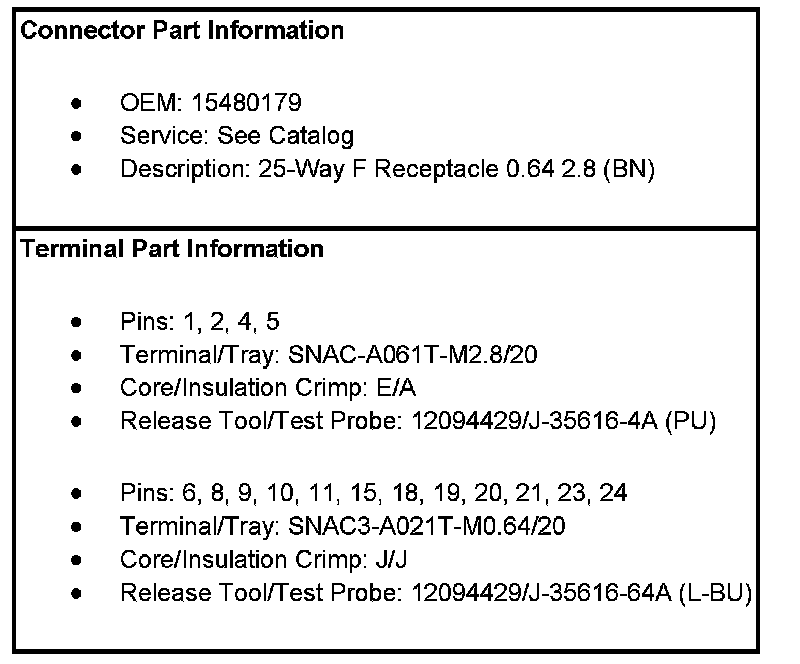

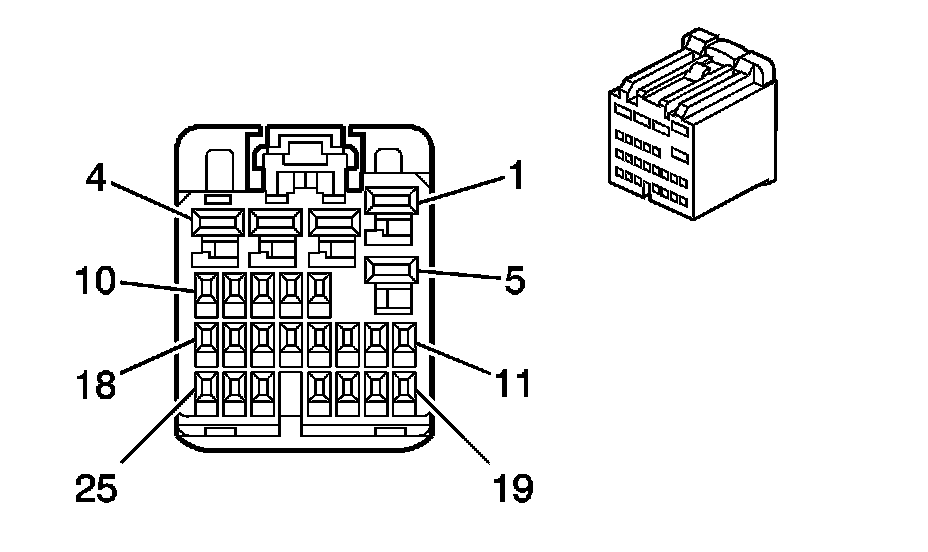

Body Control Module (BCM) C5

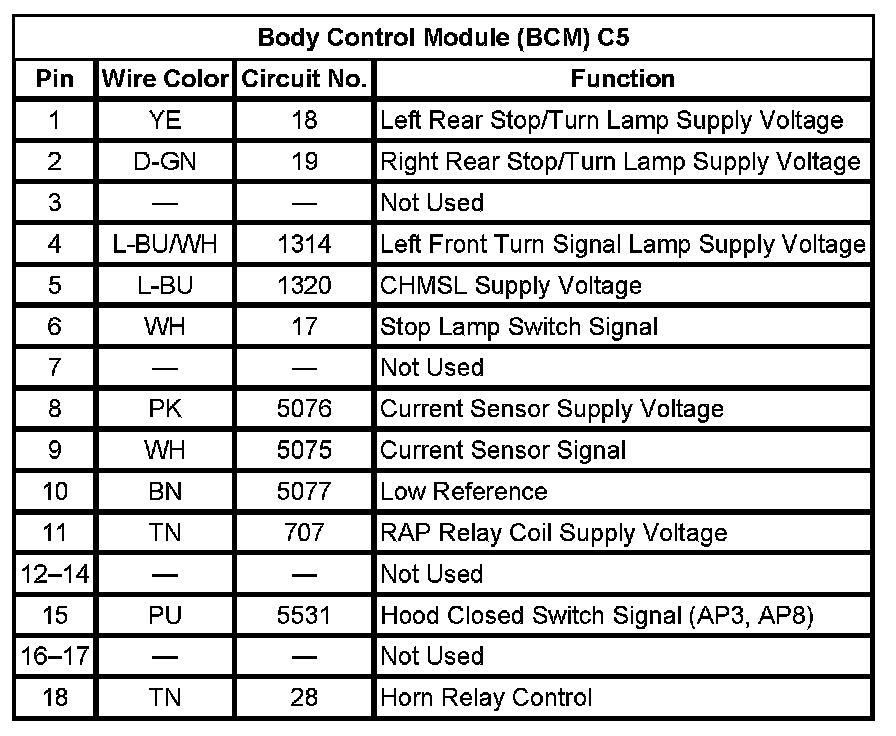

Pin 1 To Pin 18:
Pin 19 To Pin 25:

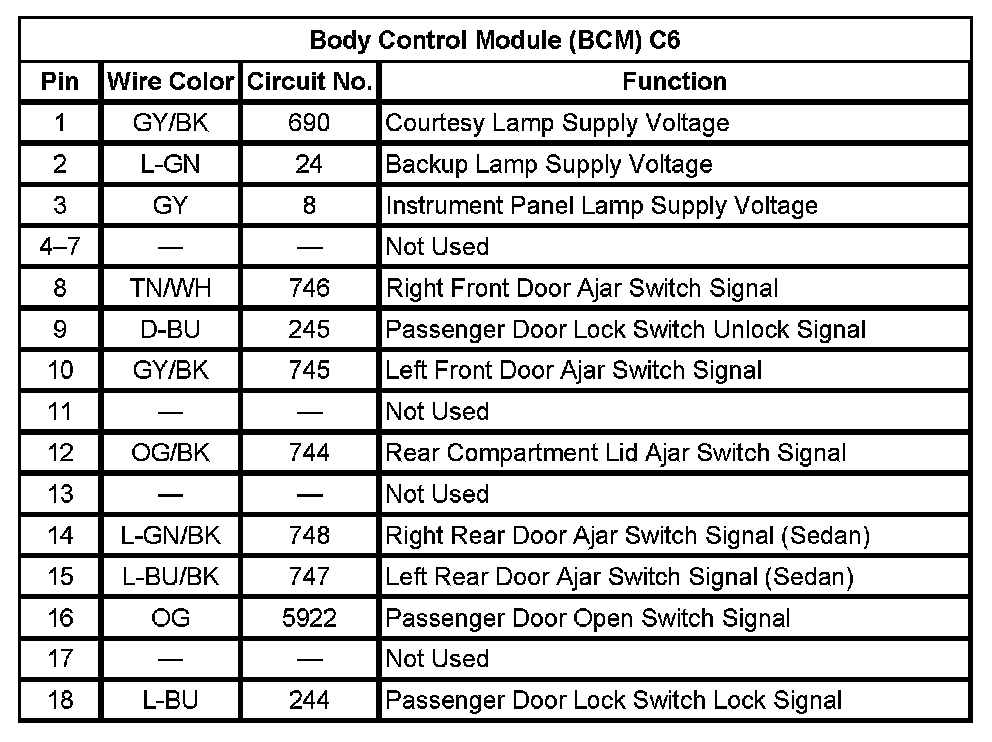

Body Control Module (BCM) C6
Pin 1 To Pin 18:

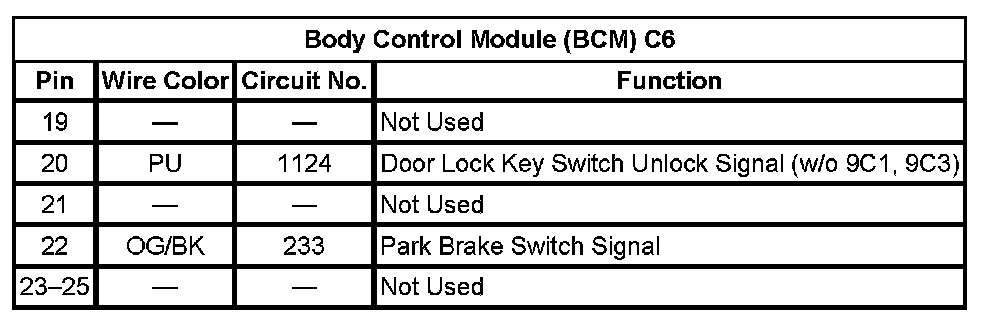

Pin 19 To Pin 25:

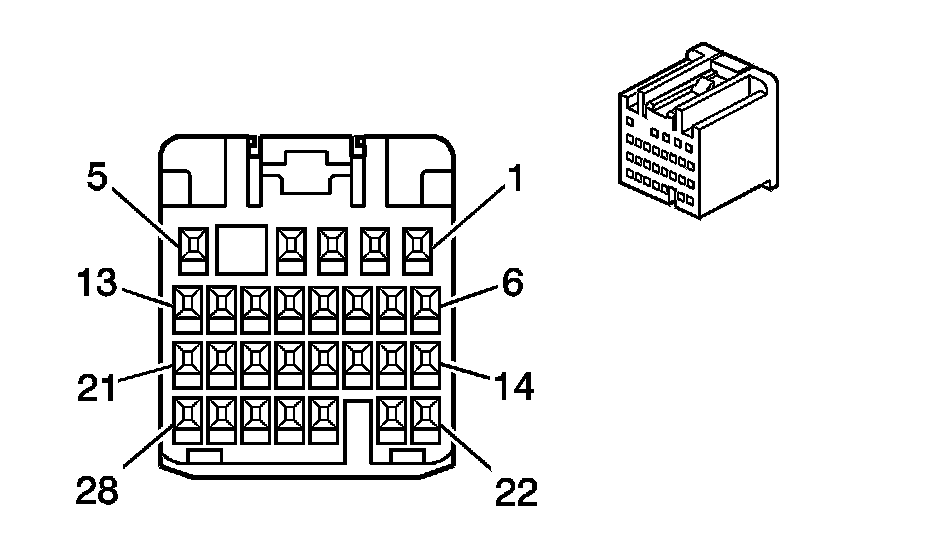

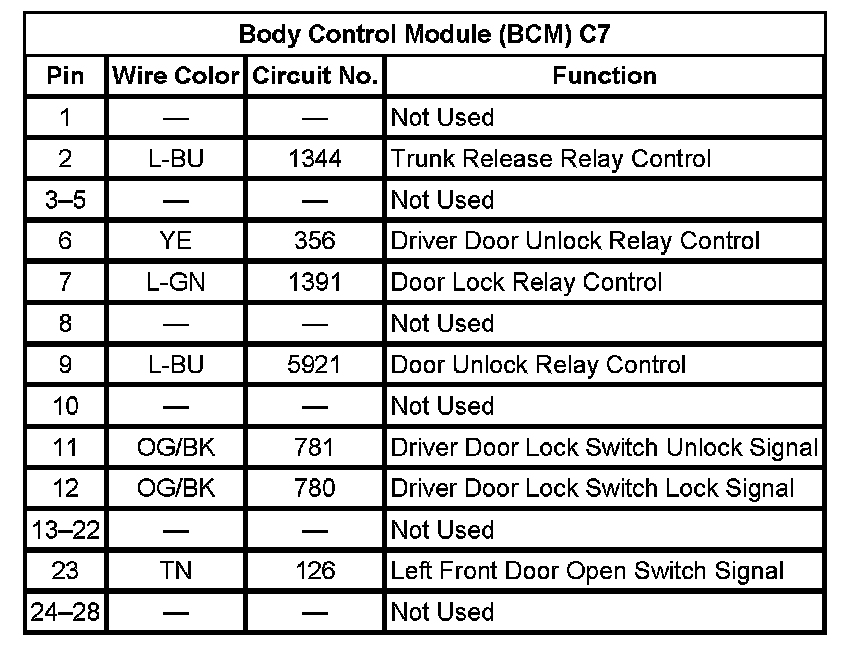

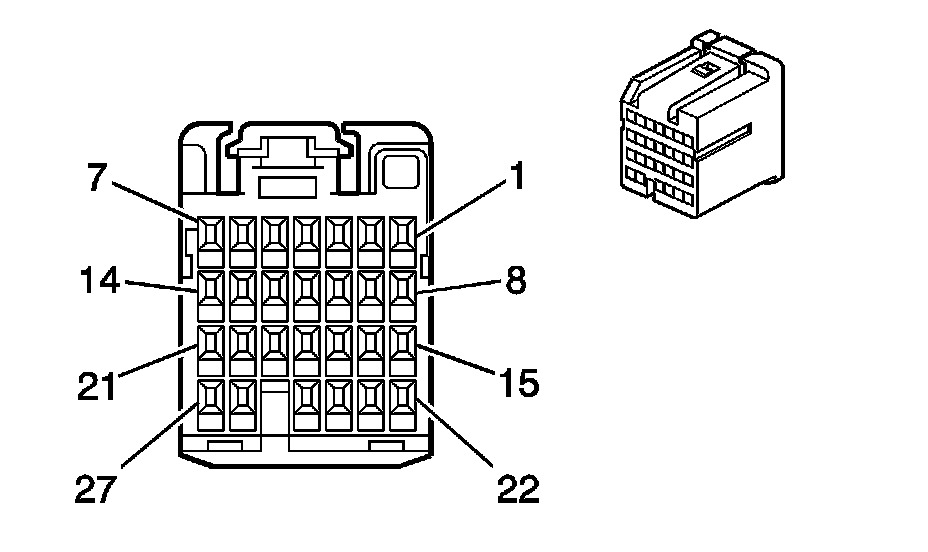

Body Control Module (BCM) C7
RENDER: 1.0x
