2007 Chevrolet Malibu L4-2.2LFACTORY OEM SERVICE PROCEDURE

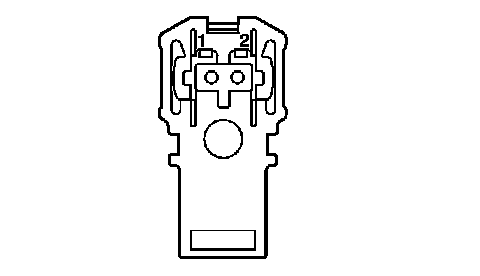

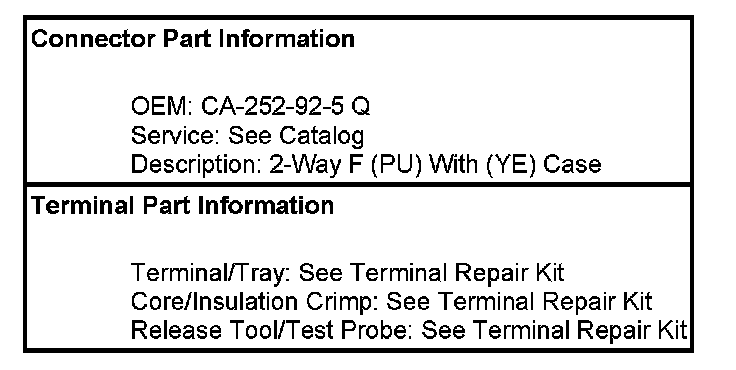

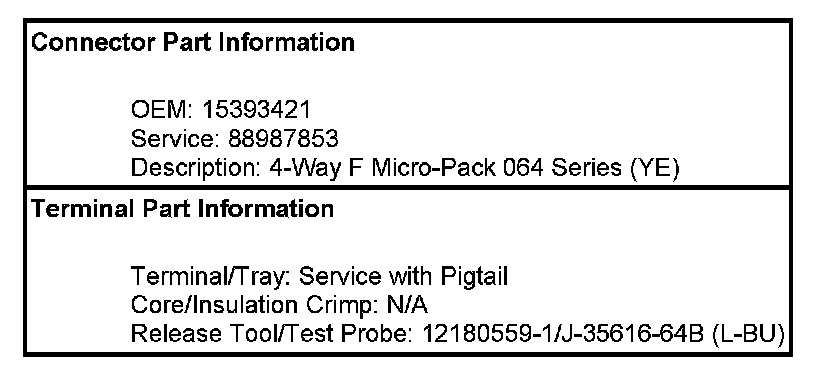

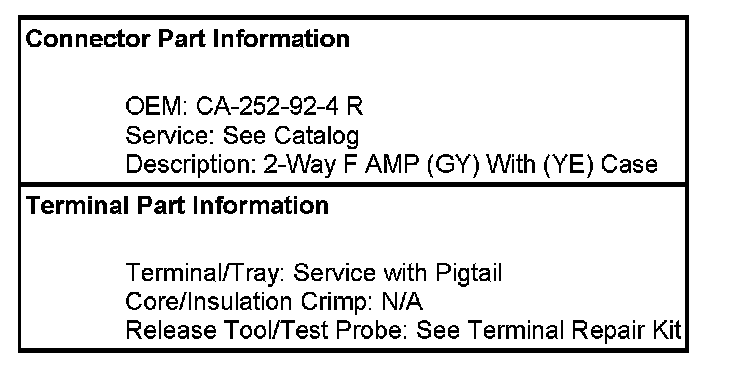

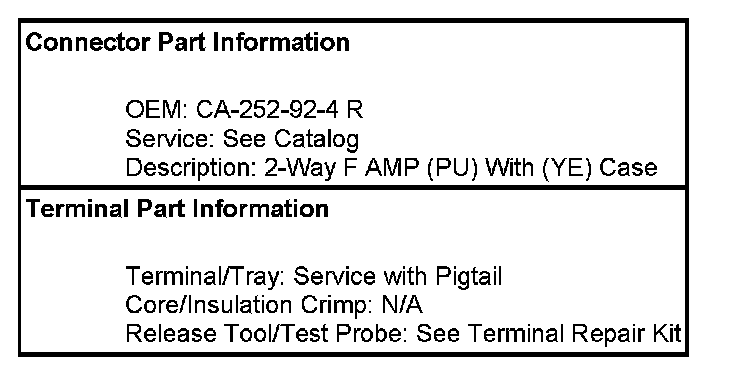

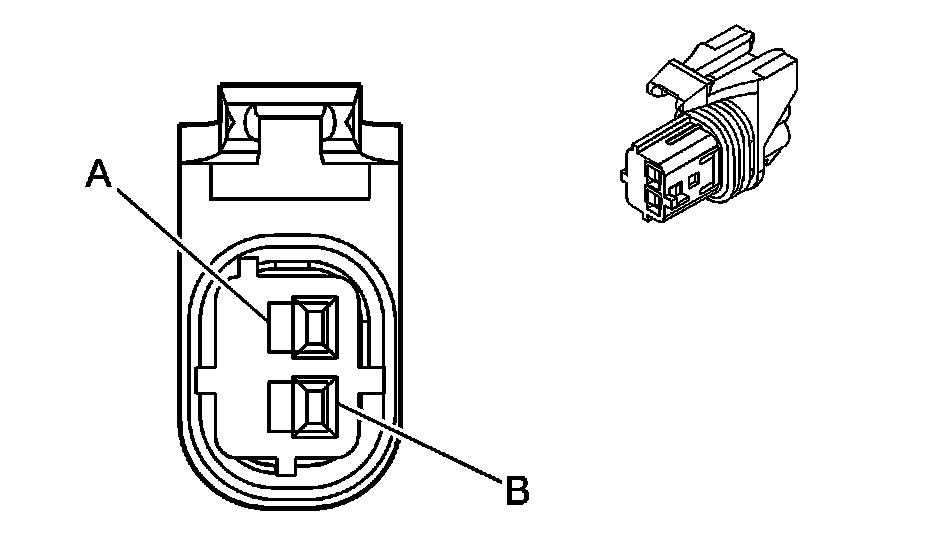

Connector Views
SIR Connector End Views

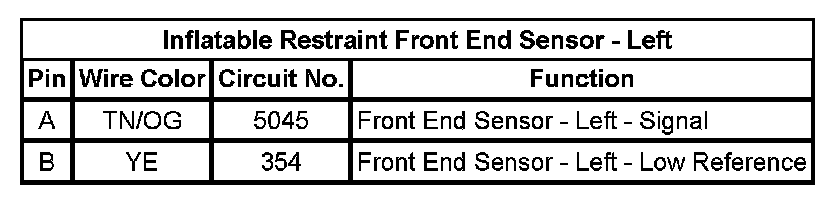

Inflatable Restraint Front End Sensor - Left

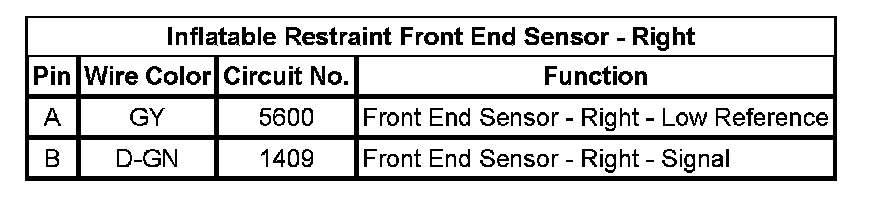

Inflatable Restraint Front End Sensor - Right

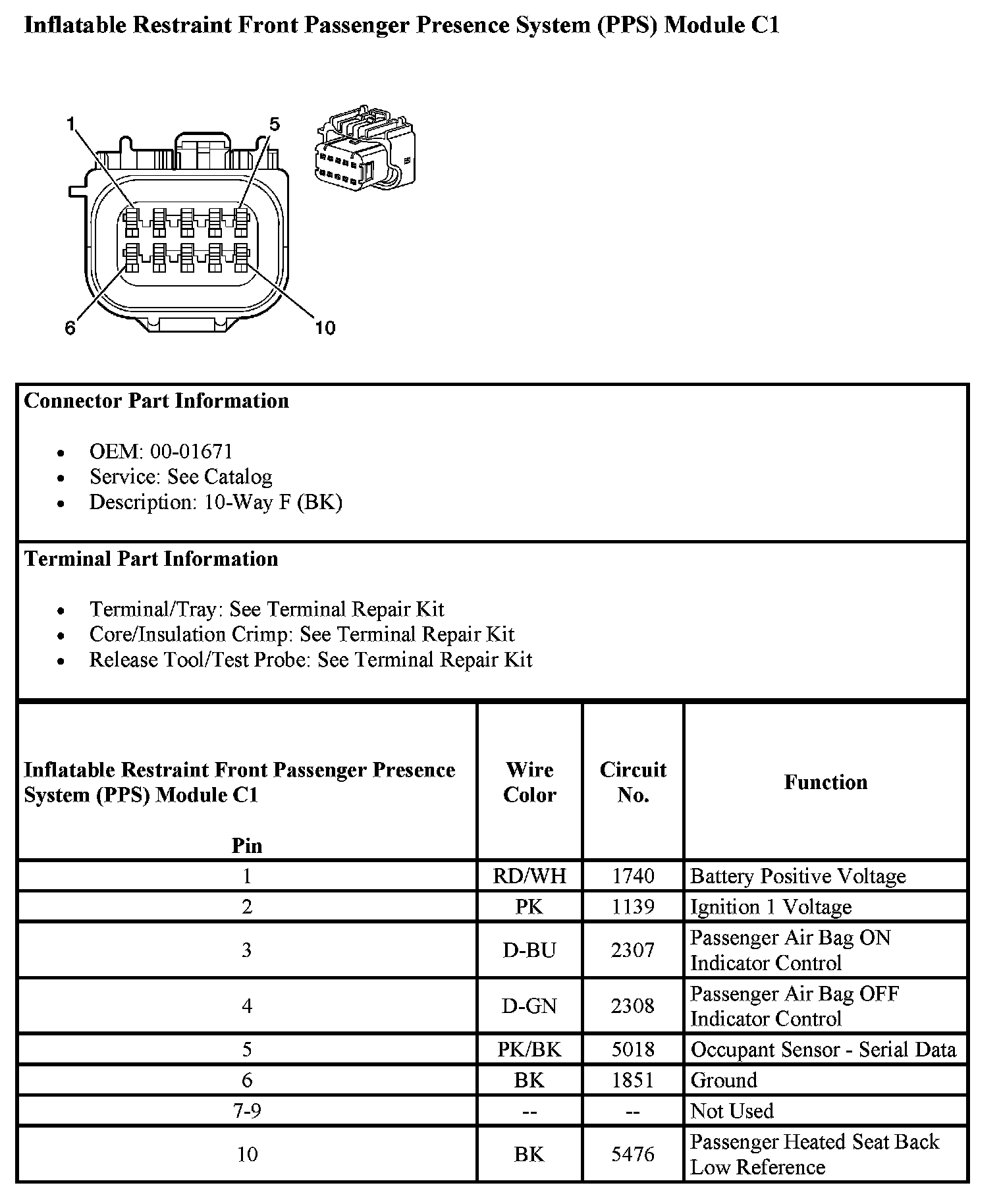

Inflatable Restraint Front Passenger Presence System (PPS) Module C1

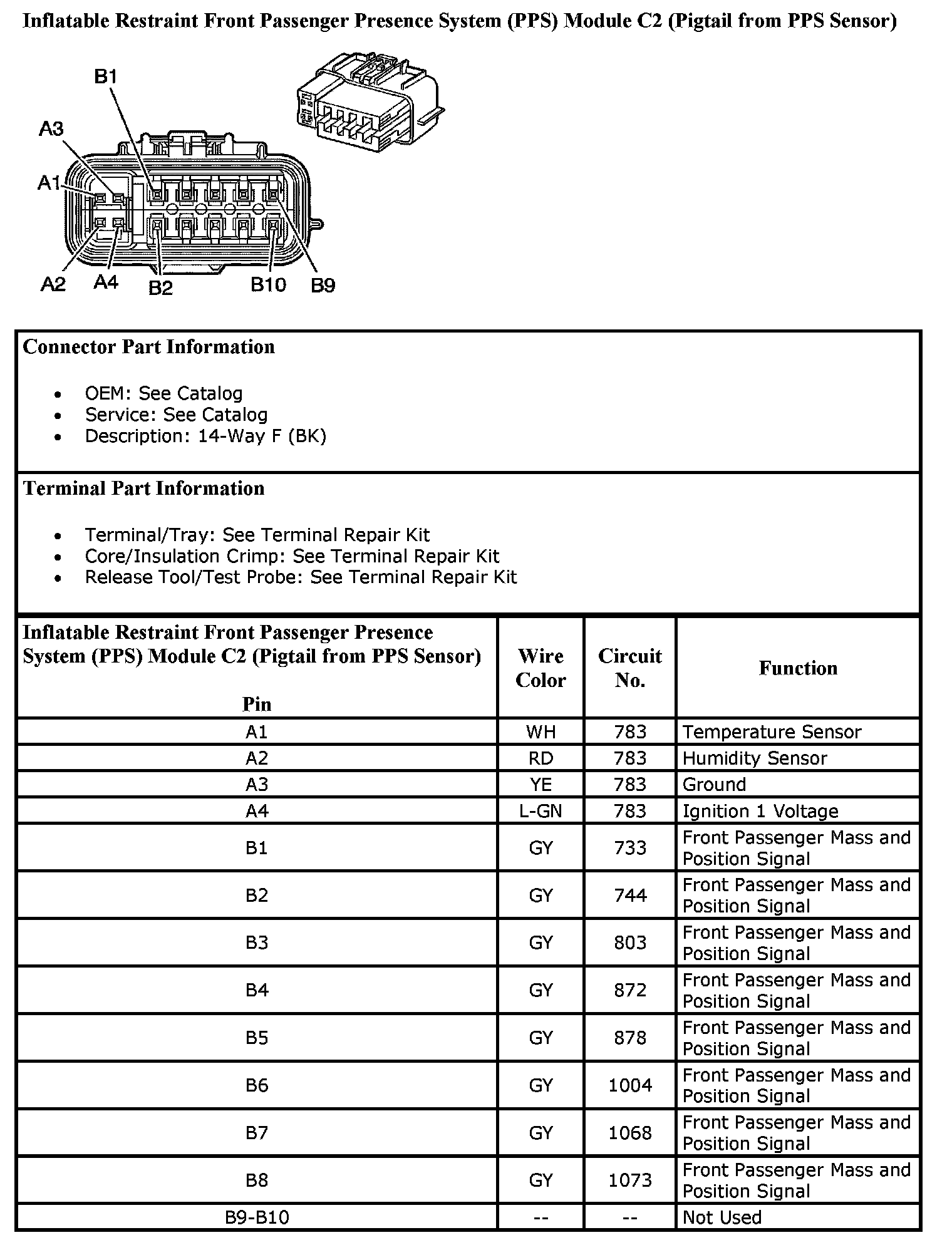

Inflatable Restraint Front Passenger Presence System (PPS) Module C2 (Pigtail from PPS Sensor)

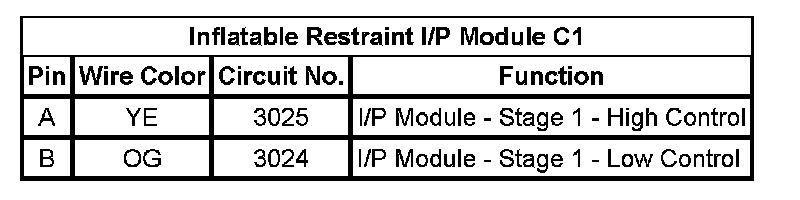

Inflatable Restraint I/P Module C1

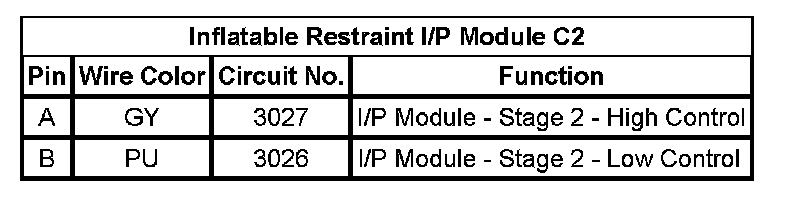

Inflatable Restraint I/P Module C2

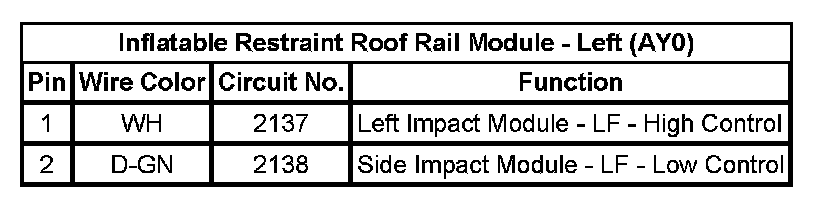

Inflatable Restraint Roof Rail Module - Left (AY0)

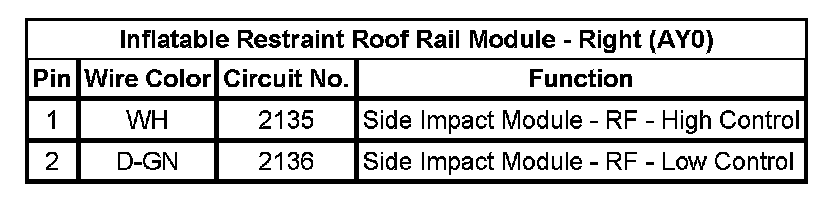

Inflatable Restraint Roof Rail Module - Right (AY0)

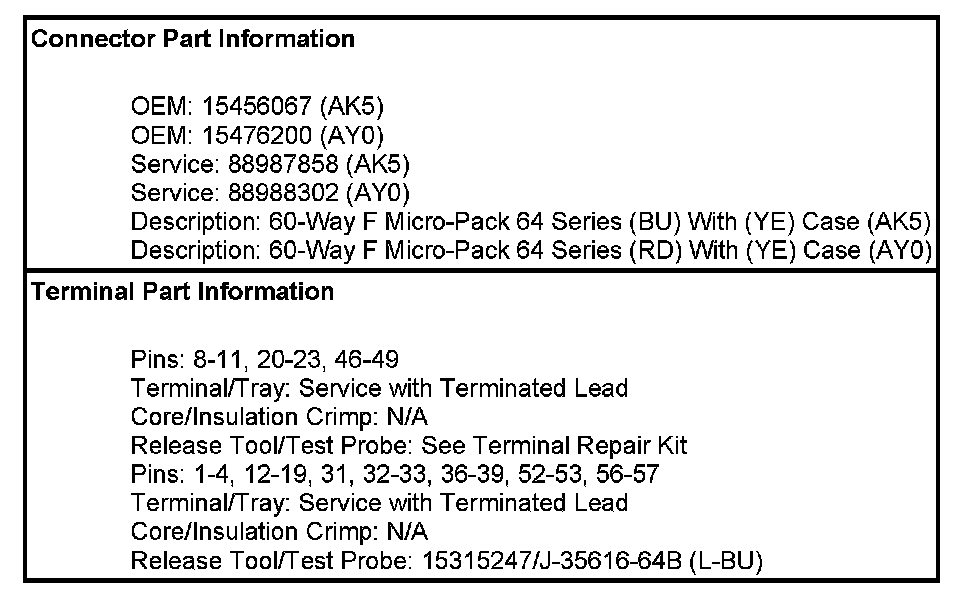

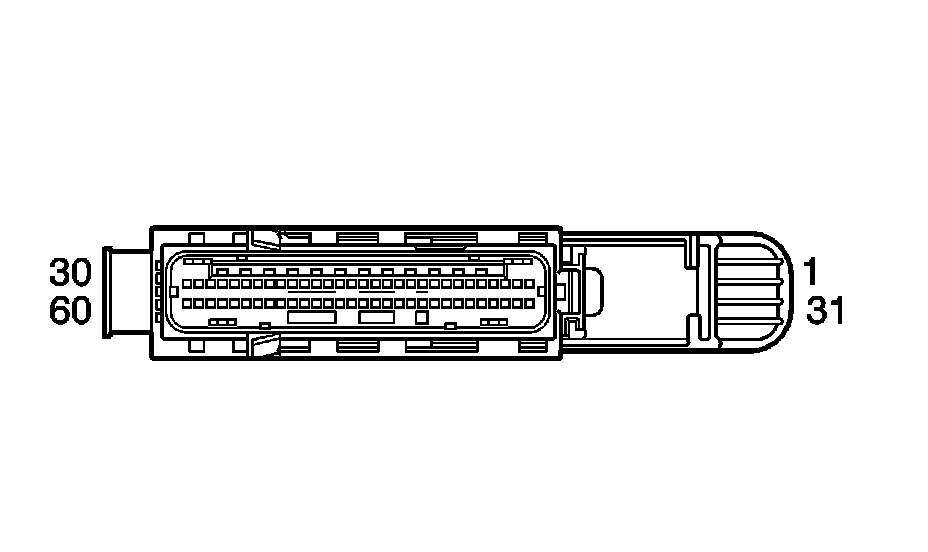

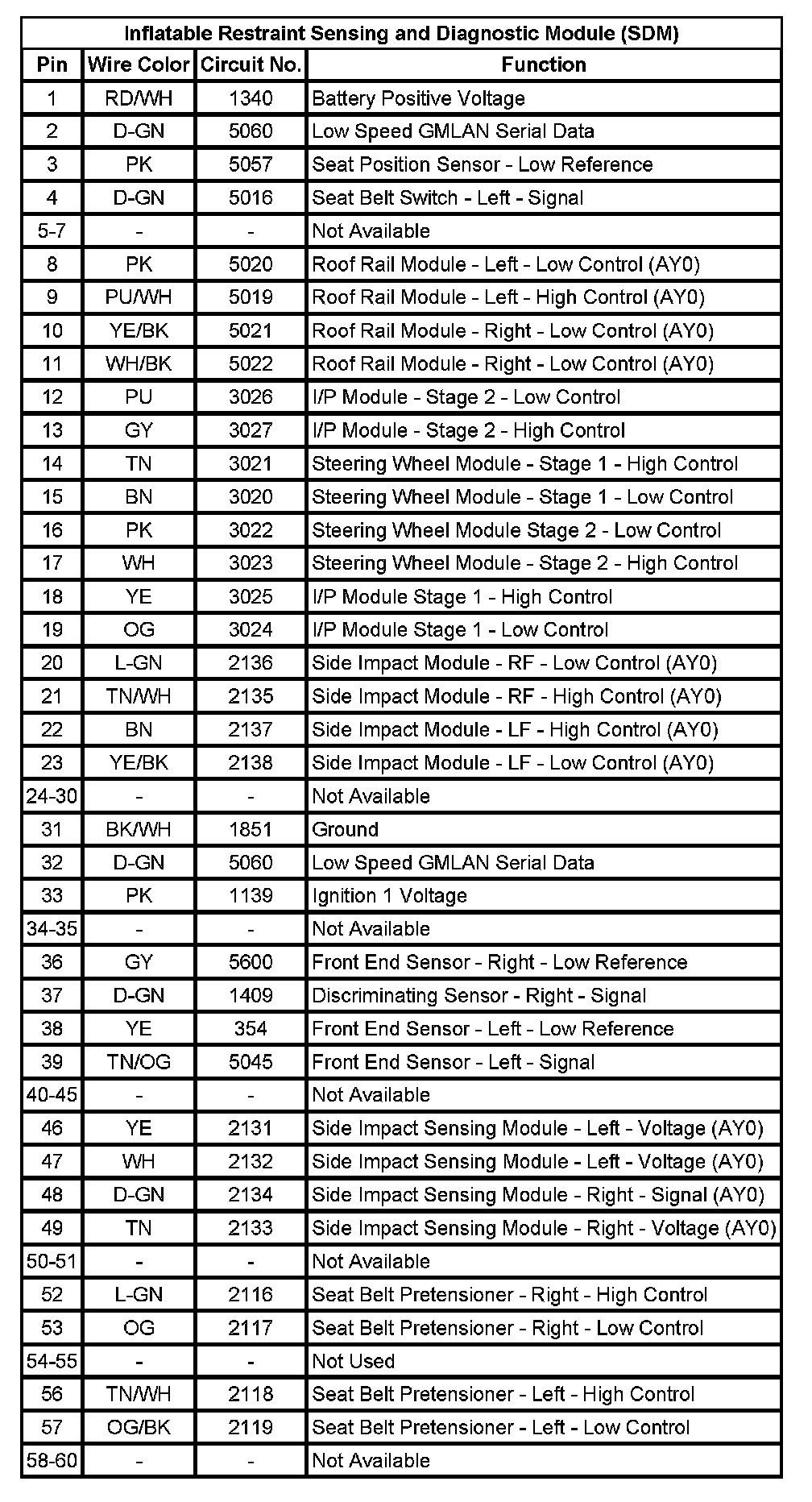

Inflatable Restraint Sensing and Diagnostic Module (SDM)

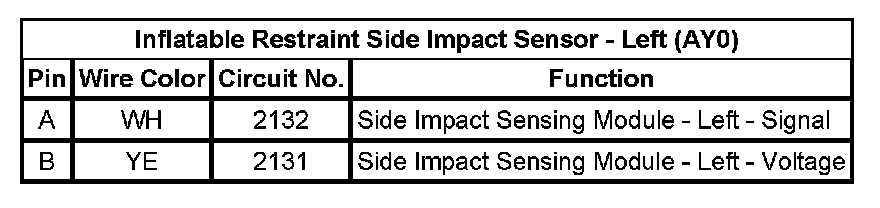

Inflatable Restraint Side Impact Sensor - Left (AY0)

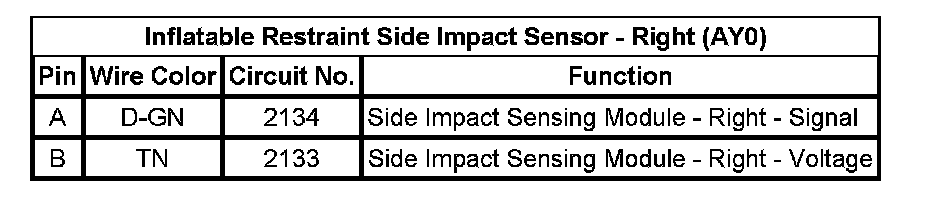

Inflatable Restraint Side Impact Sensor - Right (AY0)

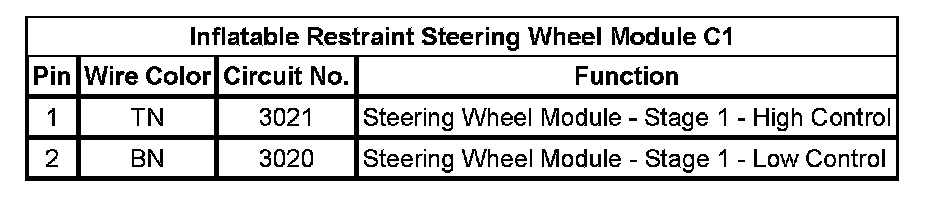

Inflatable Restraint Steering Wheel Module C1

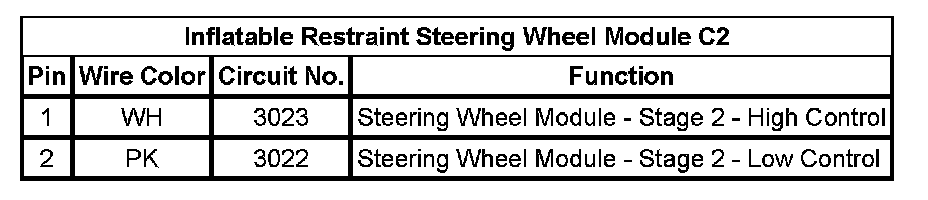

Inflatable Restraint Steering Wheel Module C2

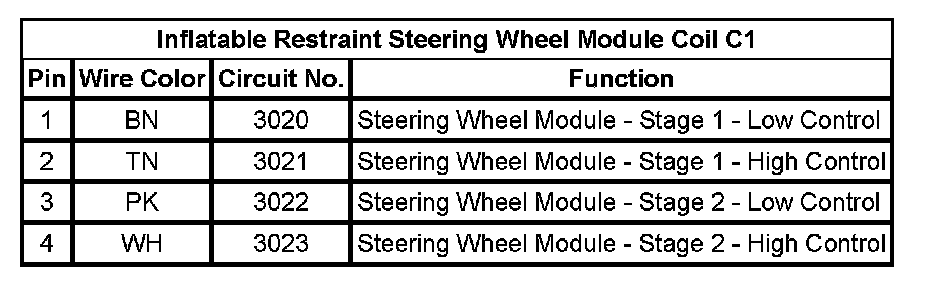

Inflatable Restraint Steering Wheel Module Coil C1

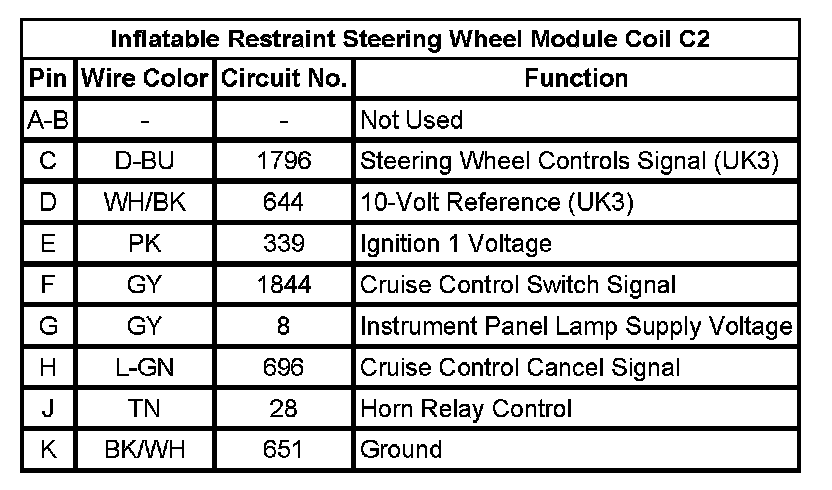

Inflatable Restraint Steering Wheel Module Coil C2
Inflatable Restraint Steering Wheel Module Coil C3

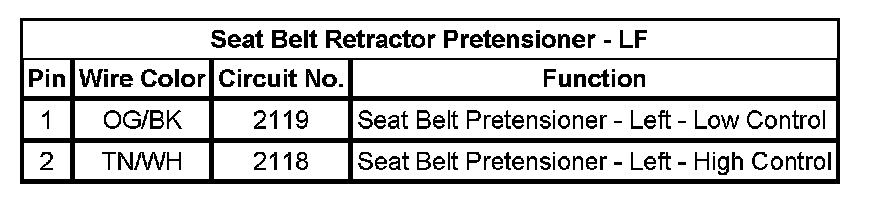

Seat Belt Retractor Pretensioner - LF

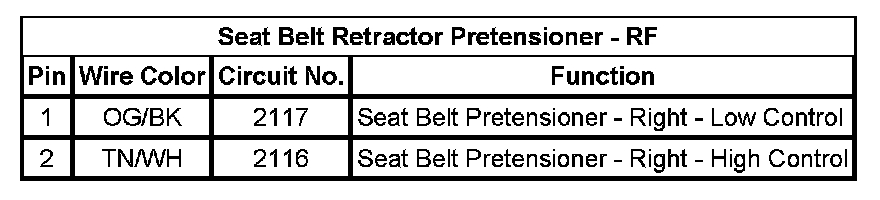

Seat Belt Retractor Pretensioner - RF
