2007 Chevrolet Malibu L4-2.2LFACTORY OEM SERVICE PROCEDURE
Body Control Module: Diagrams
Data Communication Connector End Views

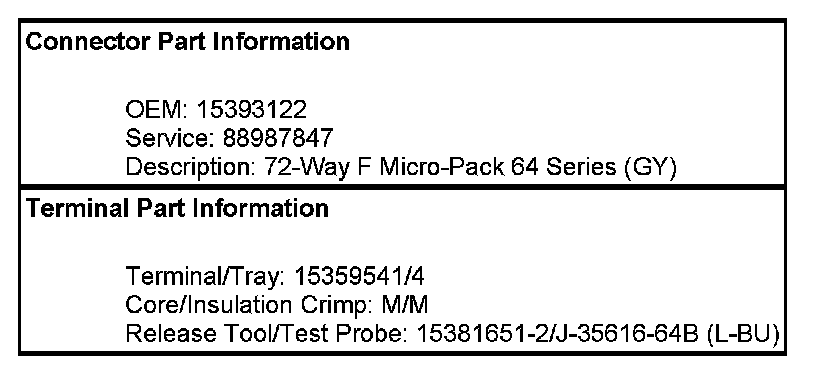

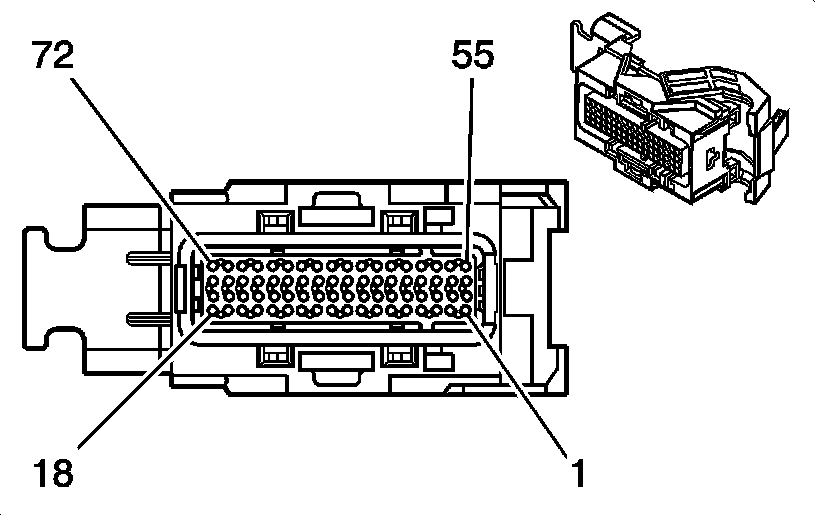

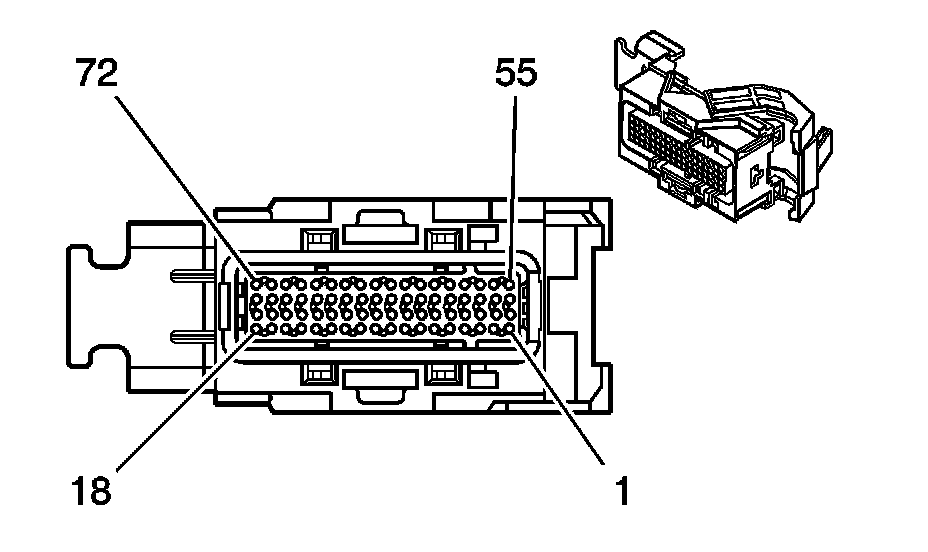

Body Control Module (BCM) - C1

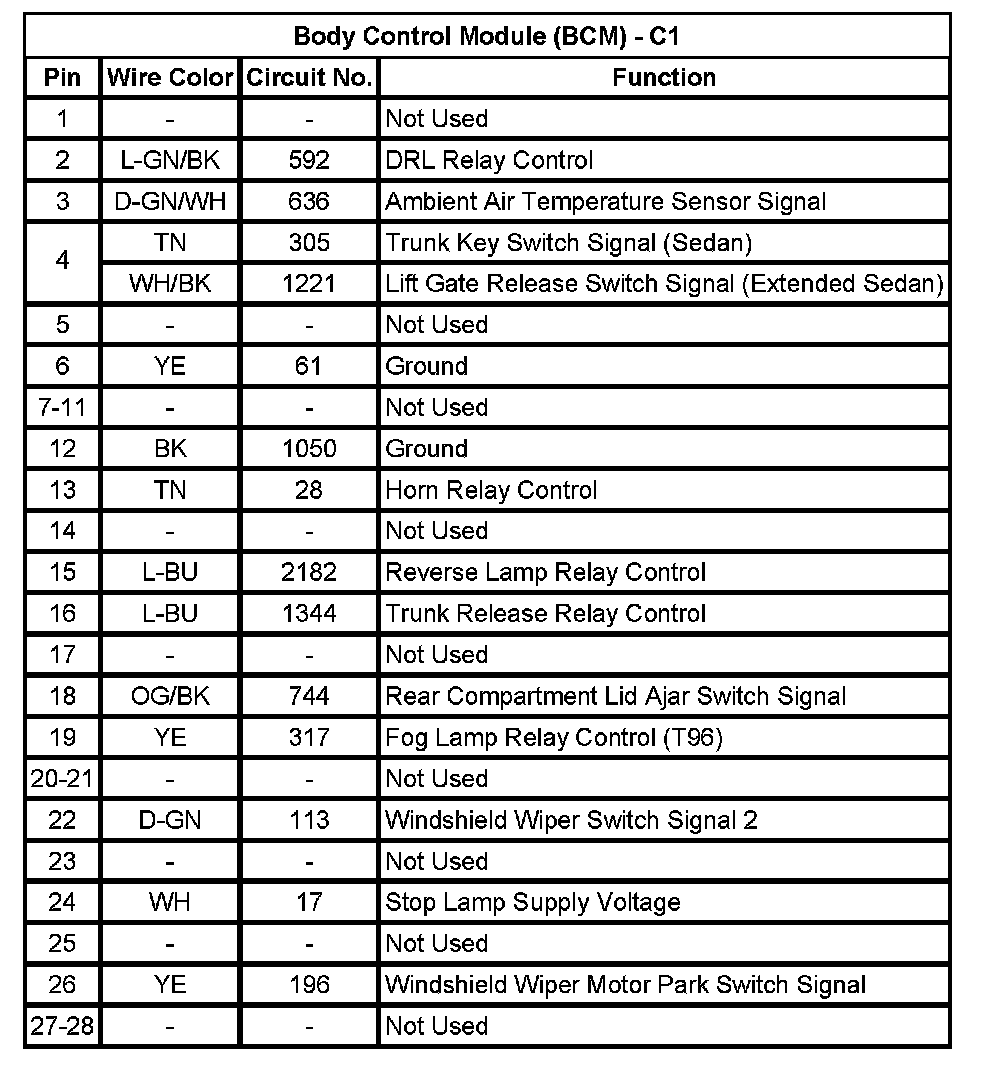

Body Control Module (BCM) - C1 (Pin 1 To 28):

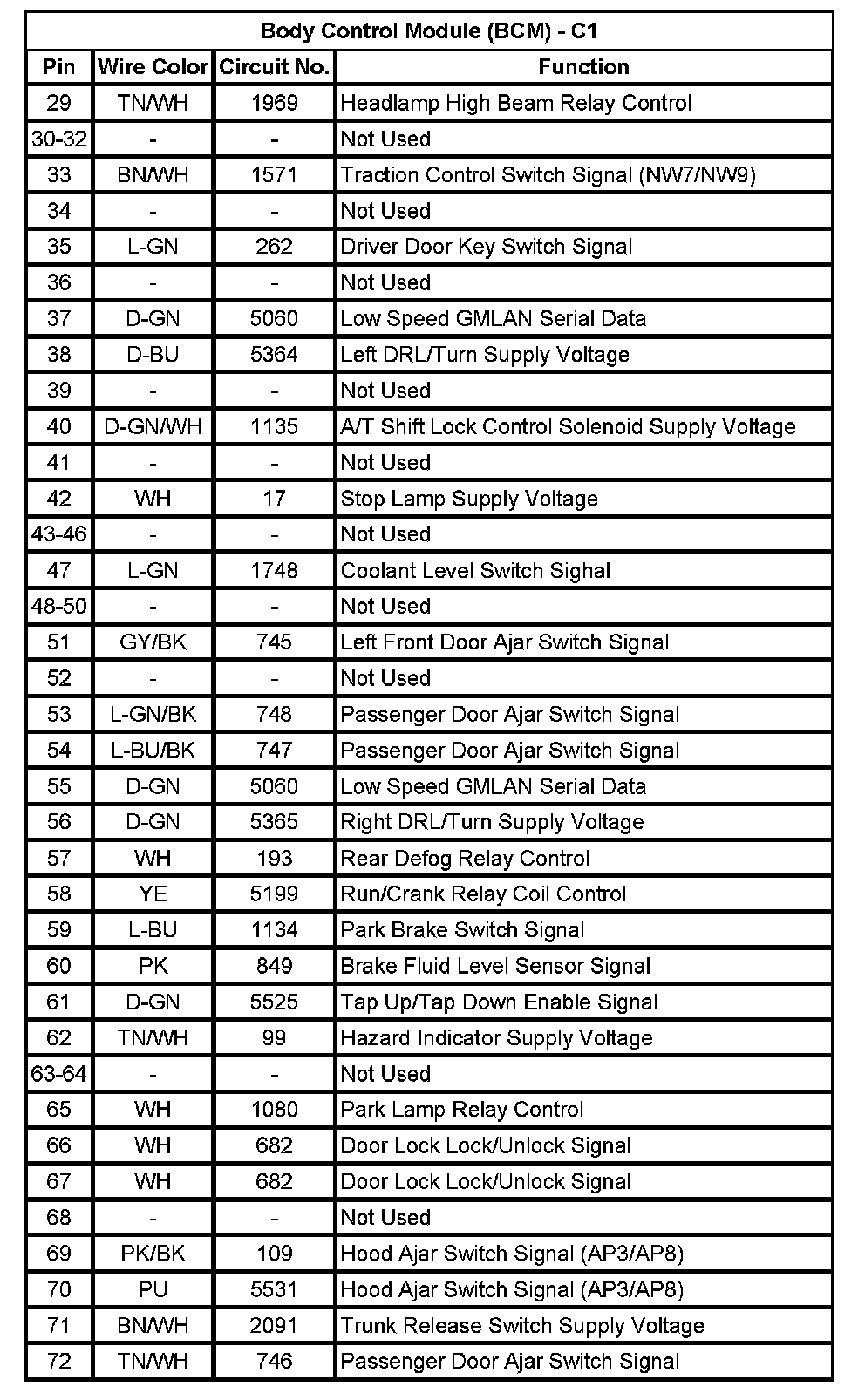

Body Control Module (BCM) - C1 (Pin 29 To 72):

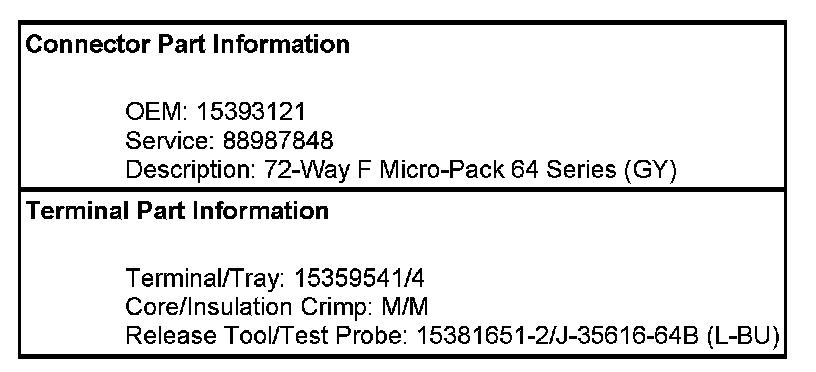

Body Control Module (BCM) - C2

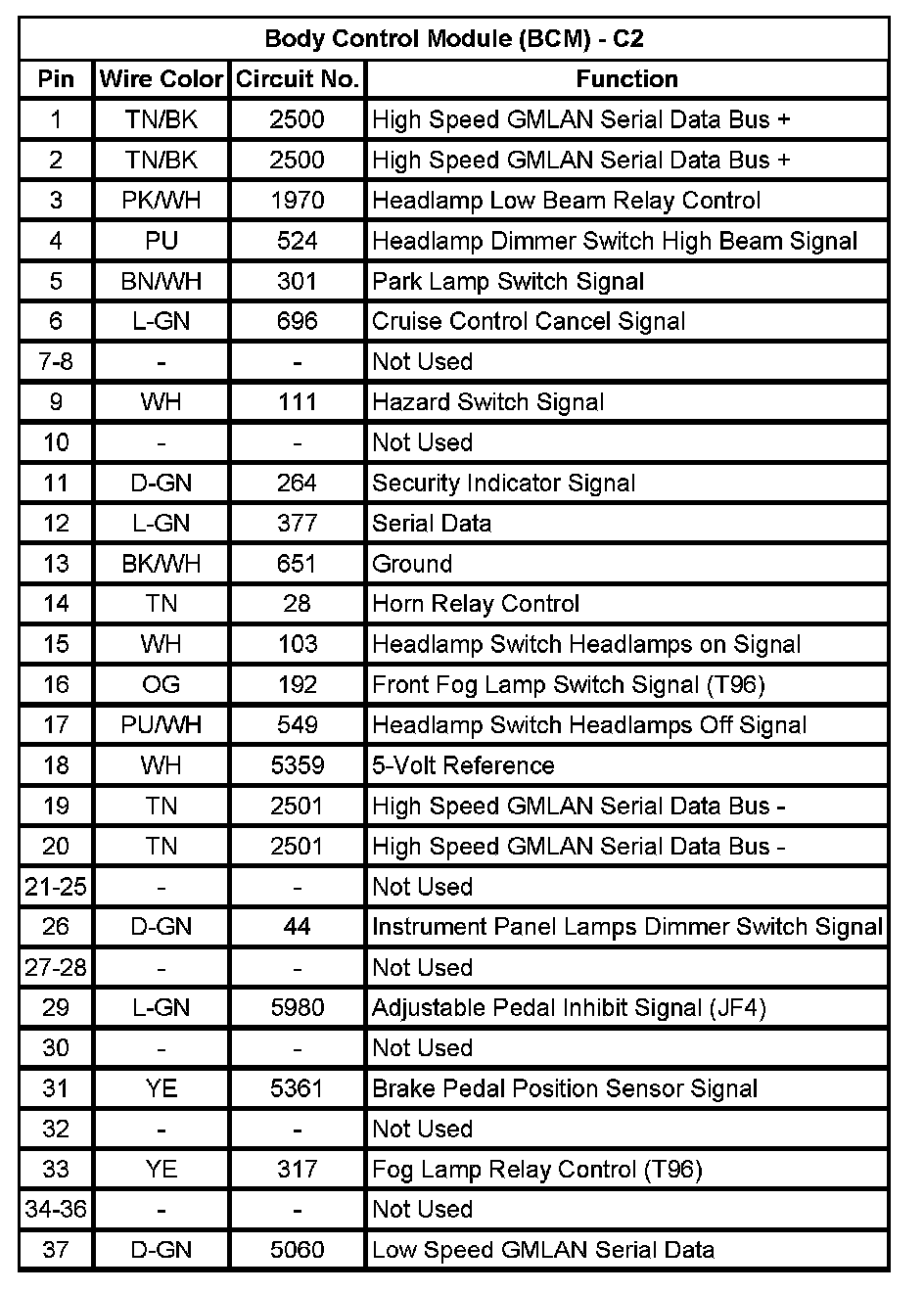

Body Control Module (BCM) - C2 (Pin 1 To 37):
Body Control Module (BCM) - C2 (Pin 38 To 72):

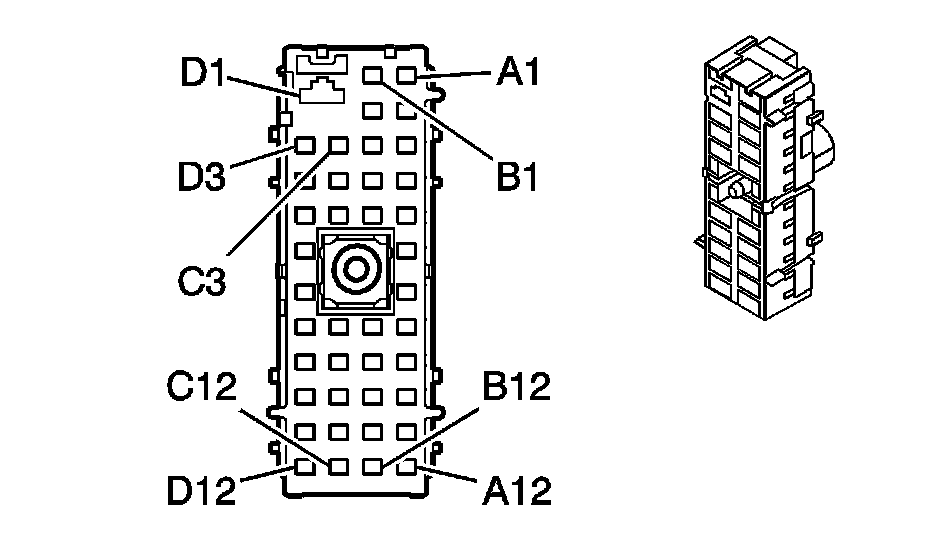

Body Control Module (BCM) - C3

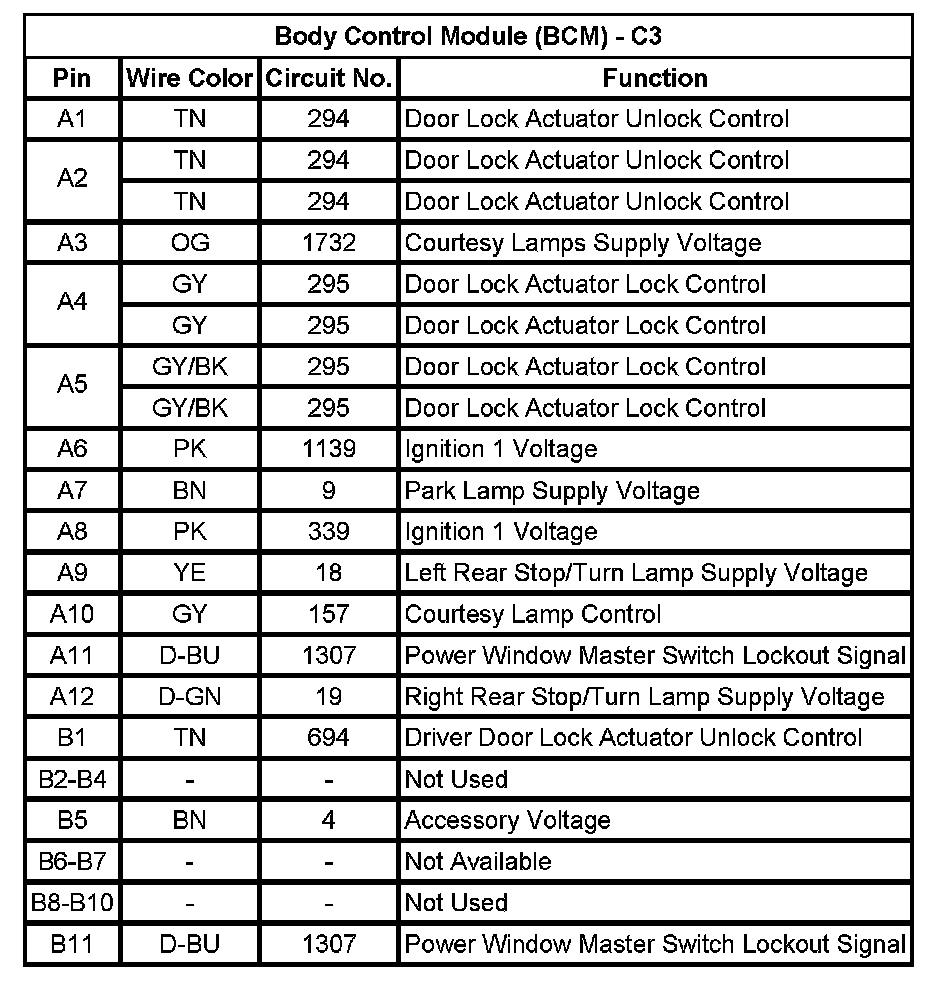

Body Control Module (BCM) - C3 (Pin A1 To B11):
Body Control Module (BCM) - C3 (Pin B12 To D12):

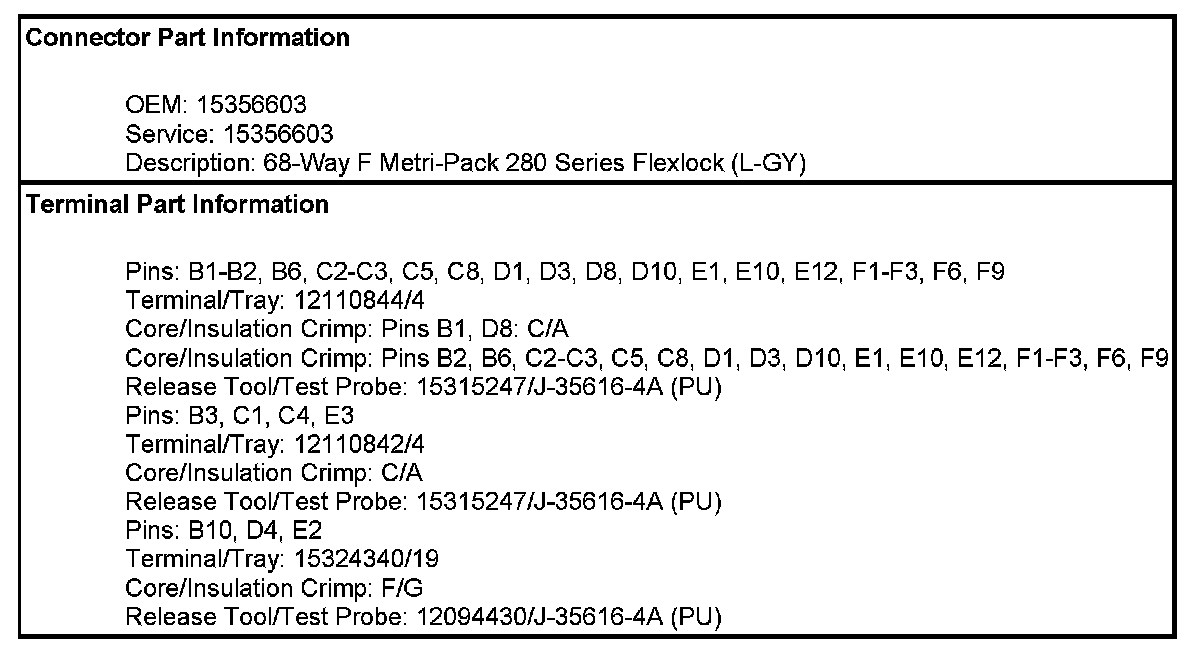

Body Control Module (BCM) - C4

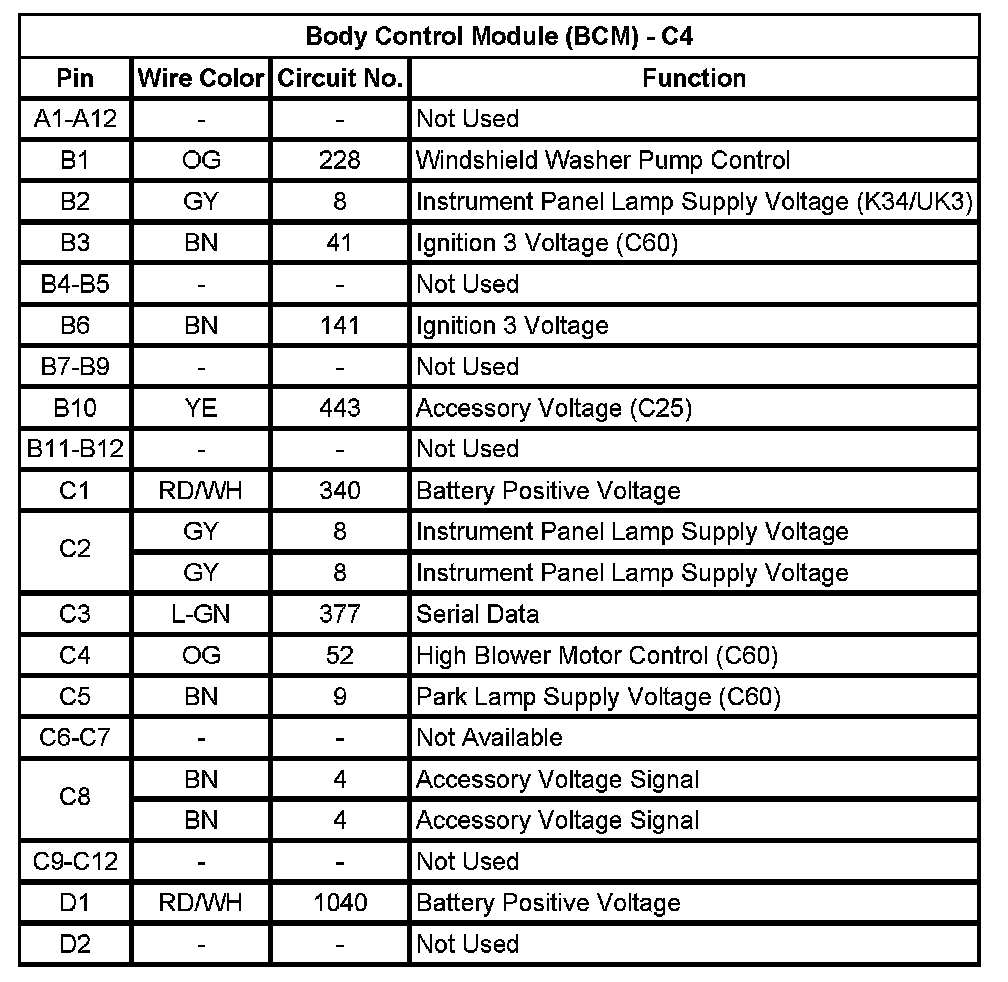

Body Control Module (BCM) - C4 (Pin A1 To D2):
Body Control Module (BCM) - C4 (Pin D3 To F12):
