2007 Chevrolet Malibu L4-2.2LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair

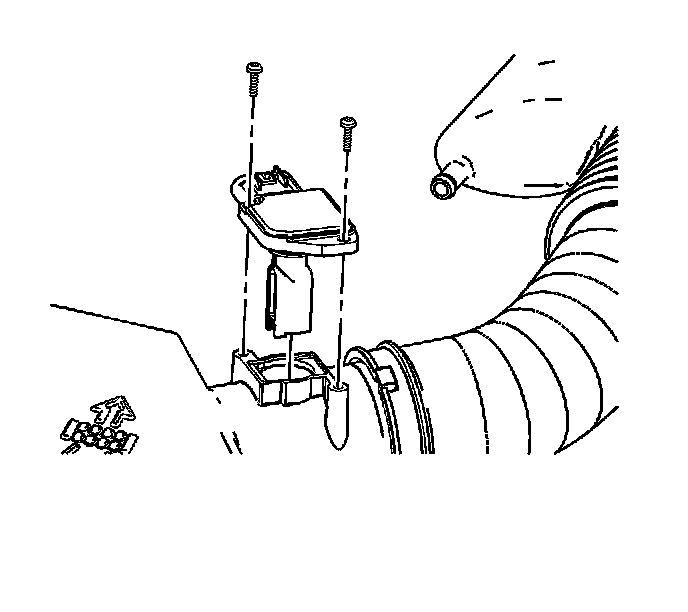

Mass Airflow Sensor Replacement
Removal Procedure
1. Disconnect the engine wiring harness electrical connector from the mass air flow (MAF) sensor.
2. Remove the MAF sensor screws.
3. Remove the MAF sensor from the air cleaner cover.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the MAF sensor and screws to the air cleaner cover.
Tighten the screws to 0.6 N.m (5 lb in).
2. Connect the engine wiring harness electrical connector to the MAF sensor.
