2007 Chevrolet Malibu L4-2.2LFACTORY OEM SERVICE PROCEDURE

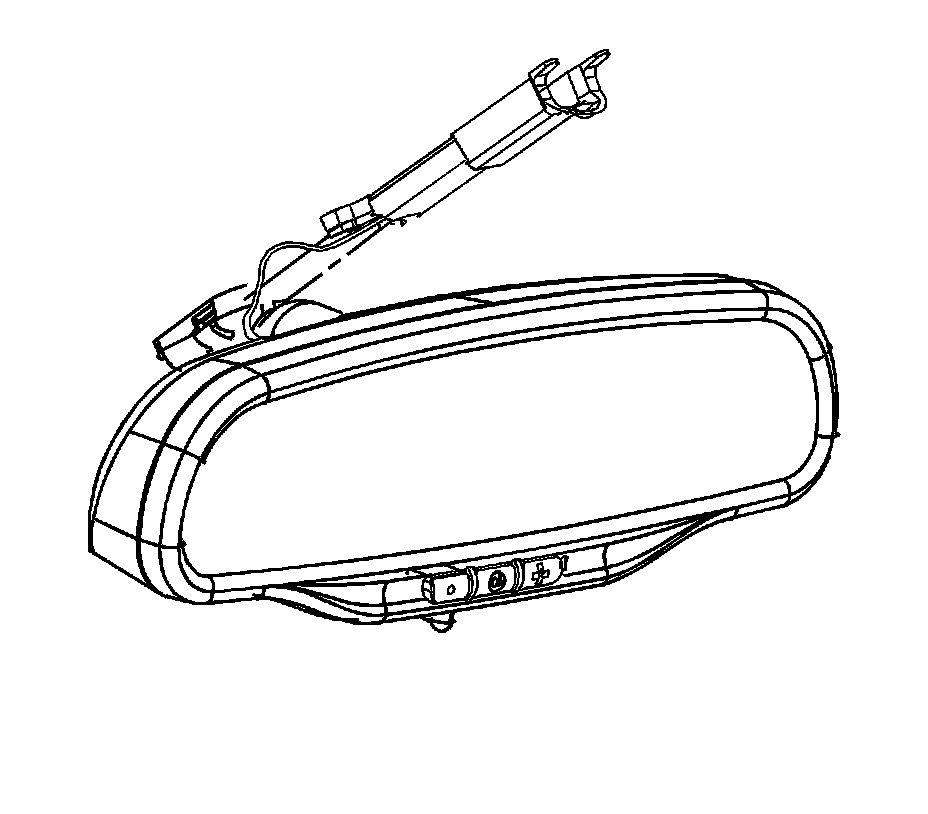

Rearview Mirror Replacement
Rearview Mirror Replacement
Removal Procedure
1. Remove the wiring harness cover.
2. Loosen the screw in the base of the mirror.
3. Remove the mirror from the mounting pad.
4. Disconnect the rearview mirror wiring harness, if applicable.
Installation Procedure
1. Install the mirror to the mounting pad.
Notice: Refer to Fastener Notice.
2. Tighten the screw that retains the mirror base to the mounting pad.
Tighten the mirror set screw to 2 N.m (18 lb in).
3. Install the rearview mirror wiring harness.
4. Install the wiring harness cover.
