2007 Chevrolet Impala V8-5.3LFACTORY OEM SERVICE PROCEDURE
Spark Plug: Service and Repair
Spark Plug Replacement
Removal Procedure
Notice: This engine has aluminum cylinder heads. Do not remove the spark plugs from a hot engine, allow it to cool first. Removing the spark plugs from a hot engine may cause spark plug thread damage or cylinder head damage.
1. Remove the spark plug wire.
2. Loosen the spark plug 1 or 2 turns.
3. Brush or using compressed air, blow away any dirt from around the spark plug.
4. Remove the spark plug.
If removing more than one plug, place each plug in a tray marked with the corresponding cylinder number.
Installation Procedure

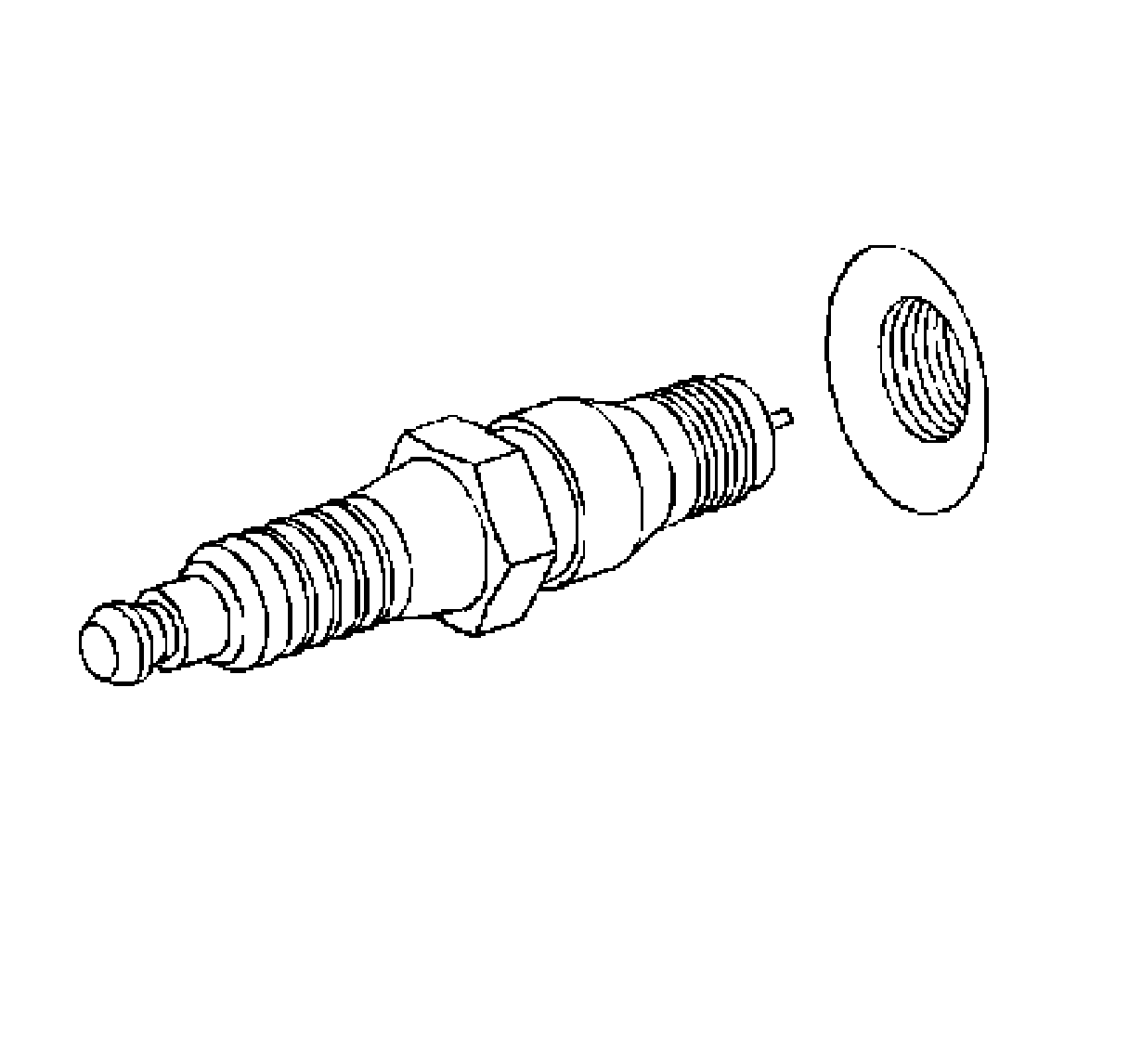

1. Correctly position the spark plug washer.
2. Inspect the spark plug gap. Adjust the gap as needed.
Spark plug gap: 1.016 mm (0.040 in).
3. Hand start the spark plug in the corresponding cylinder.
Notice: Refer to Fastener Notice.
4. Tighten the spark plug.
Tighten the plug to 15 N.m (11 lb ft).
5. Install the spark plug wire.
