2007 Chevrolet Impala V8-5.3LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Locations
Engine Controls Component Views
Front of Engine (LS4)
Front Of Engine:
1 - Engine Coolant Temperature (ECT) Sensor
2 - Ignition Coil 1
3 - Ignition Coil 3
4 - Ignition Coil 5
5 - Ignition Coil 7
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Throttle Body
8 - Engine Coolant Heater
9 - Knock Sensor (KS) Bank 1
10 - Engine Oil Level Switch
11 - Camshaft Position (CMP) Sensor

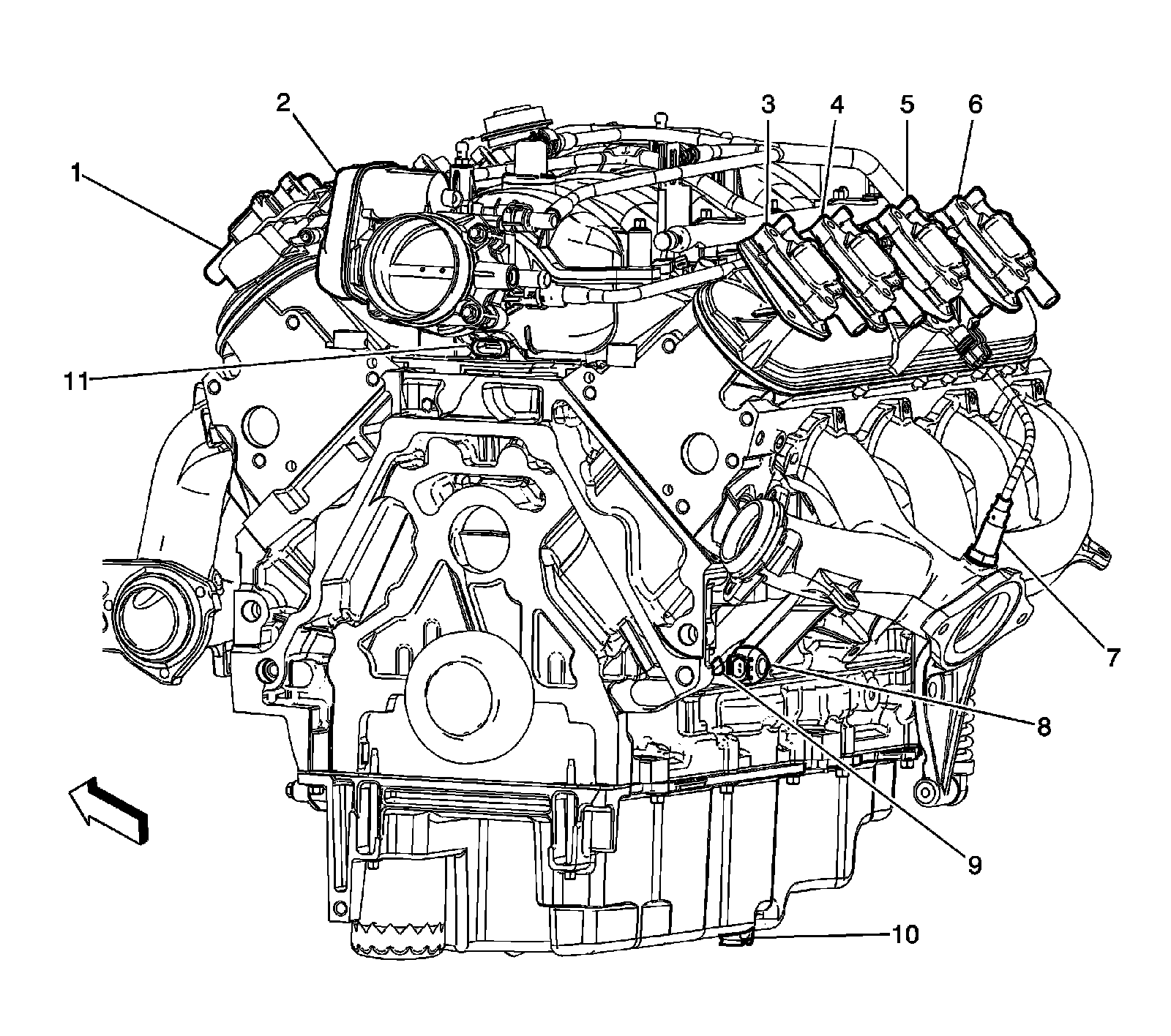

Rear of Engine
Rear Of Engine:
1 - Ignition Coil 7
2 - Throttle Body
3 - Ignition Coil 8
4 - Ignition Coil 6
5 - Ignition Coil 4
6 - Ignition Coil 2
7 - Heated Oxygen Sensor (HO2S) 1
8 - Knock Sensor (KS) Bank 2
9 - Crankshaft Position (CKP) Sensor
10 - Engine Oil Level Switch
11 - Valve Lifter Oil Manifold (VLOM) Assembly
