2007 Chevrolet Impala V8-5.3LFACTORY OEM SERVICE PROCEDURE
Data Link Connector: Locations
Power and Grounding Component Views

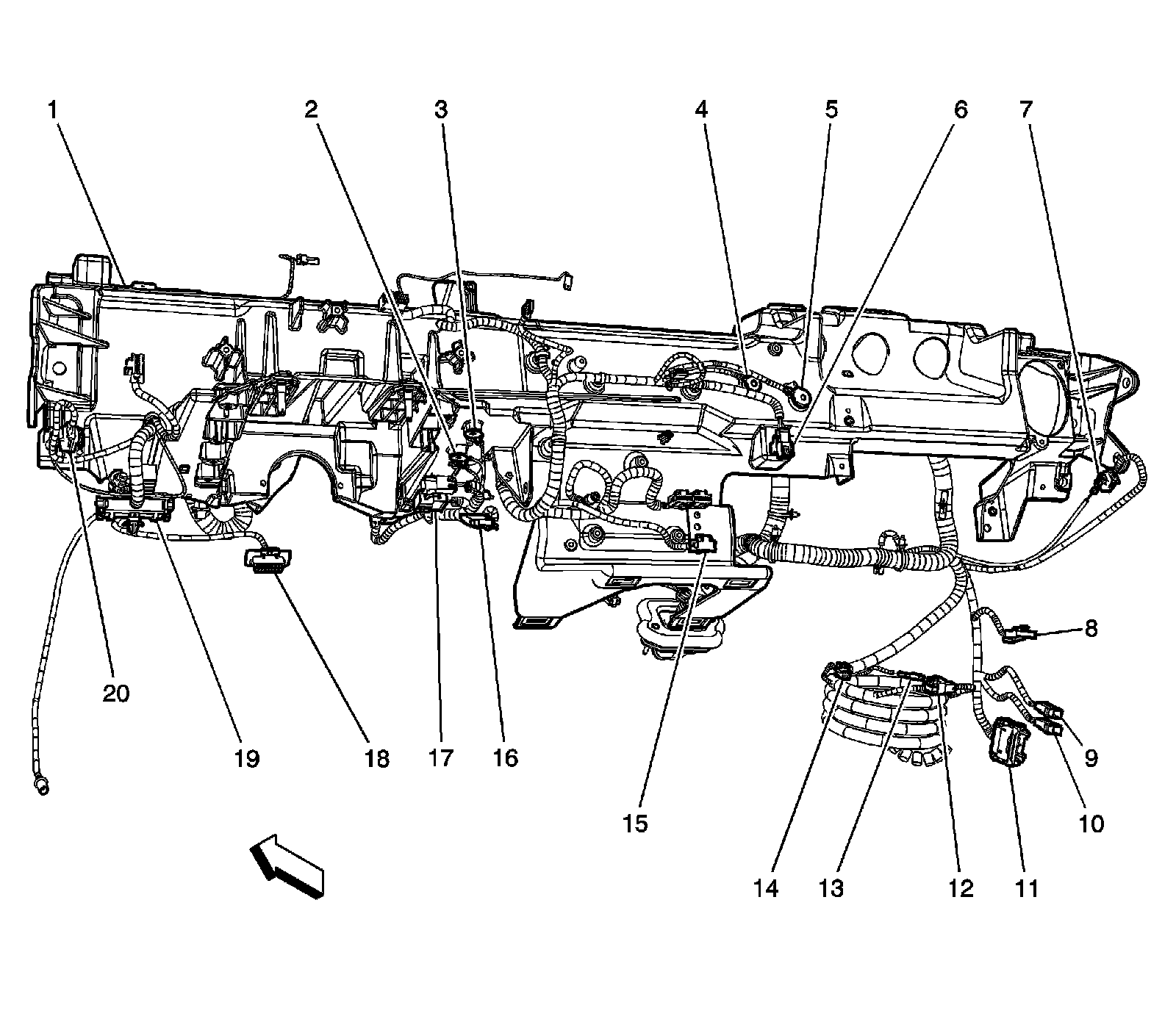

I/P Harness - Front of the I/P Carrier
1 - I/P Carrier
2 - G202
3 - G201
4 - G200
5 - G204 (9C1, 9C3)
6 - C210
7 - Spot Lamp - Right Connector (9C1, 9C3)
8 - Fuse Block - I/P C2
9 - C360 (9C1 and 9C3)
10 - C362 (9C1 and 9C3)
11 - C200
12 - C267 (9C1 and 9C3)
13 - C266 (9C1 and 9C3)
14 - C297 (9C1 and 9C3)
15 - HVAC Control Module C2
16 - Splice Pack SP205
17 - Splice Pack SP206 and Splice Pack SP207
18 - C201
19 - Data Link Connector (DLC)
20 - C203
21 - C250
