2007 Chevrolet Impala V8-5.3LFACTORY OEM SERVICE PROCEDURE
Battery Current Sensor: Service and Repair
Battery Current Sensor Replacement (RPO LS4)
Removal Procedure

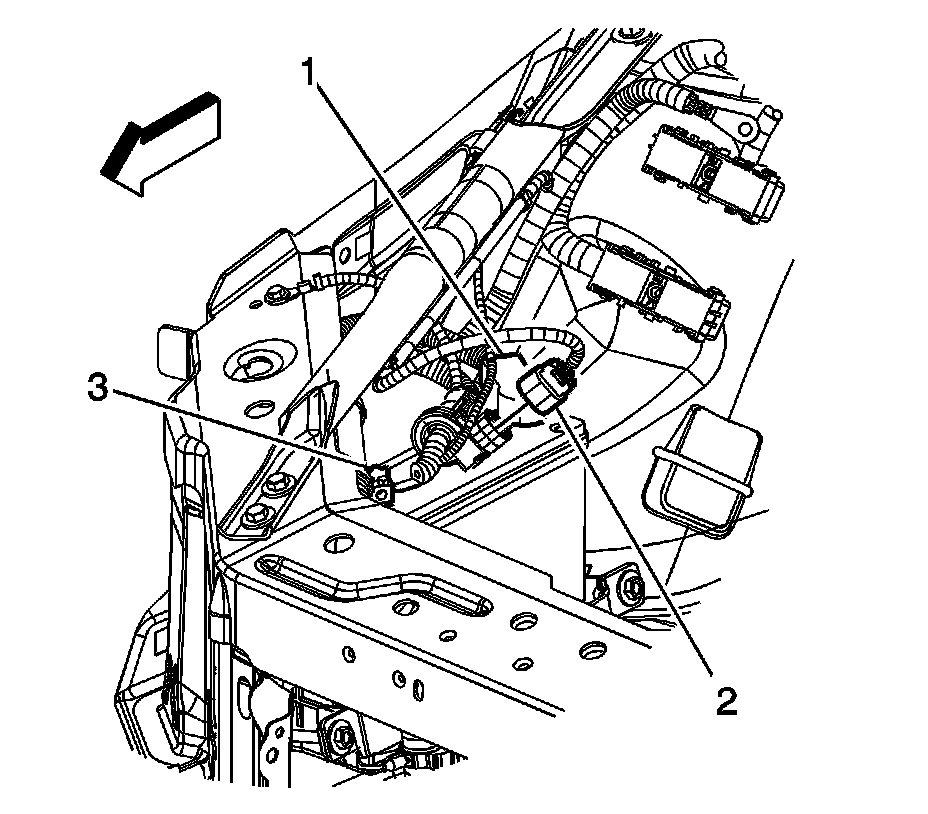

1. Disconnect the instrument panel (I/P) harness electrical connector (2) from the battery current sensor.
2. Remove the positive and negative battery cable.
3. Cut the tie straps and electrical tape attaching the battery current sensor to the negative battery cable.
4. Squeeze the battery cable branches together.
Important: Note the position of the battery current sensor prior to removal.

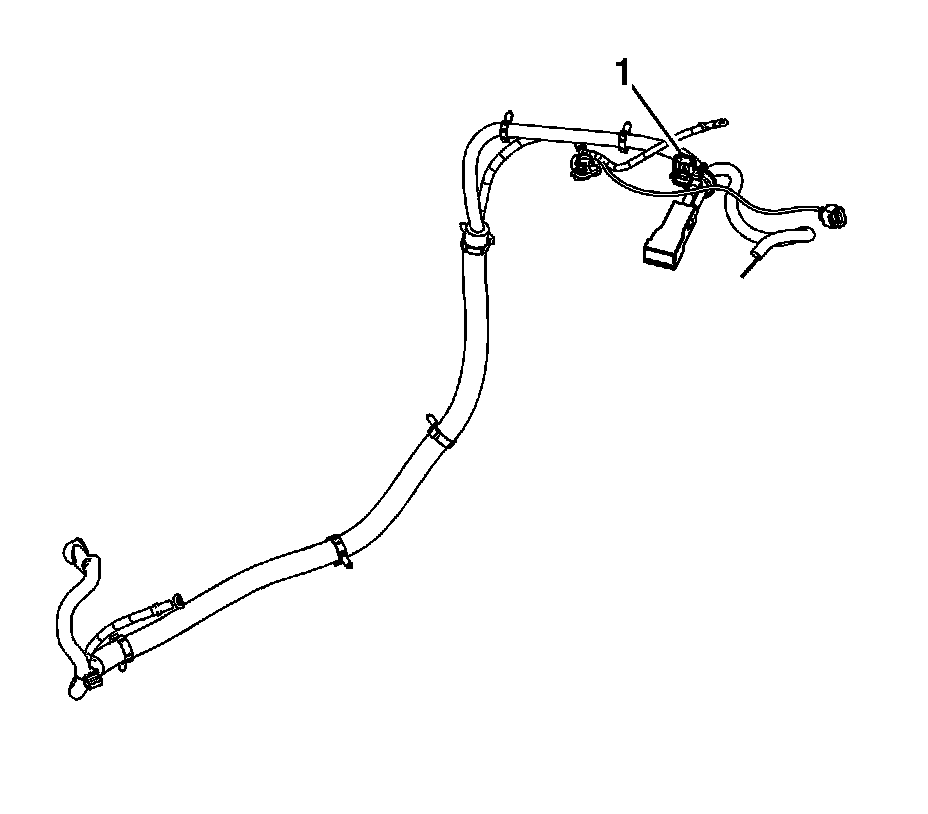

5. Slide the battery current sensor (1) off of the battery cable.
Installation Procedure
Important: Ensure that the tape tab is pointing away from the battery prior to installation.
1. Slide the NEW battery current sensor (1) up onto the battery cable.
2. Using NEW tie straps and electrical tape, attach the battery current sensor to the negative battery cable.
3. Install the positive and negative battery cable.
4. Connect the I/P harness electrical connector (2) to the battery current sensor.
