2007 Chevrolet Impala V8-5.3LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Locations
Engine Controls Component Views
LF of the Engine Compartment
LF of the Engine Compartment:
1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Brake Booster Vacuum Sensor (LS4)
3 - Windshield Wiper Motor
4 - Electronic Brake Control Module (EBCM)
5 - A/C Refrigerant Pressure Sensor
6 - Transmission Control Module (TCM)
7 - Engine Control Module (ECM)
8 - G101
9 - Inflatable Restraint Front End Sensor - Left

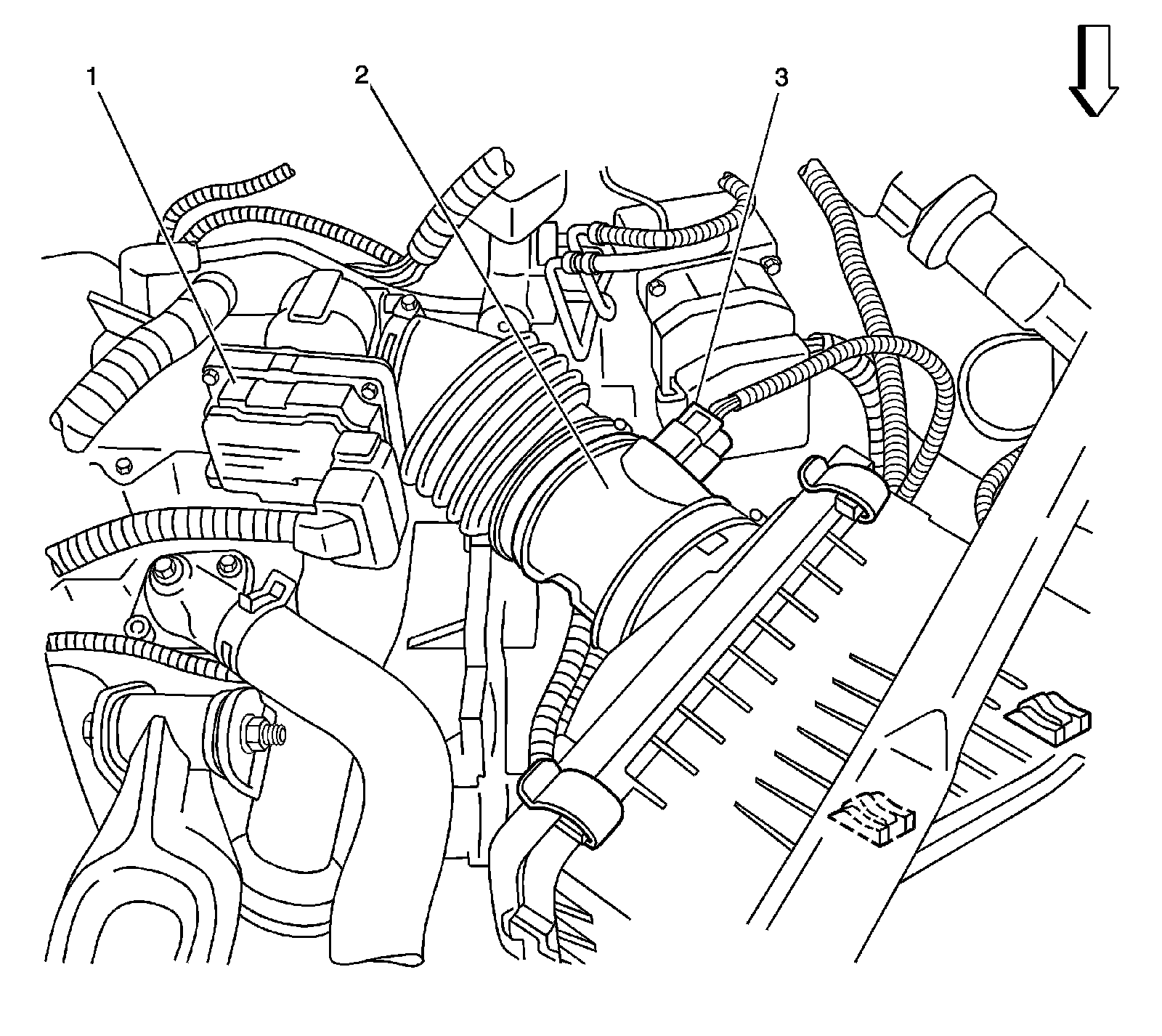

Left Top Side of Engine
Left Top Side Of Engine:
1 - Throttle Body
2 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
3 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector
