Engine Oil: Service and Repair

Engine Oil and Oil Filter Replacement

Removal Procedure




1. Open the hood.
2. Remove the oil fill cap.
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

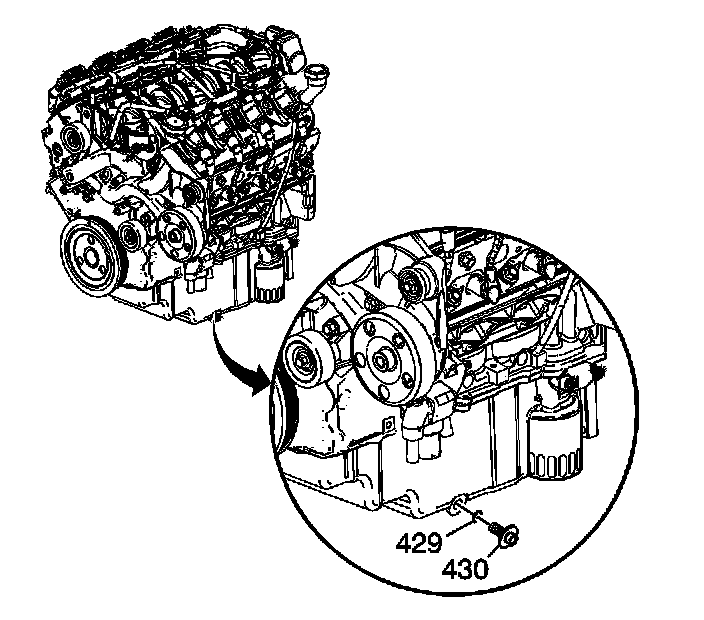

4. Remove the oil pan drain plug (430) and O-ring (429).
5. Allow the oil to drain into an appropriate container.

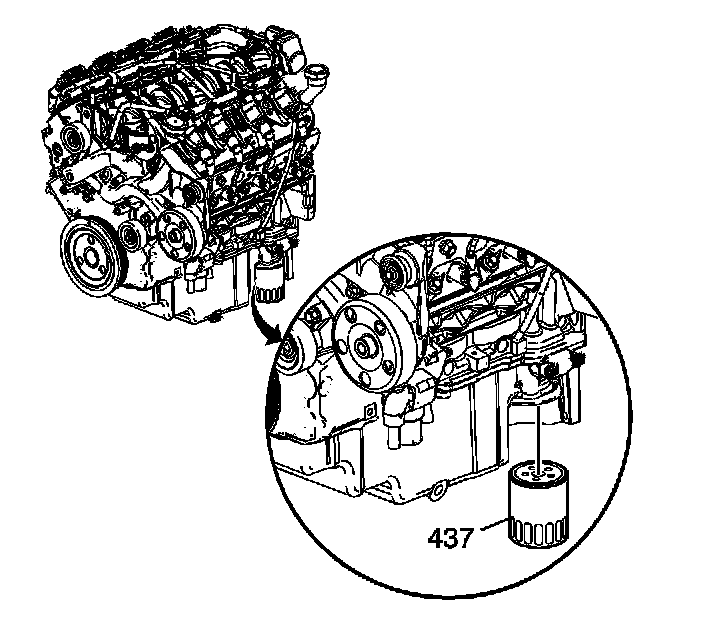

6. Remove the engine oil filter (437). Allow the rest of the engine oil to drain into an appropriate container.

Installation Procedure





Notice: Refer to Fastener Notice.

Important: Prior to installing a NEW oil filter, ensure that the old oil filter gasket has been removed from the engine block. If not, remove the old gasket.

1. Install a NEW engine oil filter (437).

Tighten the filter to 30 N.m (22 lb ft).




2. Install the oil pan drain plug (430) and O-ring (429).

Tighten the drain plug to 25 N.m (18 lb ft).

3. Lower the vehicle.
4. Fill the engine with the appropriate amount and type of NEW engine oil. Refer to Capacities - Approximate Fluid and Fluid and Lubricant Recommendations.
5. Check the oil level.
6. Install the oil fill cap.
7. Close the hood.
8. Reset the engine oil life monitor, if necessary. Refer to GM Oil Life System Resetting. Service and Repair
