2007 Chevrolet Impala V6-3.9LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
Fuel Level Sensor Replacement
Removal Procedure
Important: Always maintain cleanliness when servicing fuel system components.
1. Remove the fuel tank module.

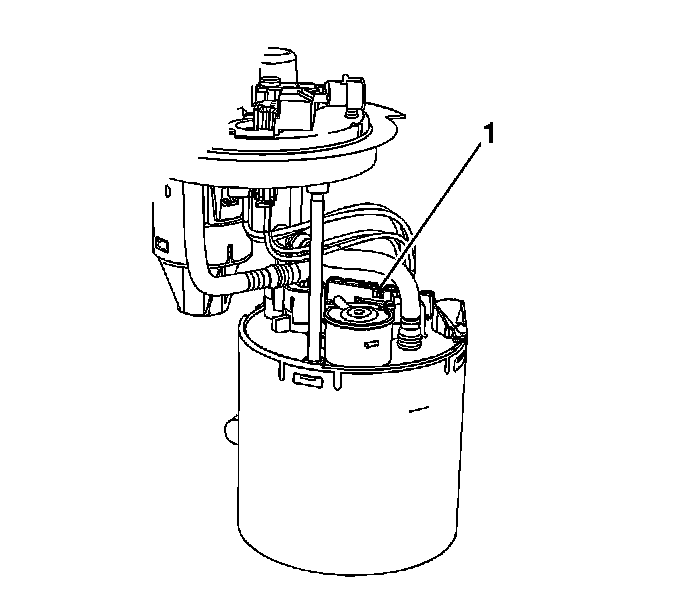

2. Disconnect the fuel level sensor electrical connector (1).

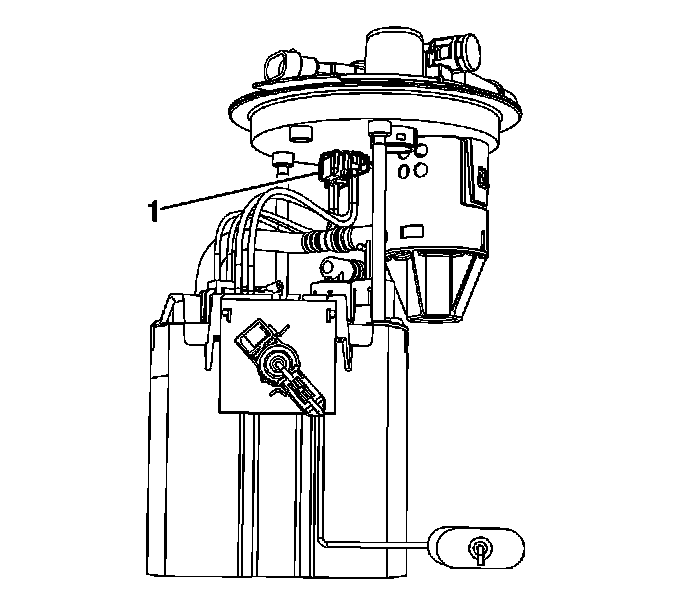

3. Push in the fuel level sensor retainer (1).

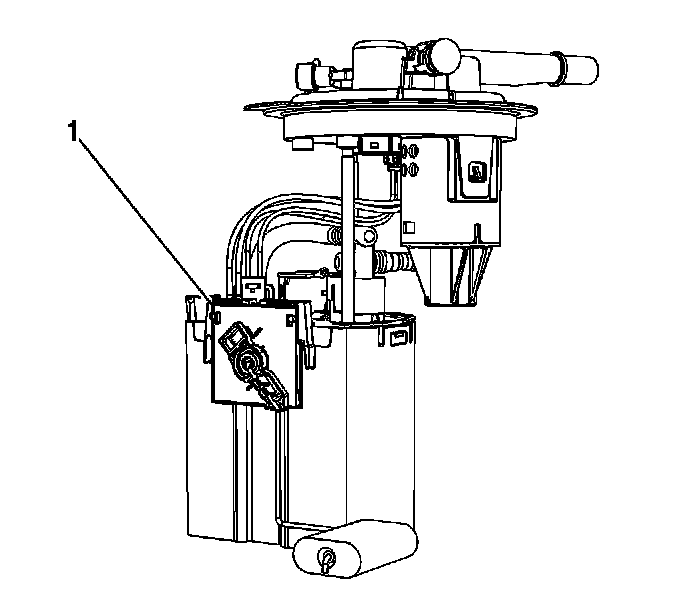

4. Slide the fuel level sensor (1) downward and off of the bucket.
Installation Procedure
1. Slide the fuel level sensor (1) onto the bucket and upward.
2. Slide the fuel level sensor upward until the retainer (1) locks.
3. Connect the fuel level sensor electrical connector (1).
4. Install the fuel tank module.
