2007 Chevrolet Impala V6-3.9LFACTORY OEM SERVICE PROCEDURE
Barometric Pressure Sensor: Service and Repair

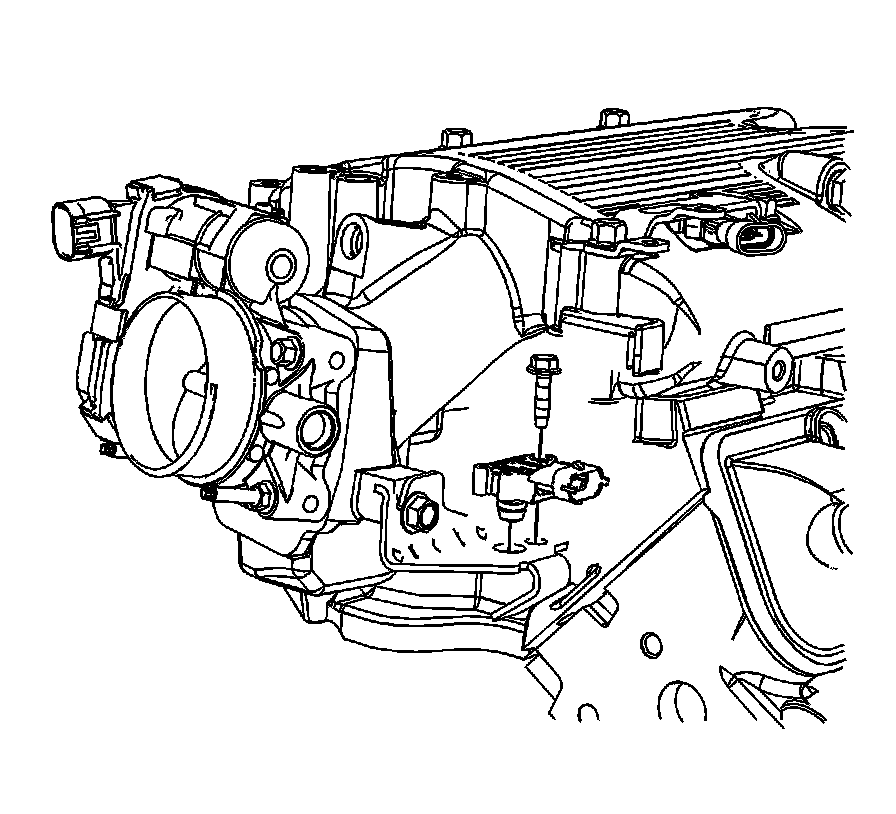

Barometric Pressure Sensor Replacement
Removal Procedure
1. Remove the intake manifold cover.
2. Disconnect the engine wiring harness electrical connector from the barometric (BARO) pressure sensor.
3. Remove the BARO sensor bolt.
4. Remove the BARO sensor.
Installation Procedure
1. Lubricate the BARO sensor O-ring seal with clean engine oil.
2. Install the BARO sensor to the bracket.
Notice: Refer to Fastener Notice.
3. Install the BARO sensor bolt.
Tighten the bolt to 10 N.m (89 lb in).
4. Connect the engine wiring harness electrical connector to the BARO sensor.
5. Install the intake manifold cover.
