2007 Chevrolet Impala V6-3.5LFACTORY OEM SERVICE PROCEDURE
Case Assembly Inspection
Case Assembly Inspection

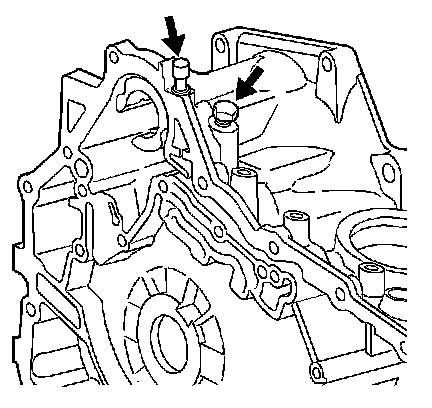

1. Inspect the components that are still on the transmission case for the following conditions:
* Loose, cross-threaded, or damaged pipe fittings on the transmission oil cooler
* A loose, missing, or damaged transmission name plate

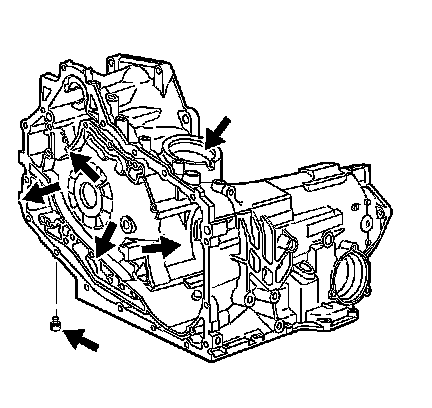

2. Inspect the transmission case for the following conditions:
* Gasket sealing surfaces that are damaged or which have porosity
* Bolt or screw holes that are stripped or damaged (repair with a thread insert)
* Damaged or porous case oil passages
* Damaged snap ring grooves or housing splines
* Loose, missing, or damaged band anchor pins
* Damaged or porous case surfaces
* Plugged drain back holes for the torque converter oil seal
3. Inspect the components that are still on the transmission case for the following conditions:
* A loose, plugged, or damaged transmission vent assembly
* A loose, cross-threaded, or damaged oil pressure test hole plug
