2007 Chevrolet Impala V6-3.5LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
Mass Airflow Sensor/Intake Air Temperature Sensor Replacement
Removal Procedure
1. Remove the air cleaner outlet duct.

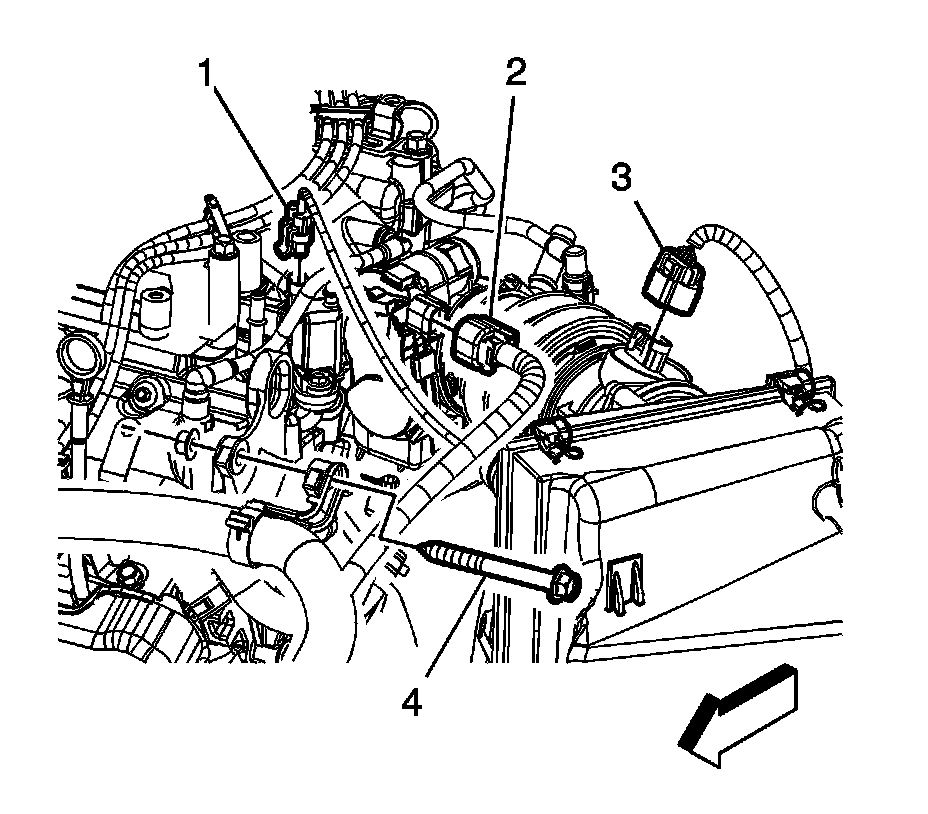

2. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector (3).
3. Remove the MAF/IAT sensor bolts.
4. Remove the MAF/IAT sensor from the air cleaner housing.
5. Remove the MAF/IAT sensor seal, if necessary.
Installation Procedure
1. Install the MAF/IAT sensor seal, if necessary.
2. Install the MAF/IAT sensor to the air cleaner housing.
Notice: Refer to Fastener Notice.
3. Install the MAF/IAT sensor bolts.
Tighten the bolts to 10 N.m (89 lb in).
4. Connect the MAF/IAT sensor electrical connector (3).
5. Install the air cleaner outlet duct.
