2007 Chevrolet Impala V6-3.5LFACTORY OEM SERVICE PROCEDURE

Instrument Panel, Gauges and Warning Indicators: Locations



Displays and Gages Component Views

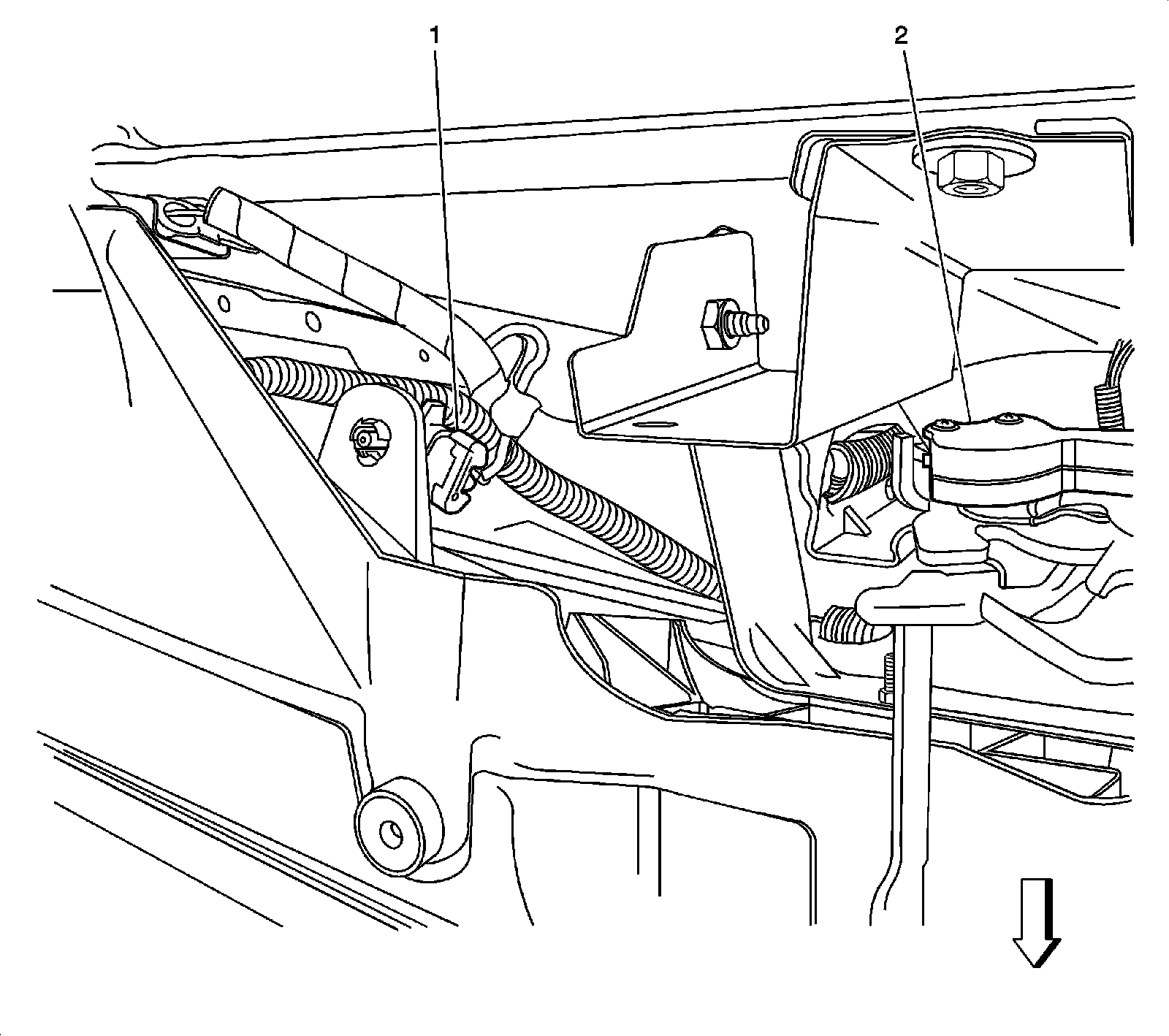

Under the Hood Latch Trim Panel

Factory service manual diagram



1 - Ambient Air Temperature Sensor
2 - Hood Ajar Switch (AP3, AP8)

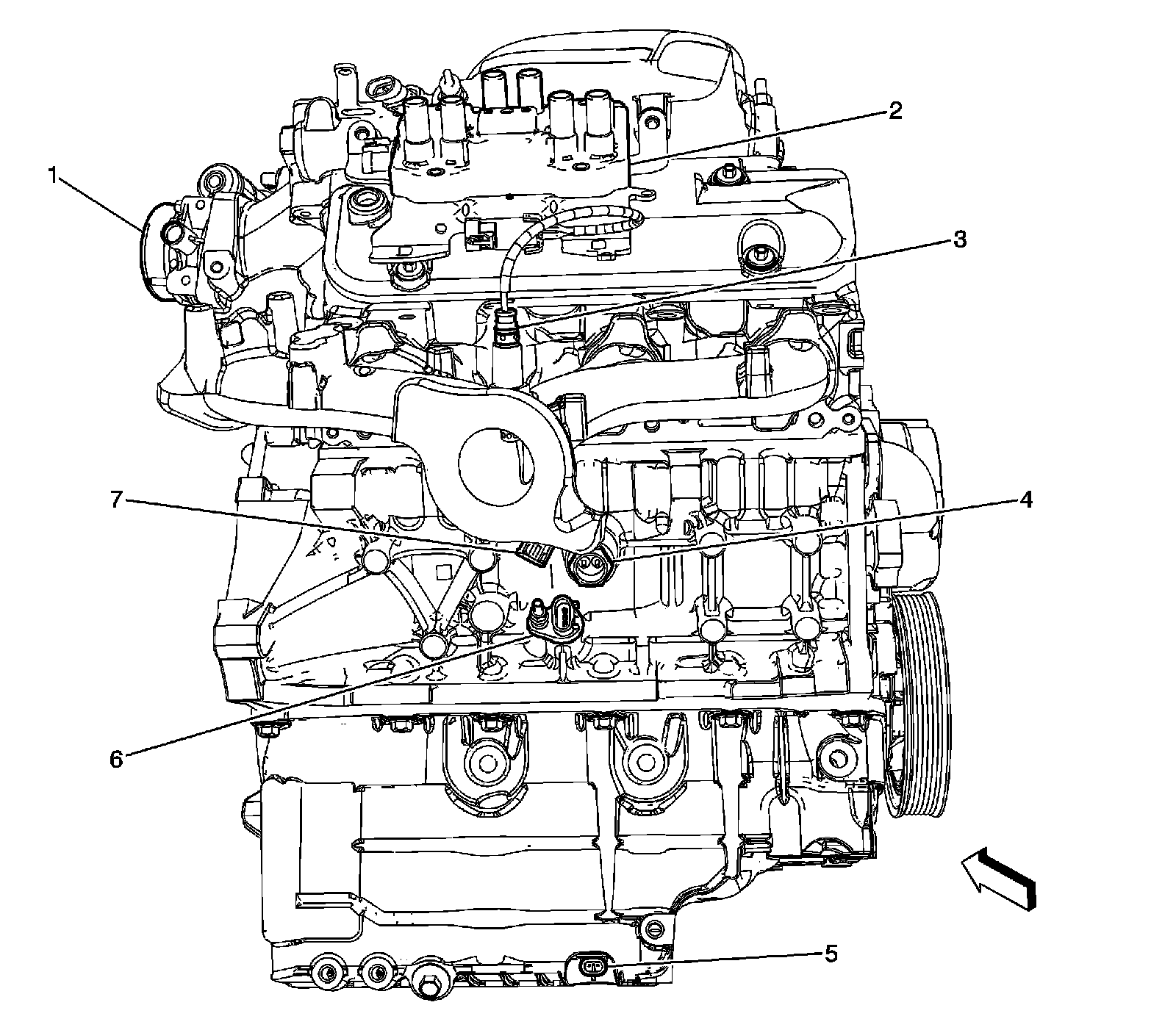

Rear of the Engine (LZE, LZ4, LZ9)

Factory service manual diagram



1 - Throttle Body
2 - Ignition Control Module (ICM)
3 - Heated Oxygen Sensor (HO2S) 1
4 - Engine Coolant Heater
5 - Engine Oil Level Switch
6 - Crankshaft Position (CKP) Sensor
7 - Knock Sensor (KS) Bank 1

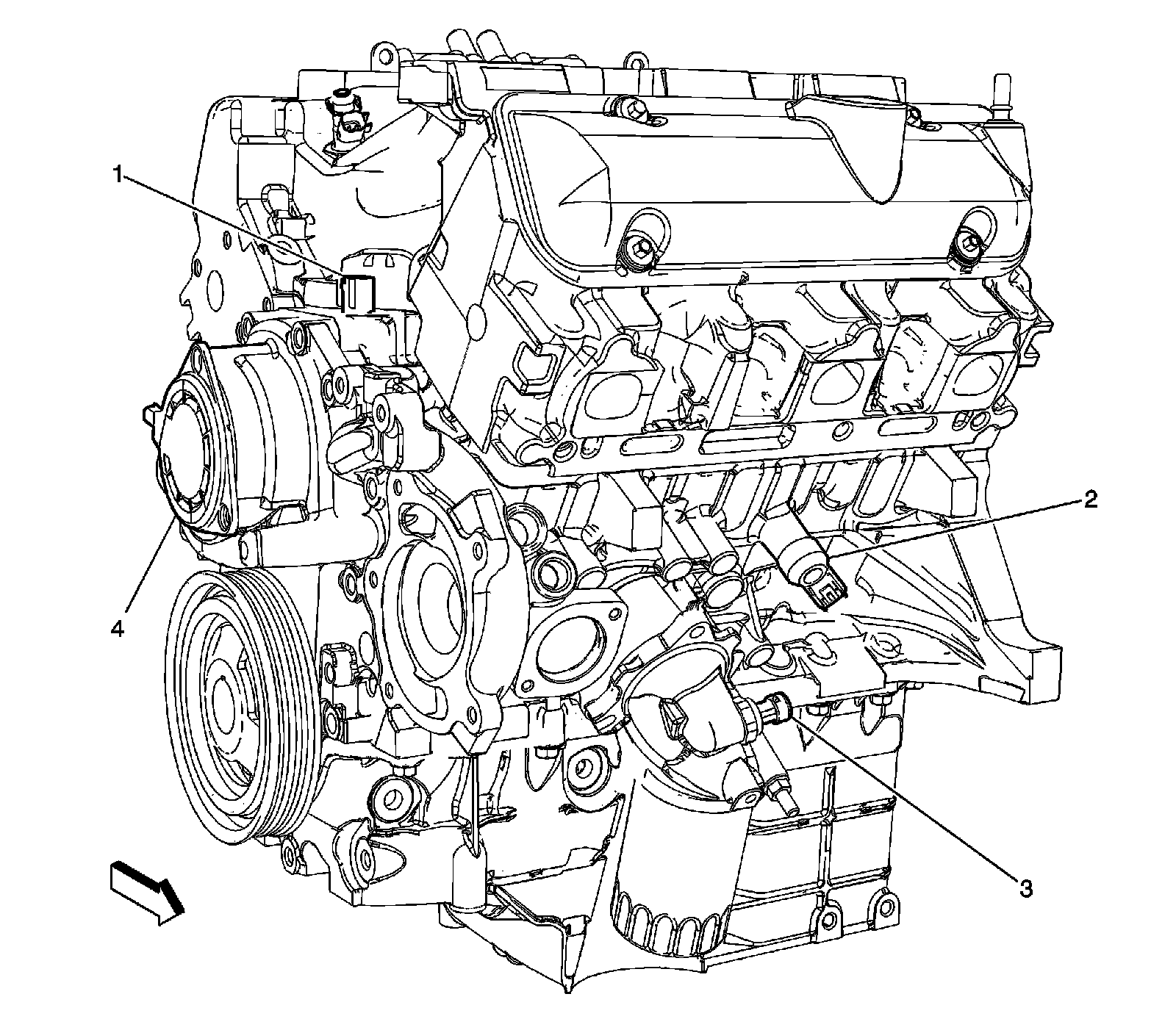

Front of the Engine (LZE, LZ4, LZ9)

Factory service manual diagram



1 - Camshaft Position (CMP) Sensor
2 - Knock Sensor (KS) Bank 2
3 - Engine Oil Pressure (EOP) Sensor
4 - Camshaft Position Actuator Solenoid

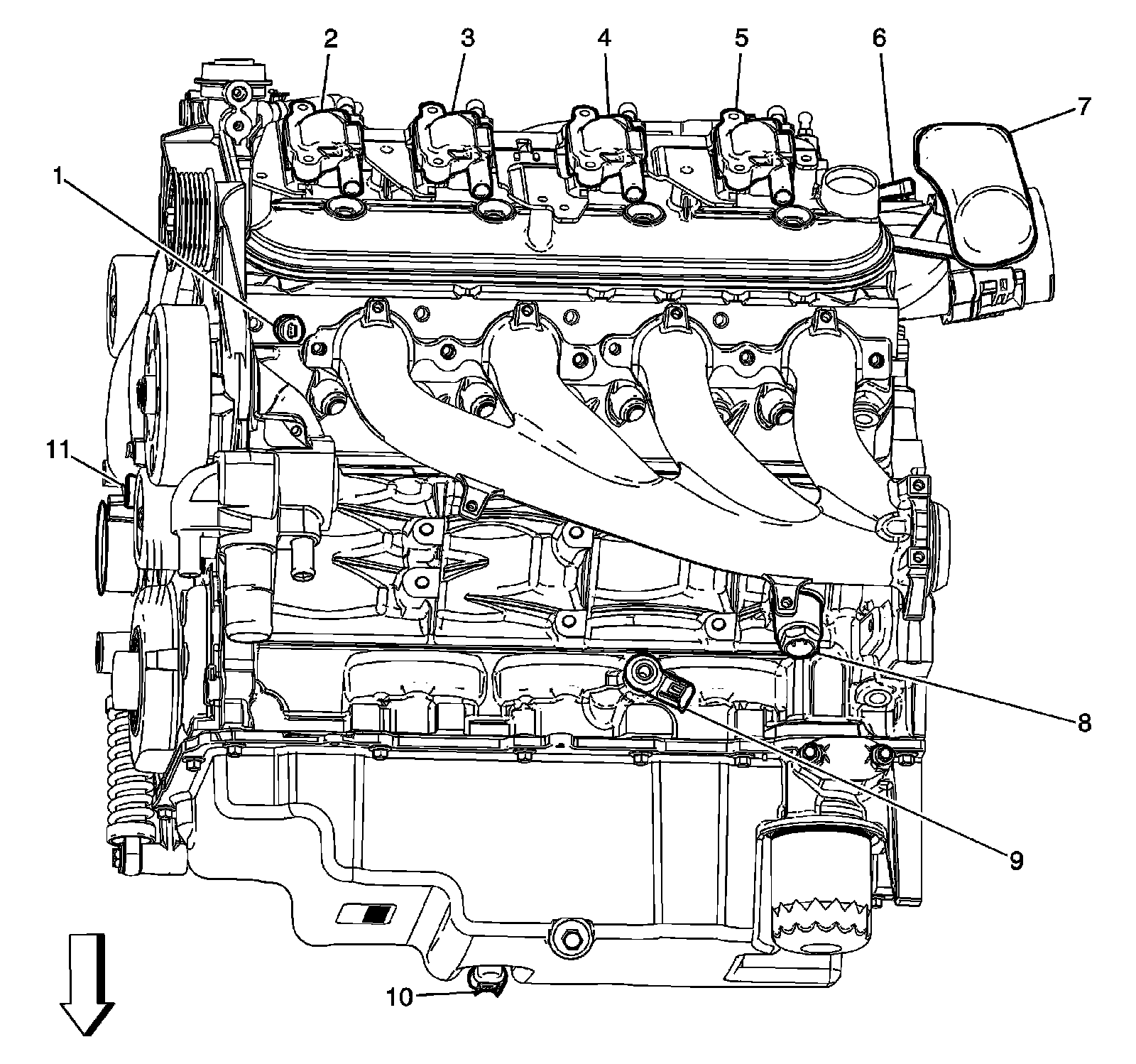

Front of Engine (LS4)

Front Of Engine:

Factory service manual diagram



1 - Engine Coolant Temperature (ECT) Sensor
2 - Ignition Coil 1
3 - Ignition Coil 3
4 - Ignition Coil 5
5 - Ignition Coil 7
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Throttle Body
8 - Engine Coolant Heater
9 - Knock Sensor (KS) Bank 1
10 - Engine Oil Level Switch
11 - Camshaft Position (CMP) Sensor

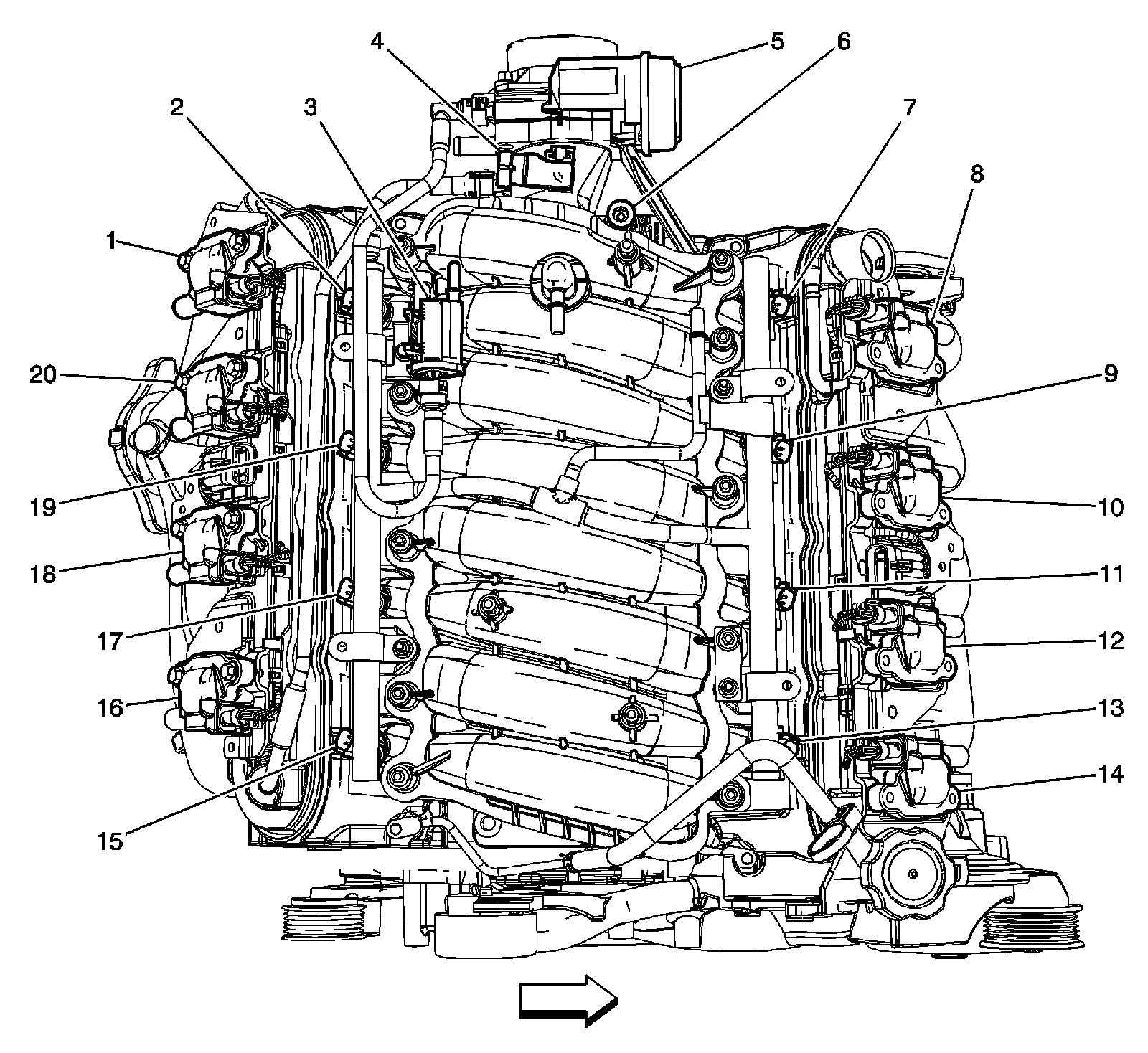

Top of Engine (LS4)

Top Of Engine:

Factory service manual diagram



1 - Ignition Coil 8
2 - Fuel Injector 8
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Throttle Body
6 - Engine Oil Pressure (EOP) Sensor
7 - Fuel Injector 7
8 - Ignition Coil 7
9 - Fuel Injector 5
10 - Ignition Coil 5
11 - Fuel Injector 3
12 - Ignition Coil 3
13 - Fuel Injector 1
14 - Ignition Coil 1
15 - Fuel Injector 2
16 - Ignition Coil 2
17 - Fuel Injector 4
18 - Ignition Coil 4
19 - Fuel Injector 6
20 - Ignition Coil 6

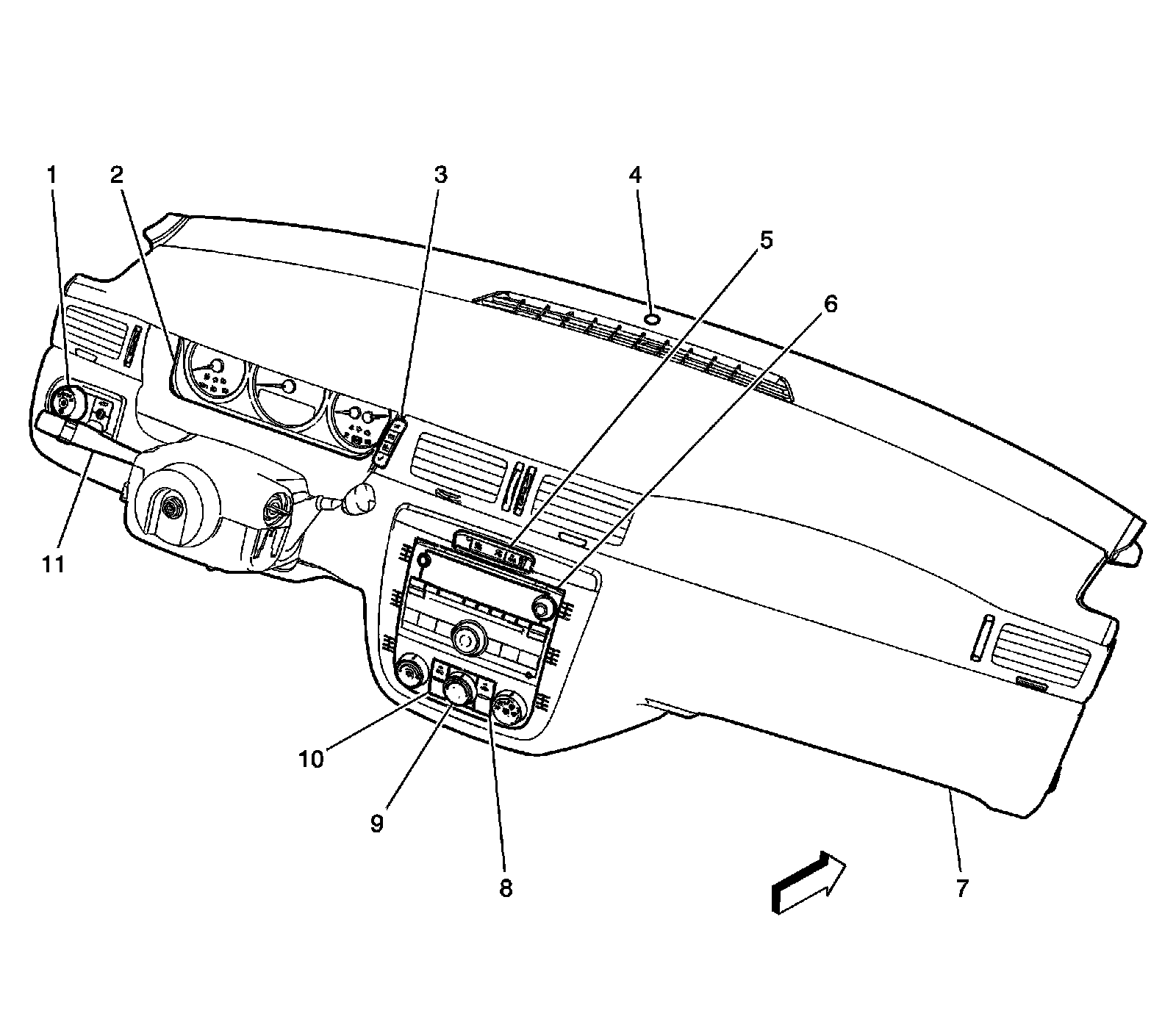

I/P Components

Factory service manual diagram



1 - Headlamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Inflatable Restraint Steering Wheel Module Coil
4 - Driver Information Center (DIC) Switch
5 - Ambient Light Sensor
6 - Inflatable Restraint Passenger Air Bag On/Off Indicator (Sedan w/o 9C1, 9C3)
7 - Radio
8 - Inflatable Restraint I/P Module
9 - I/P Trim Panel
10 - Heated Seat Switch - Passenger (KA1)
11 - HVAC Control Module
12 - Heated Seat Switch - Driver (KA1)
13 - Turn Signal/Multifunction Switch

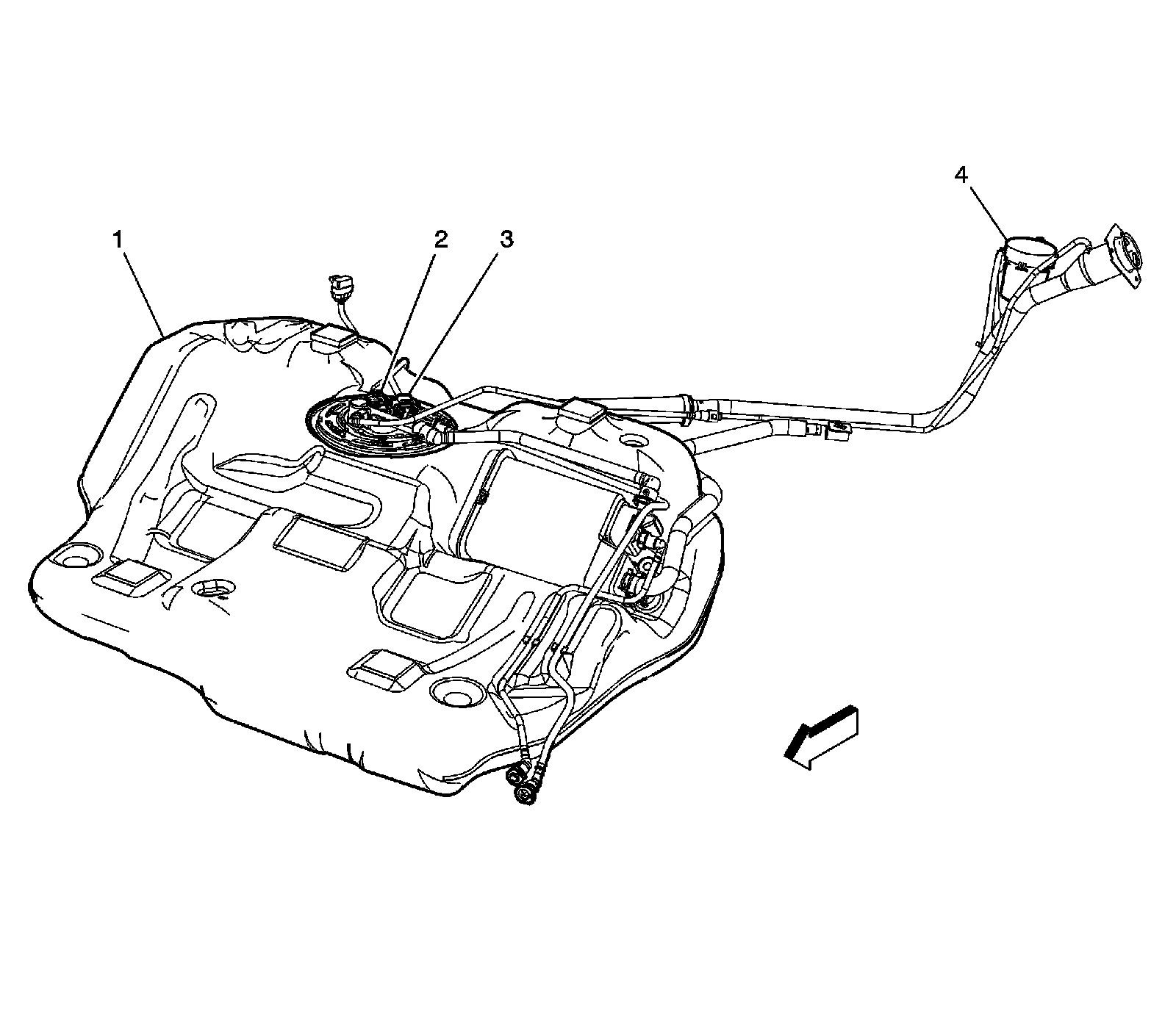

Fuel Tank Components

Factory service manual diagram



1 - Fuel Tank
2 - Fuel Pump and Sender Assembly
3 - Fuel Tank Pressure (FTP) Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid
