2007 Chevrolet Impala LS, 3.5 NFACTORY OEM SERVICE PROCEDURE

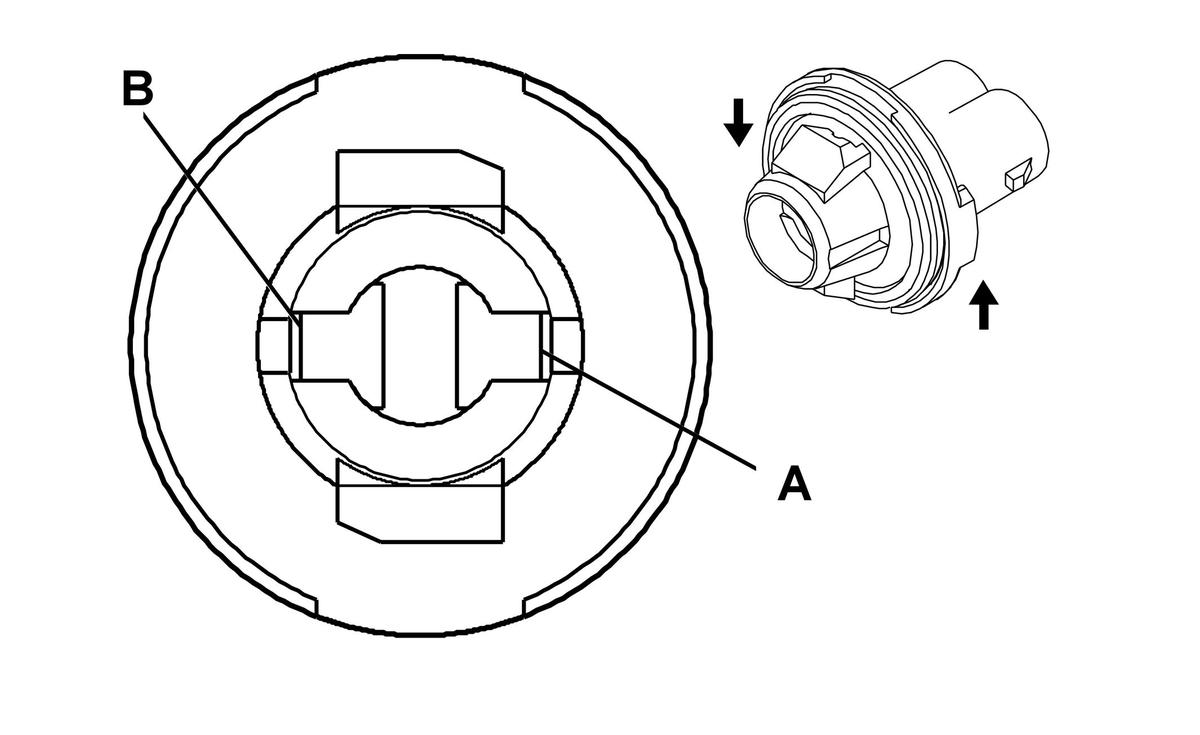

Backup Lamp Connector End View - Left
Backup Lamp - Left Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Backup Lamp - Left Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | L-GN | 24 | Backup Lamp Supply Voltage (Coupe) |
| BN | 24 | Backup Lamp Supply Voltage (Sedan) | |
| B | BK | 750 | Ground |
| BK | 750 | Ground (Sedan) |
