2007 Chevrolet Impala LS, 3.5 NFACTORY OEM SERVICE PROCEDURE

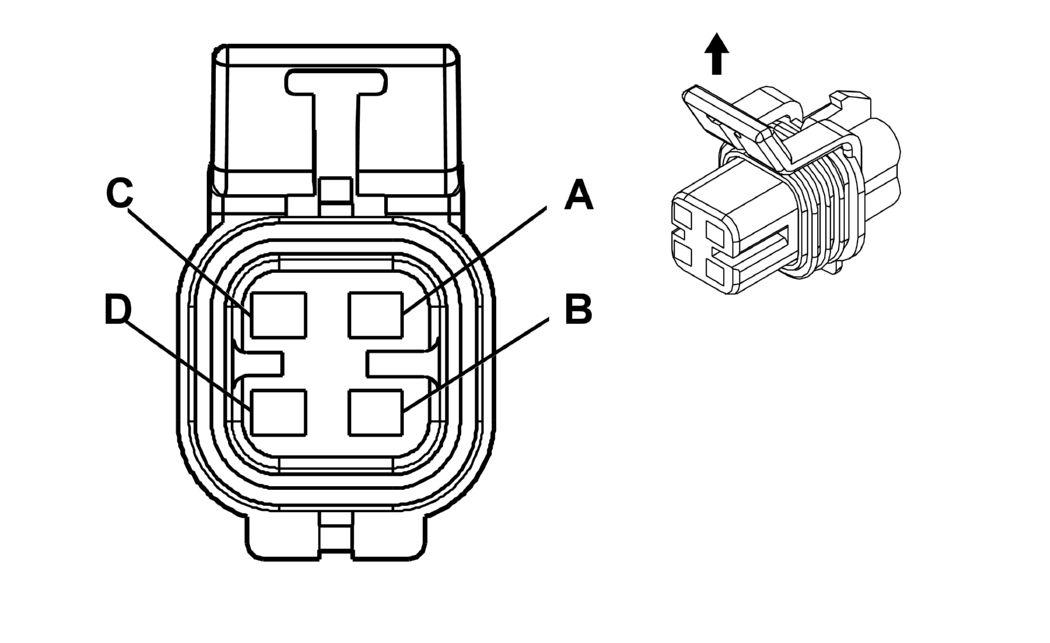

Heated Oxygen Sensor (HO2S) 1 Connector End View
Heated Oxygen Sensor (HO2S) 1 Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Heated Oxygen Sensor (HO2S) 1 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | TN/WH | 3111 | HO2S Low Signal Sensor 1 |
| B | PU/WH | 3110 | HO2S High Signal Sensor 1 |
| C | GY/WH | 3113 | HO2S Heater Low Control Sensor 1 |
| D | PK/BK | 5293 | Ignition 1 Voltage |
