2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE

Powertrain Management: Locations



Engine Controls Component Views

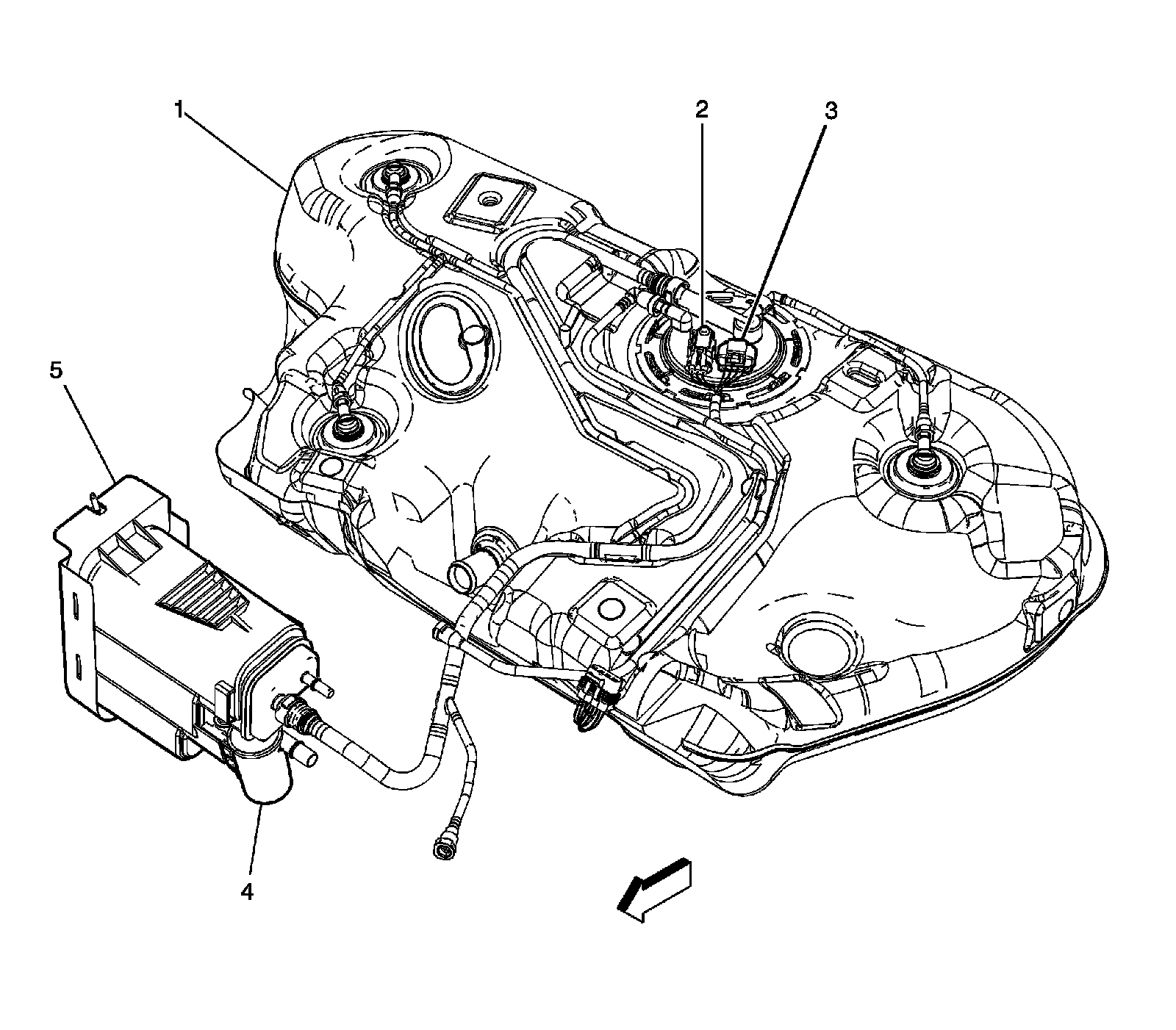

Fuel Tank Components

Factory service manual diagram



1 - Fuel Tank
2 - Fuel Pump and Sender Assembly
3 - Fuel Tank Pressure Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Evaporative Emission (EVAP) Canister

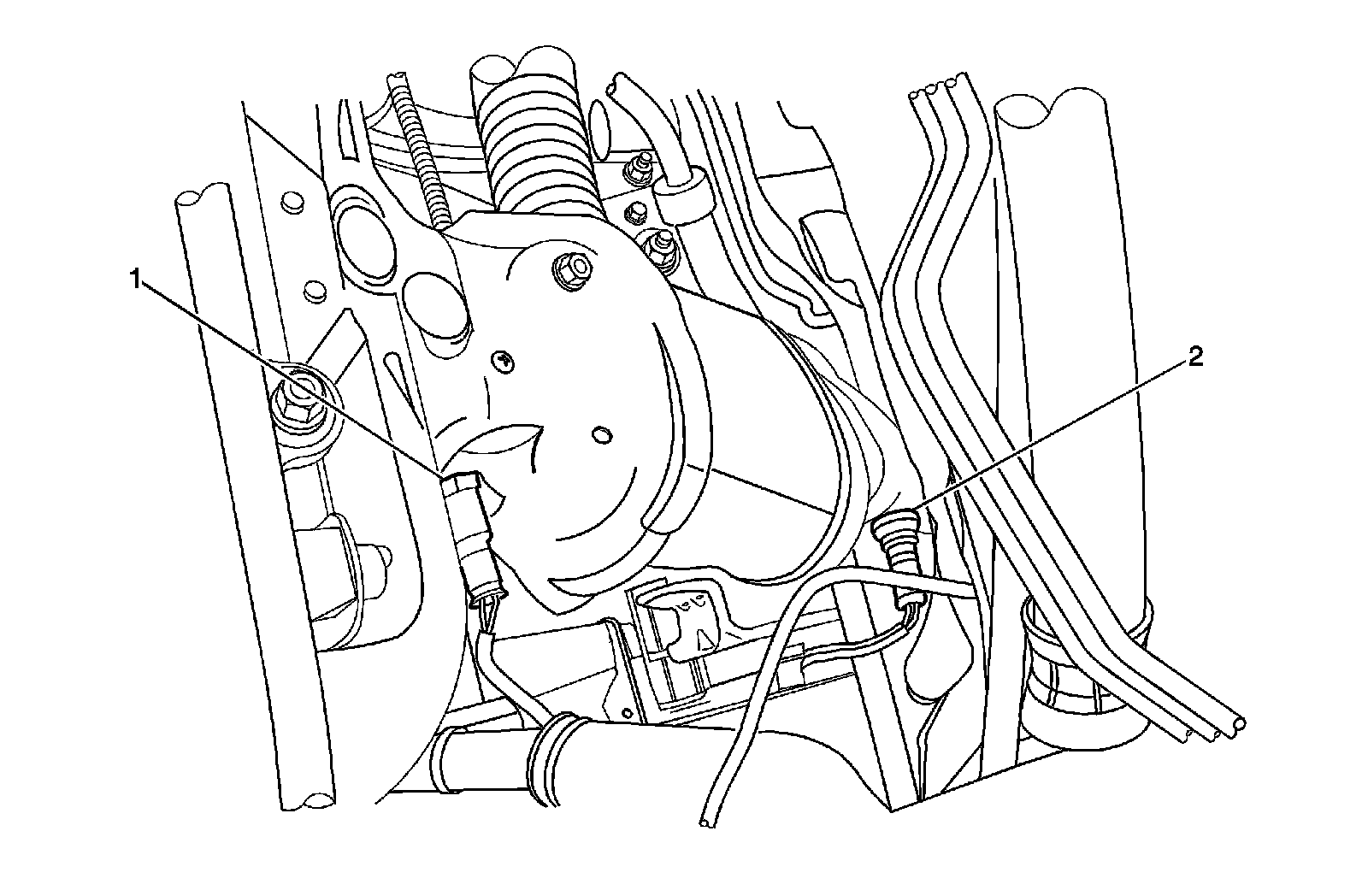

Rear of Engine - L61

Factory service manual diagram



1 - Heated Oxygen Sensor (HO2S) 1
2 - Heated Oxygen Sensor (HO2S) 2

Top Front of the Engine

Factory service manual diagram



1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Fuel Injector 4

Front of the Engine (L61)

Factory service manual diagram



1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Fuel Injector 4
6 - Evaporative Emission (EVAP) Canister Purge Solenoid
7 - Camshaft Position (CMP) Sensor - Intake
8 - Knock Sensor (KS)
9 - Engine Oil Pressure (EOP) Switch
10 - Crankshaft Position (CKP) Sensor
11 - Starter Solenoid
12 - Starter
13 - Intake Manifold

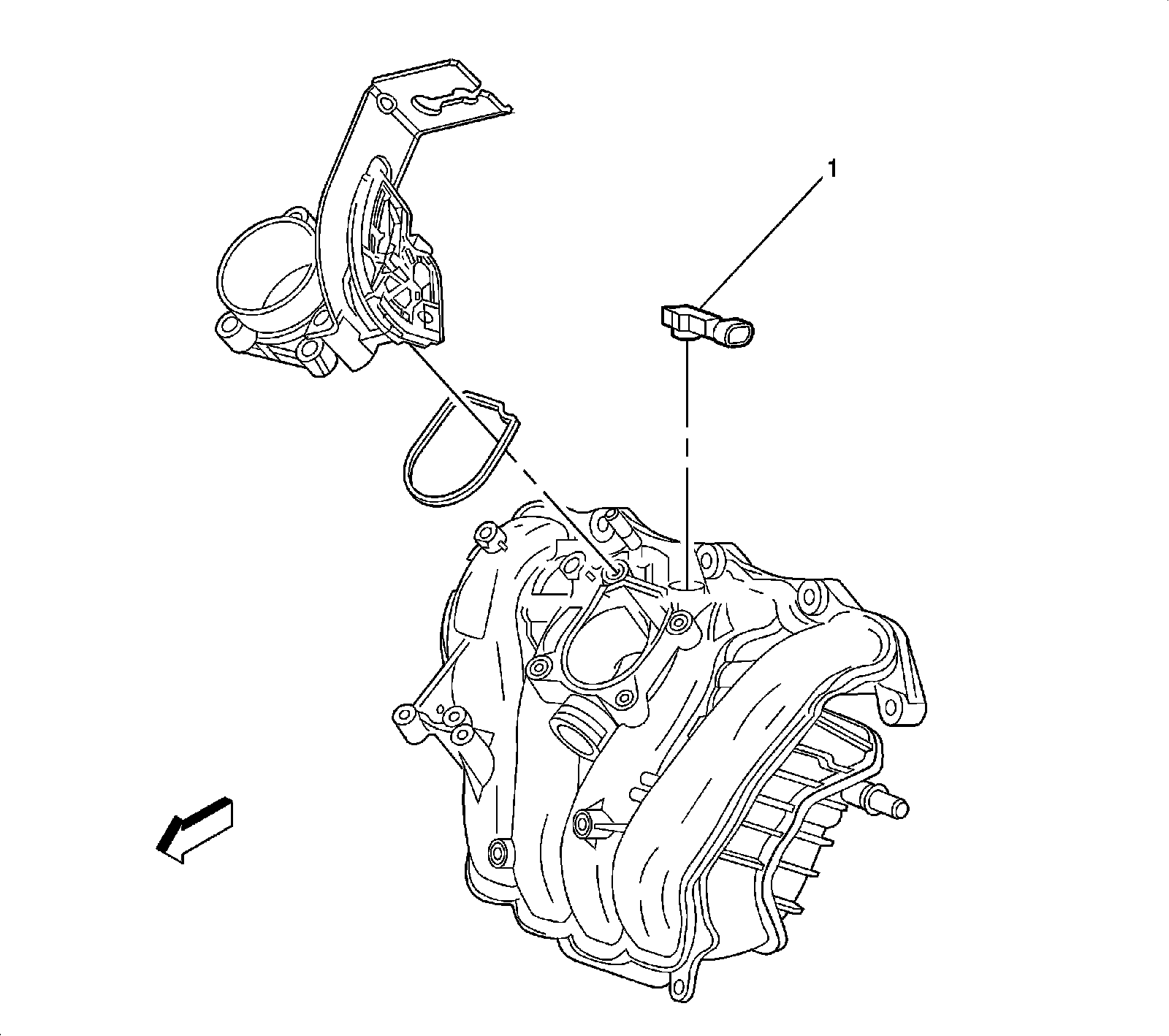

Manifold Absolute Pressure (MAP) Sensor (L61)

Factory service manual diagram



1 - Manifold Absolute Pressure (MAP) Sensor

Rear of the Engine Block (L61)

Factory service manual diagram



1 - Engine Coolant Temperature (ECT) Sensor
2 - Engine Block

Front of the Engine (L61)

Factory service manual diagram



1 - Throttle Actuator Control (TAC) Module
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Engine Oil Pressure (EOP) Switch
4 - Crankshaft Position (CKP) Sensor
5 - Knock Sensor (KS)
6 - Starter
7 - Starter Solenoid

Left Side of the Engine Compartment

Factory service manual diagram



1 - Transmission Control Module (TCM) (MN5)
2 - LF Strut Tower
3 - Engine Control Module (ECM)
4 - Electronic Brake Control Module (EBCM) (JM4/JL9)
5 - Fuse Block - Underhood Bracket

Left Side View of Engine

Factory service manual diagram



1 - Ignition Coil Module 1
2 - Ignition Coil Module 2
3 - Ignition Coil Module 3

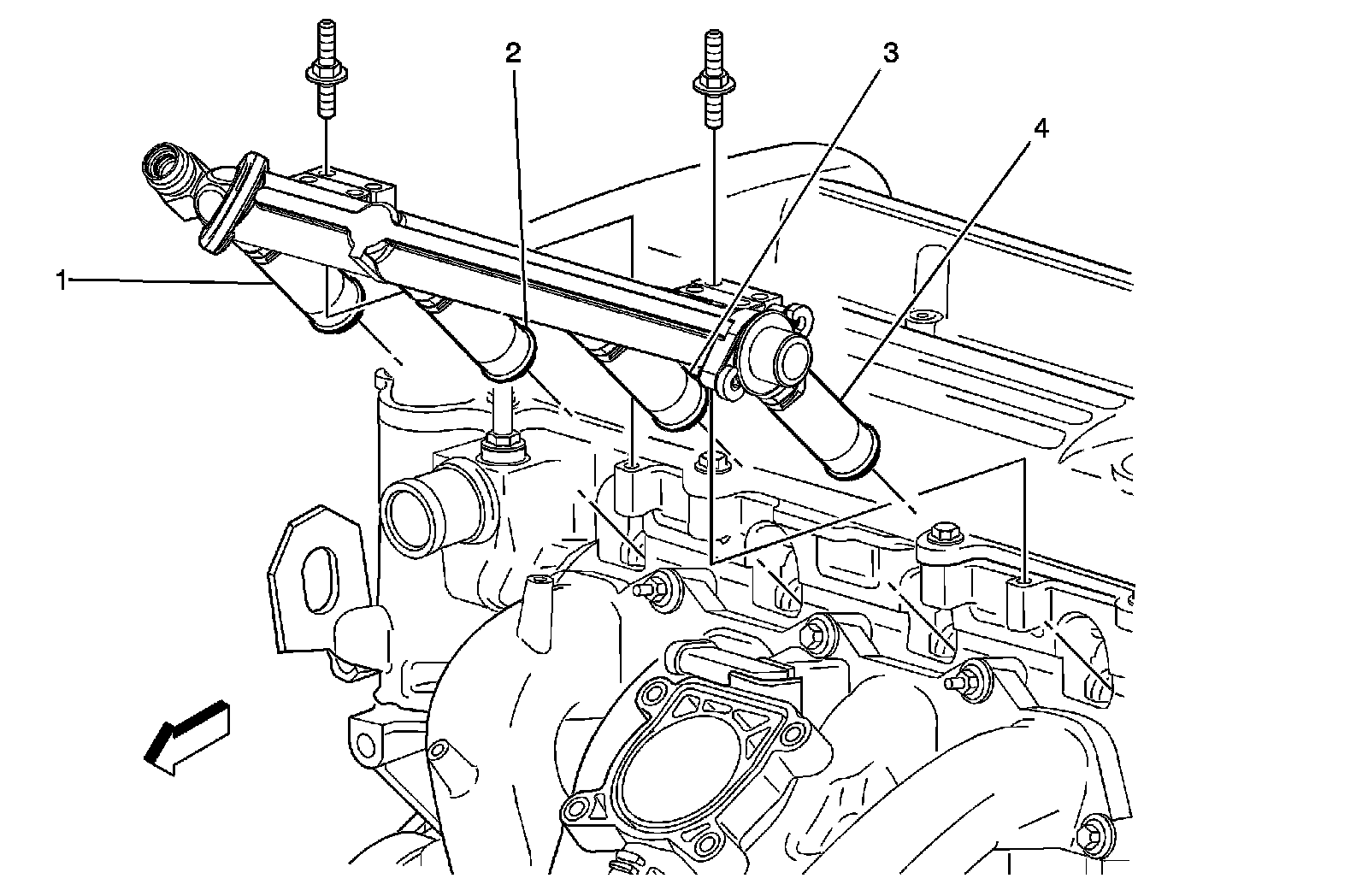

4 - Ignition Coil Module 4
5 - Fuel Rail
6 - Fuel Injector 1
7 - Fuel Injector 2
8 - Fuel Injector 3
9 - Fuel Injector 4
10 - Throttle Actuator Control (TAC) Module

Mass Air Flow (MAF)/Inlet Air Temperature (IAT)
Sensor


Factory service manual diagram



1 - Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor

Pedal Assemblies

Pedal Assemblies:

Factory service manual diagram



1 - Clutch Pedal Position (CPP) Switch (M86)
2 - Clutch Start Switch (M86)
3 - Stop Lamp / Torque Converter Clutch (TCC) Switch / Cruise Release Switch
4 - Stop Lamp Switch
5 - Accelerator Pedal Position (APP) Sensor
6 - Floor Panel
