2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair

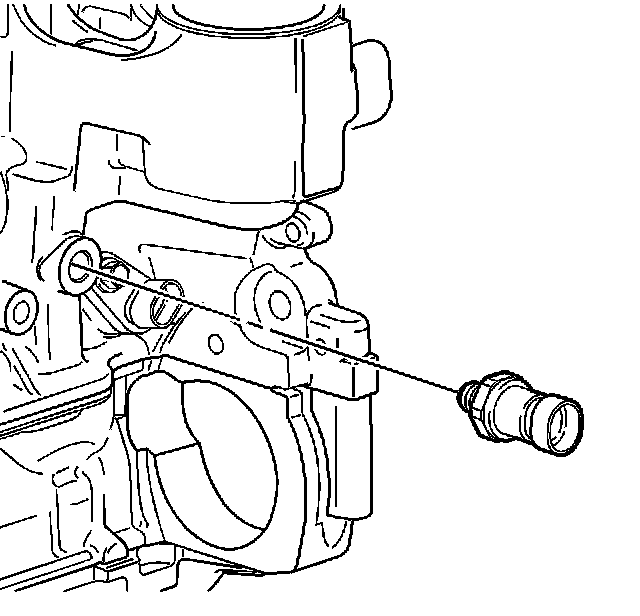

Engine Oil Pressure Sensor and/or Switch Replacement
Removal Procedure
1. Remove the starter.
2. Disconnect the oil pressure sensor electrical connector (5).
3. Remove the engine oil pressure sensor.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the engine oil pressure sensor.
Tighten the sensor to 22 N.m (16 lb ft).
2. Connect the oil pressure sensor electrical connector (5).
3. Install the starter.
