2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE
Fuel Tank Pressure Sensor: Service and Repair
Fuel Tank Pressure Sensor Replacement
Removal Procedure
1. Remove the fuel tank.

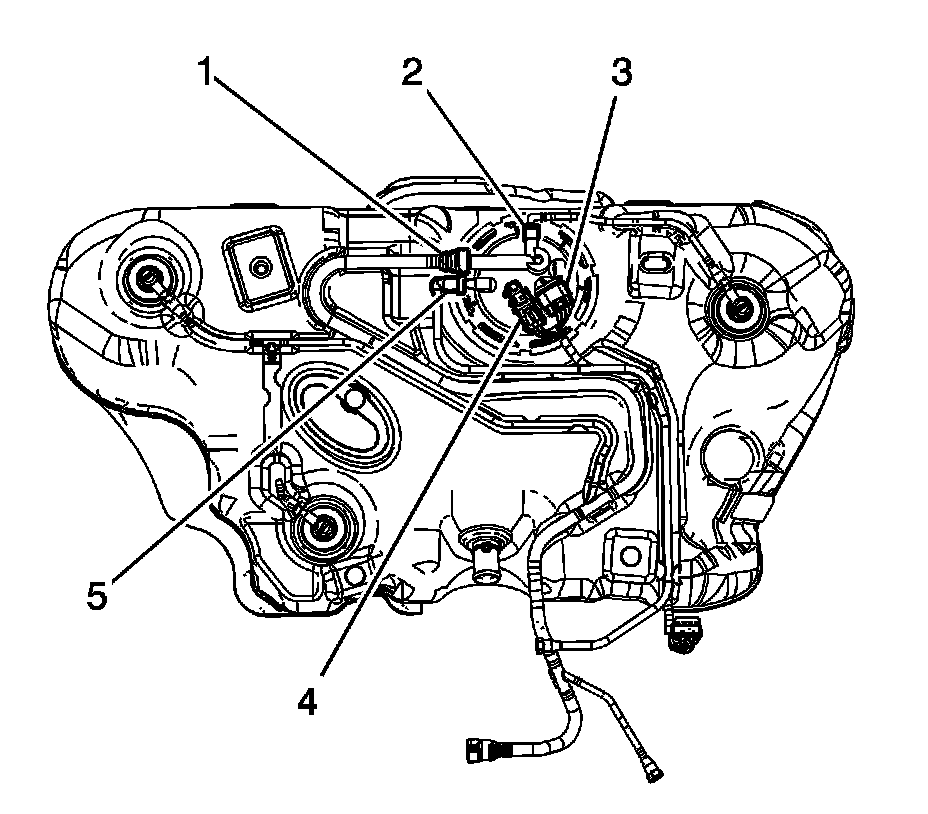

2. Disconnect the fuel pressure sensor electrical connector (4).

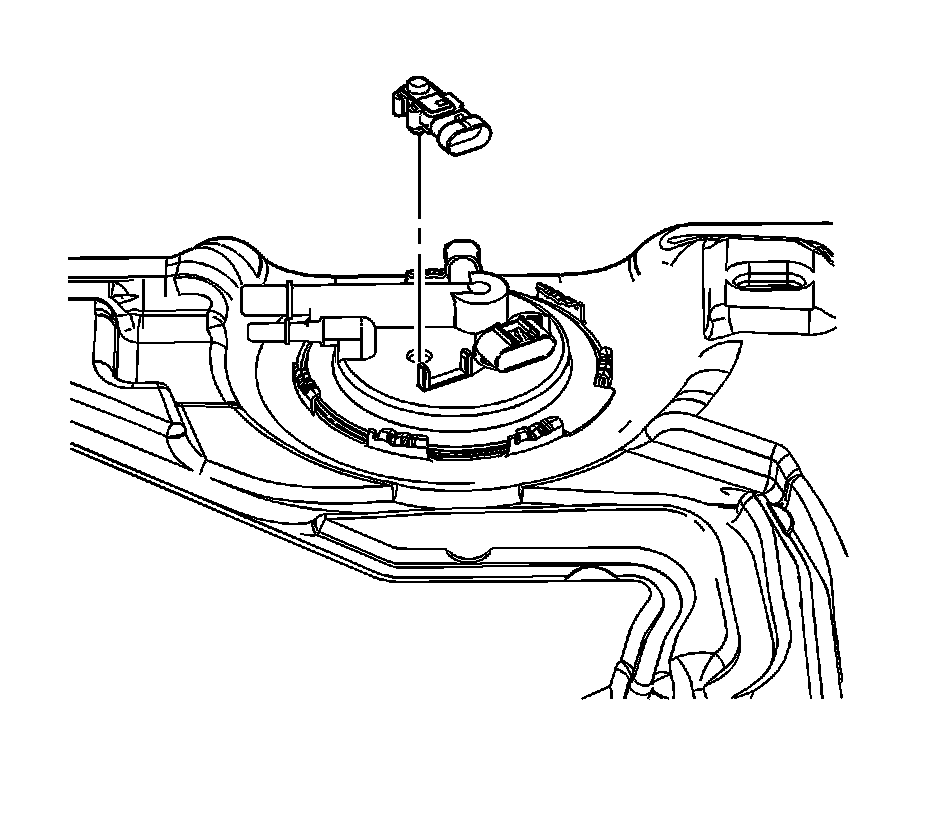

3. Position 2 flat-bladed screwdrivers, one on each side of the sensor, near the vacuum port.
4. Using the screwdrivers as leverage, carefully pry up in order to release the sensor from the module.
Installation Procedure
1. Install the fuel tank pressure sensor to the module. Ensure that the sensor grommet is fully seated in the module.
2. Connect the fuel pressure sensor electrical connector (4).
3. Install the fuel tank.
