2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
Fuel Level Sensor Replacement
Removal Procedure
Caution: Refer to Gasoline/Gasoline Vapors Caution.
1. Remove the fuel pump module.

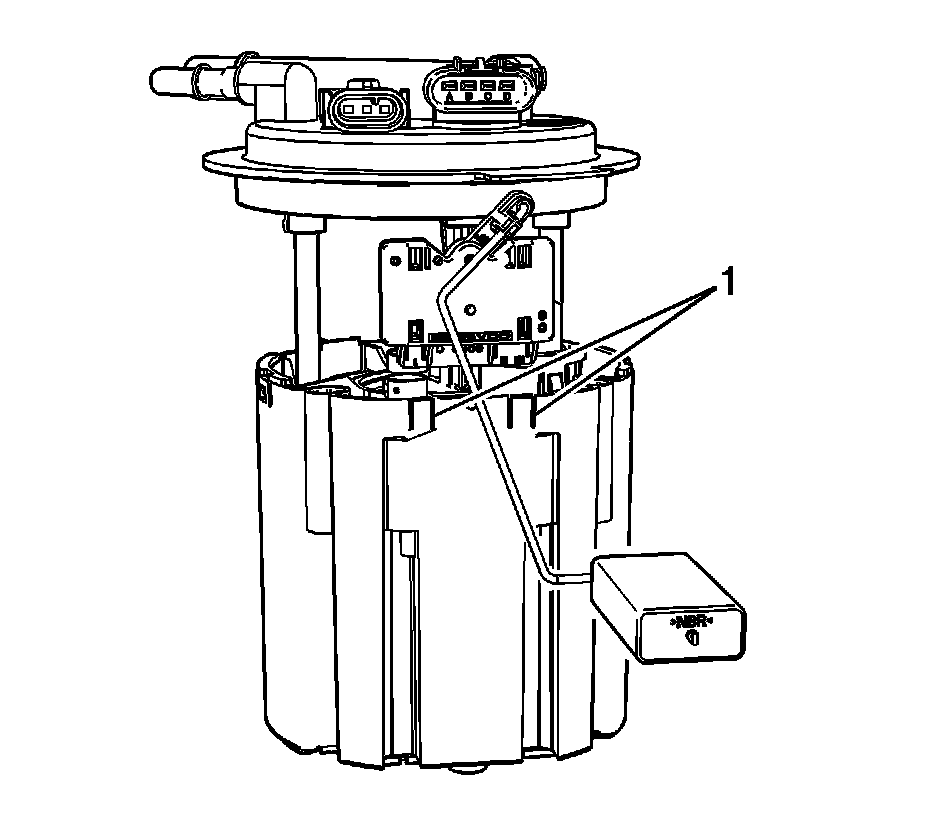

2. Release the retaining tabs (2) on the reservoir body and begin to slide the level sensor out away from the reservoir.
3. Carefully slide the level sensor the rest of the way out of the reservoir.
Installation Procedure
1. Carefully slide the fuel level sensor into the slots on the reservoir.
2. Slide the sensor down until the retaining tabs (2) engage the sensor.
3. Install the fuel pump module.
