2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE
Electronic Throttle Control Module: Locations
Engine Controls Component Views
Front of the Engine (L61)
1 - Throttle Actuator Control (TAC) Module
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Engine Oil Pressure (EOP) Switch
4 - Crankshaft Position (CKP) Sensor
5 - Knock Sensor (KS)
6 - Starter
7 - Starter Solenoid

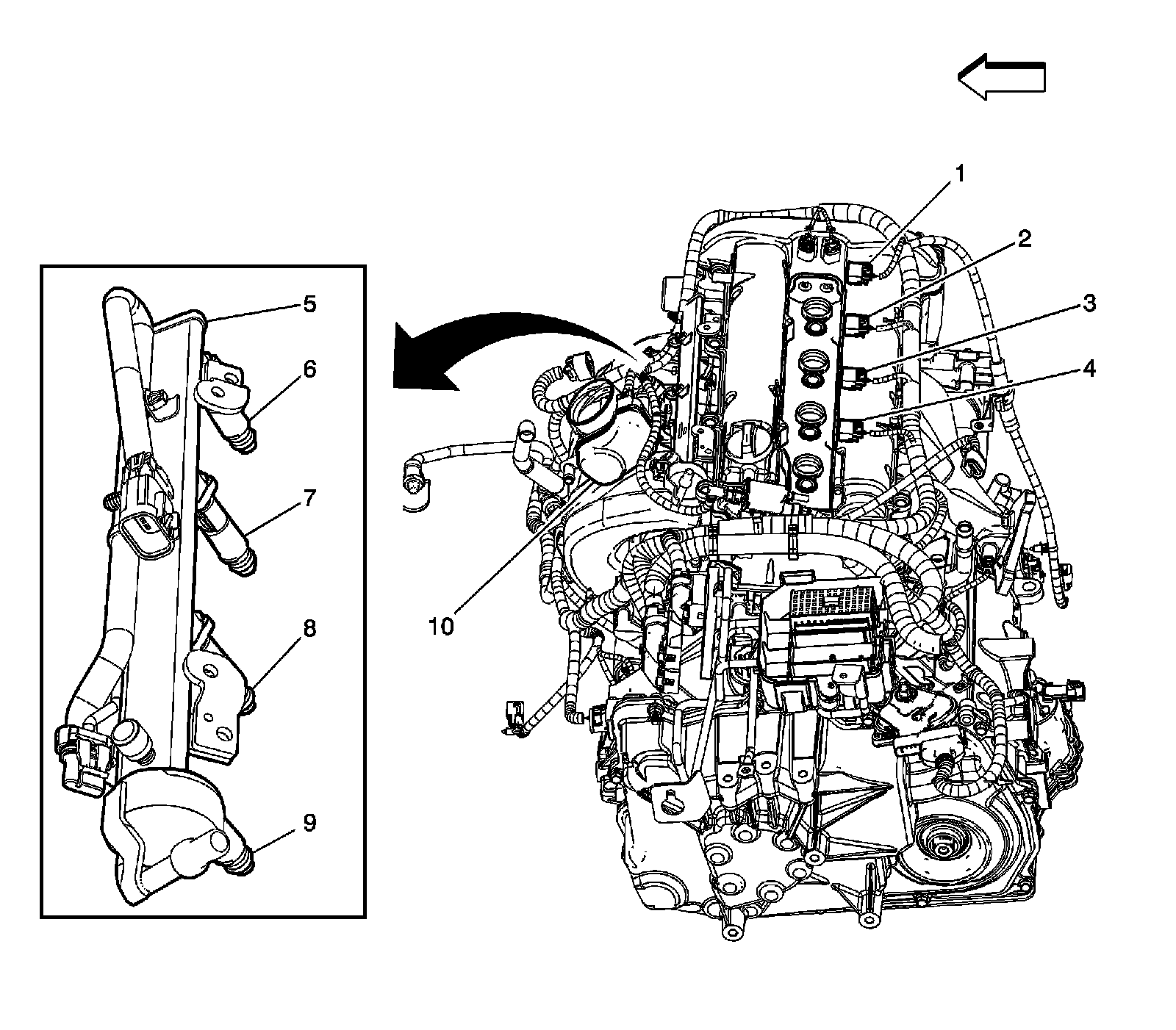

Left Side View of Engine
1 - Ignition Coil Module 1
2 - Ignition Coil Module 2
3 - Ignition Coil Module 3
4 - Ignition Coil Module 4
5 - Fuel Rail
6 - Fuel Injector 1
7 - Fuel Injector 2
8 - Fuel Injector 3
9 - Fuel Injector 4
10 - Throttle Actuator Control (TAC) Module
