2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Service and Repair

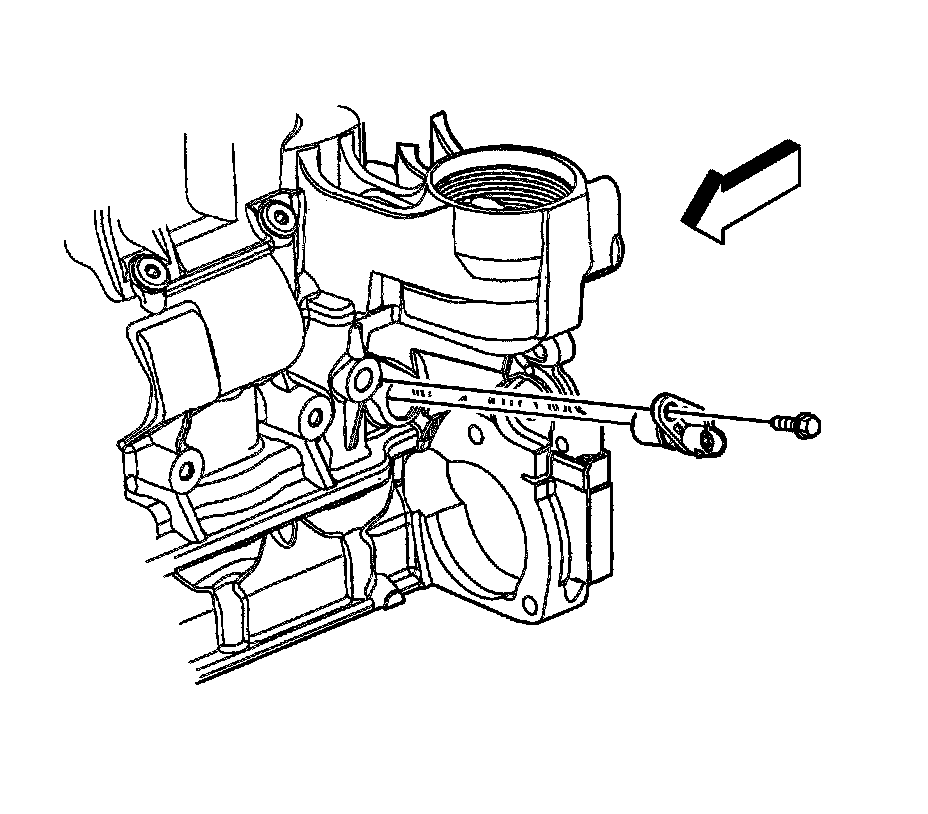

Crankshaft Position Sensor Replacement
Removal Procedure
1. Remove the starter.
2. Disconnect the crankshaft position (CKP) sensor electrical connector.
3. Remove the CKP sensor bolt.
4. Remove the CKP sensor.
Installation Procedure
1. Inspect the CKP sensor O-ring and lubricate with a mineral based grease.
2. Gently insert the CKP sensor into the block.
Notice: Refer to Fastener Notice.
3. Install the CKP sensor bolt.
Tighten the bolt to 10 N.m (89 lb in).
4. Connect the CKP sensor electrical connector.
5. Install the starter.
6. Perform the CKP system variation learn procedure. Refer to Crankshaft Position System Variation Learn.
