2007 Chevrolet HHR L4-2.2LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Service and Repair
Camshaft Position Sensor Replacement - Intake
Removal Procedure
1. Remove the air cleaner assembly.

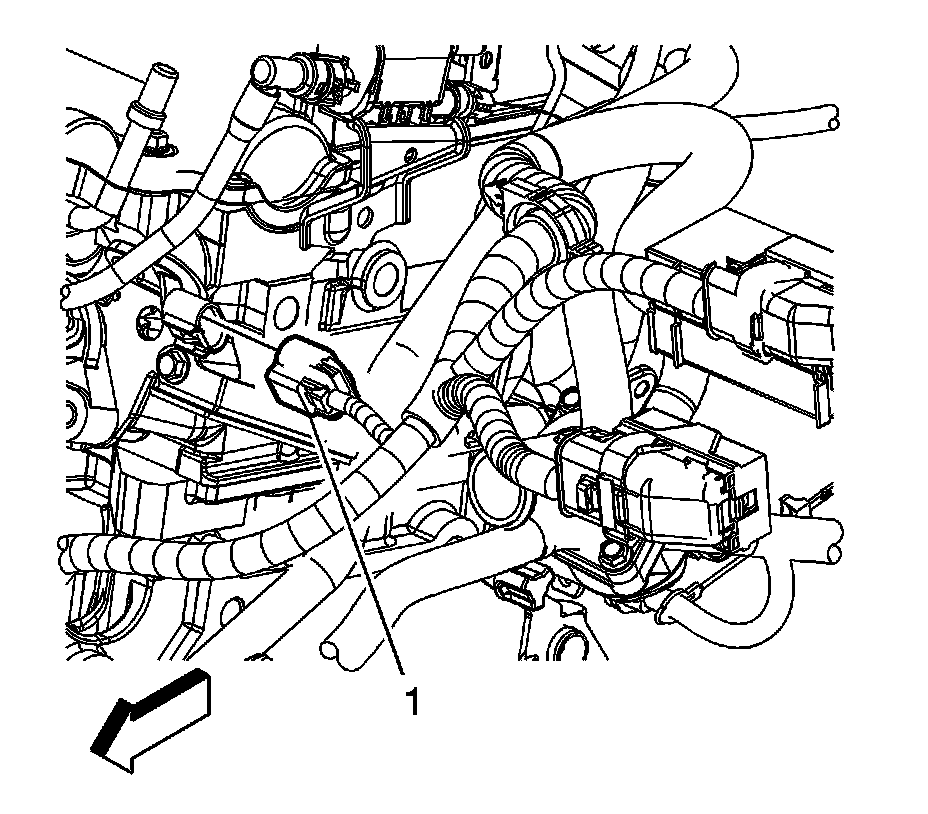

2. Disconnect the engine wiring harness electrical connector (1) from the intake camshaft position (CMP) sensor.

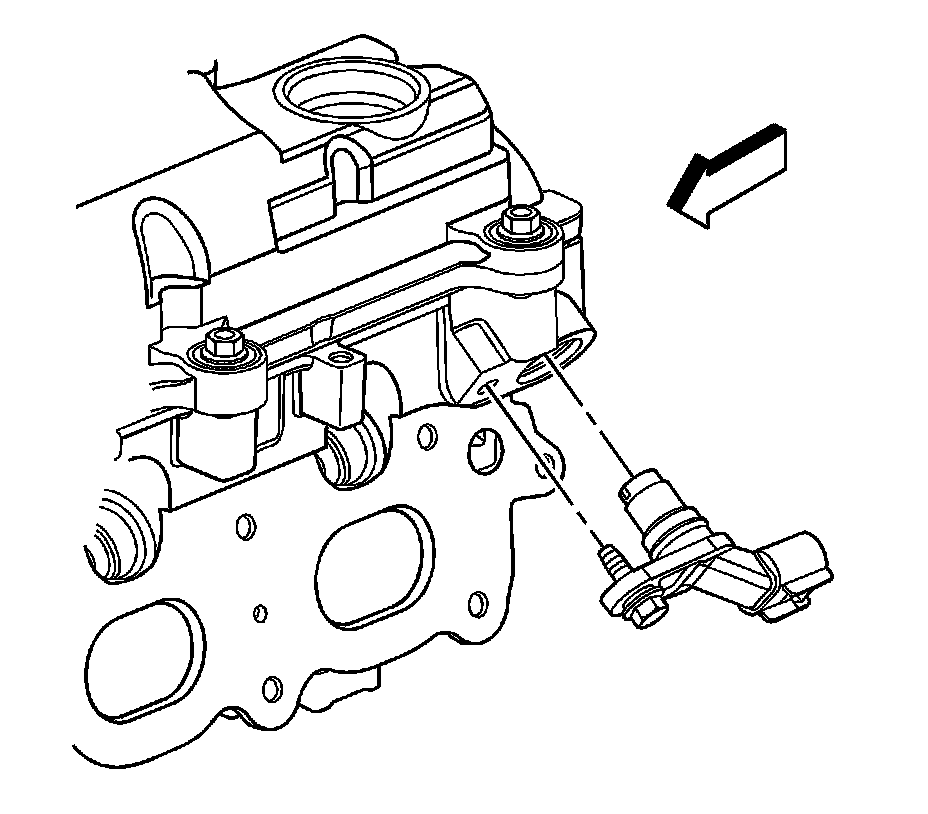

3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.
Installation Procedure
Important: Inspect the CMP sensor for damage, replace as necessary.
1. Lubricate the CMP sensor O-ring seal with clean engine oil.
2. Install the CMP sensor.
Notice: Refer to Fastener Notice.
3. Install the CMP sensor bolt.
Tighten the bolt to 10 N.m (89 lb in).
4. Connect the engine wiring harness electrical connector (1) to the intake CMP sensor.
5. Install the air cleaner assembly.
