2007 Chevrolet Express 2500 V8-4.8LFACTORY OEM SERVICE PROCEDURE
Timing Component Alignment Marks: Locations

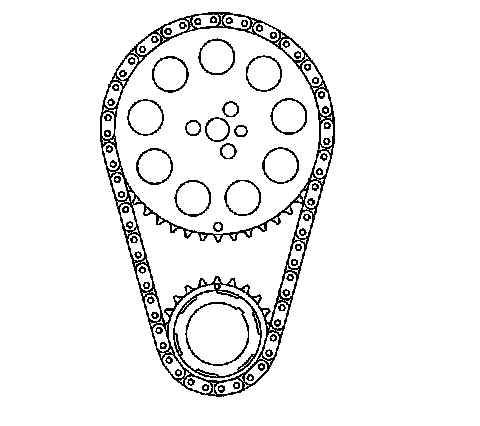

Timing Component Alignment Marks
Look to ensure the crankshaft sprocket alignment mark is at the 12 o'clock position and the camshaft sprocket alignment mark is at the 6 o'clock position.
Look to ensure the crankshaft sprocket alignment mark is at the 12 o'clock position and the camshaft sprocket alignment mark is at the 6 o'clock position.
