2007 Chevrolet Express 2500 V8-4.8LFACTORY OEM SERVICE PROCEDURE
HVAC Control Assembly Replacement
HVAC Control Assembly Replacement
Removal Procedure
1. Remove the I/P cluster trim plate.

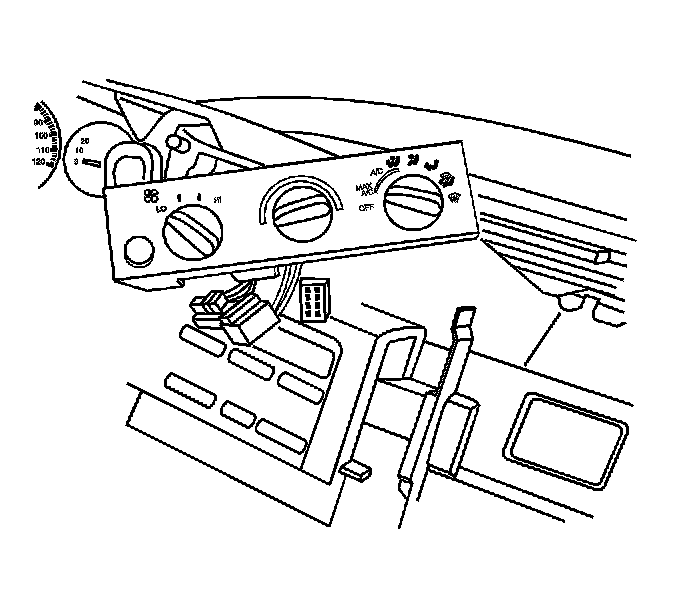

2. Remove the retaining screw from the HVAC control assembly.
3. Pivot the HVAC control assembly to disengage the locking tab on the right side.

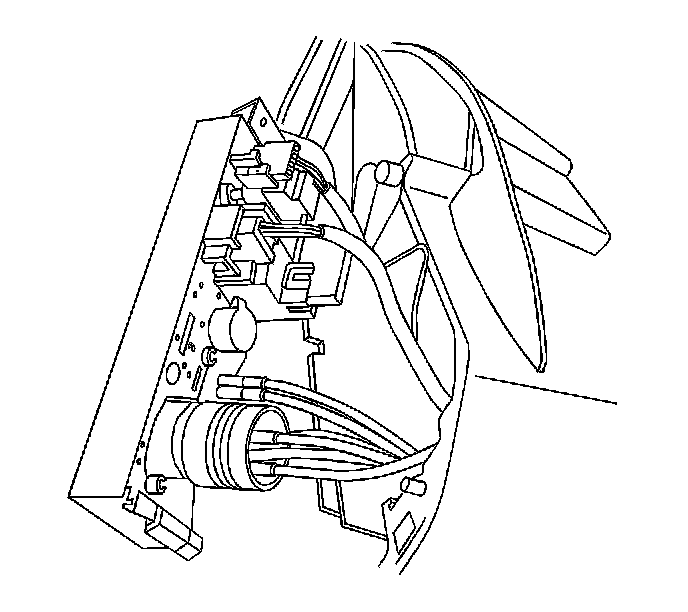

4. Disconnect the electrical connectors.
5. Disconnect the vacuum connector.
6. Remove the HVAC control assembly.
Installation Procedure
1. Connect the vacuum connector.
2. Connect the electrical connectors.
3. Install the HVAC control assembly.
Notice: Refer to Fastener Notice.
4. Install the retaining screw to the HVAC control assembly.
Tighten the screw to 2 N.m (18 lb in).
5. Install the I/P cluster trim plate.
